Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

17 part groups · 6 illustrations

Illustrations

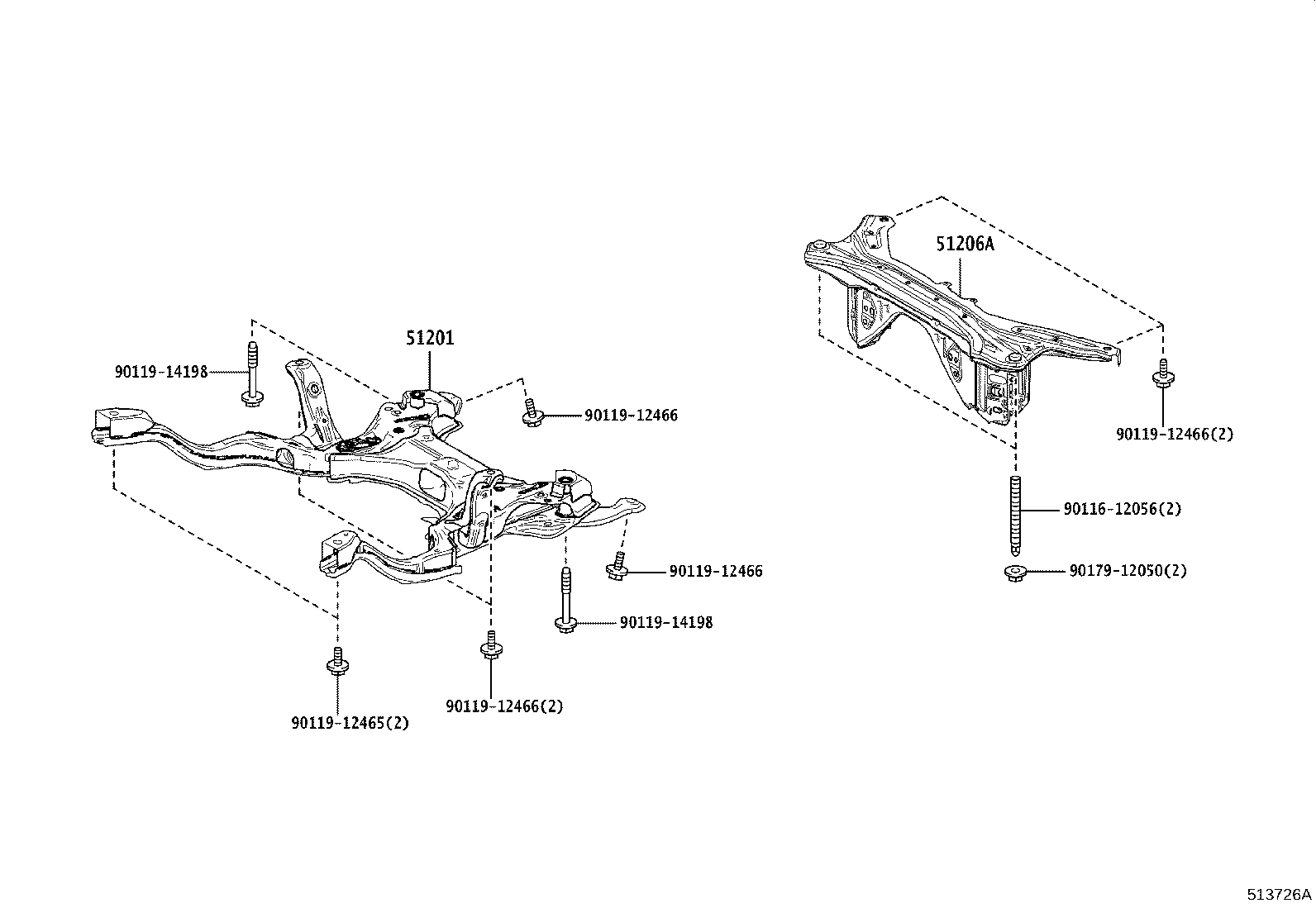

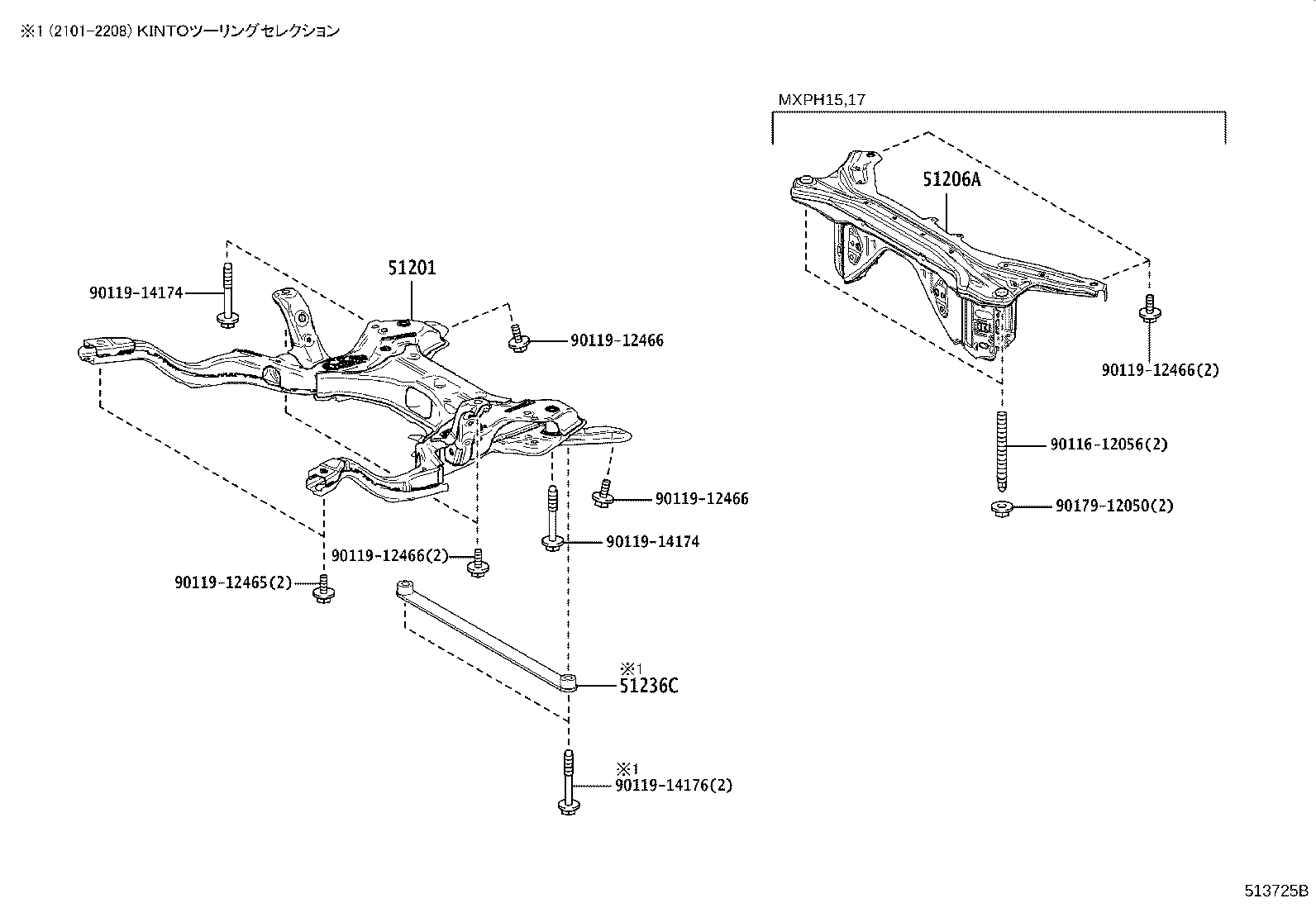

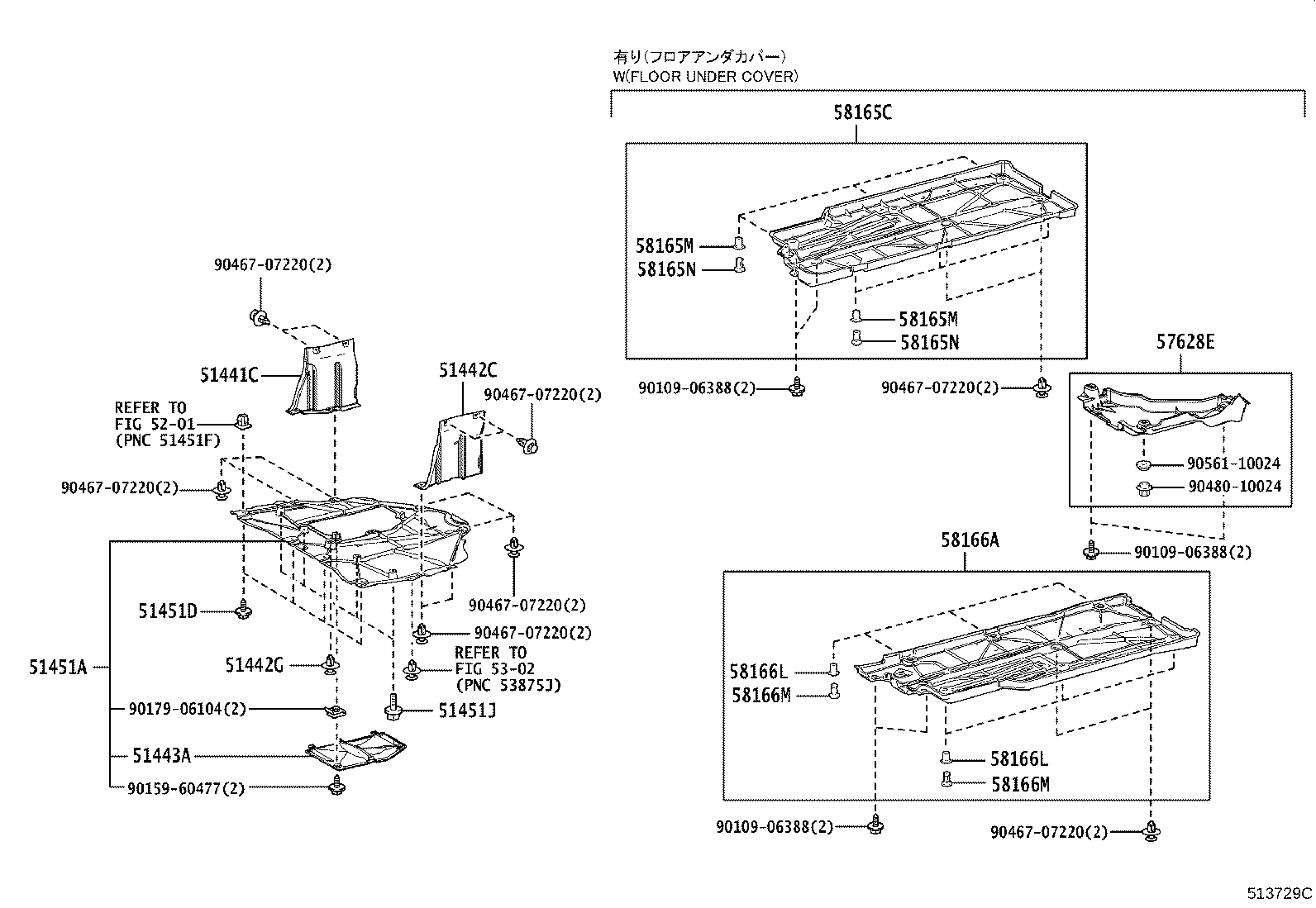

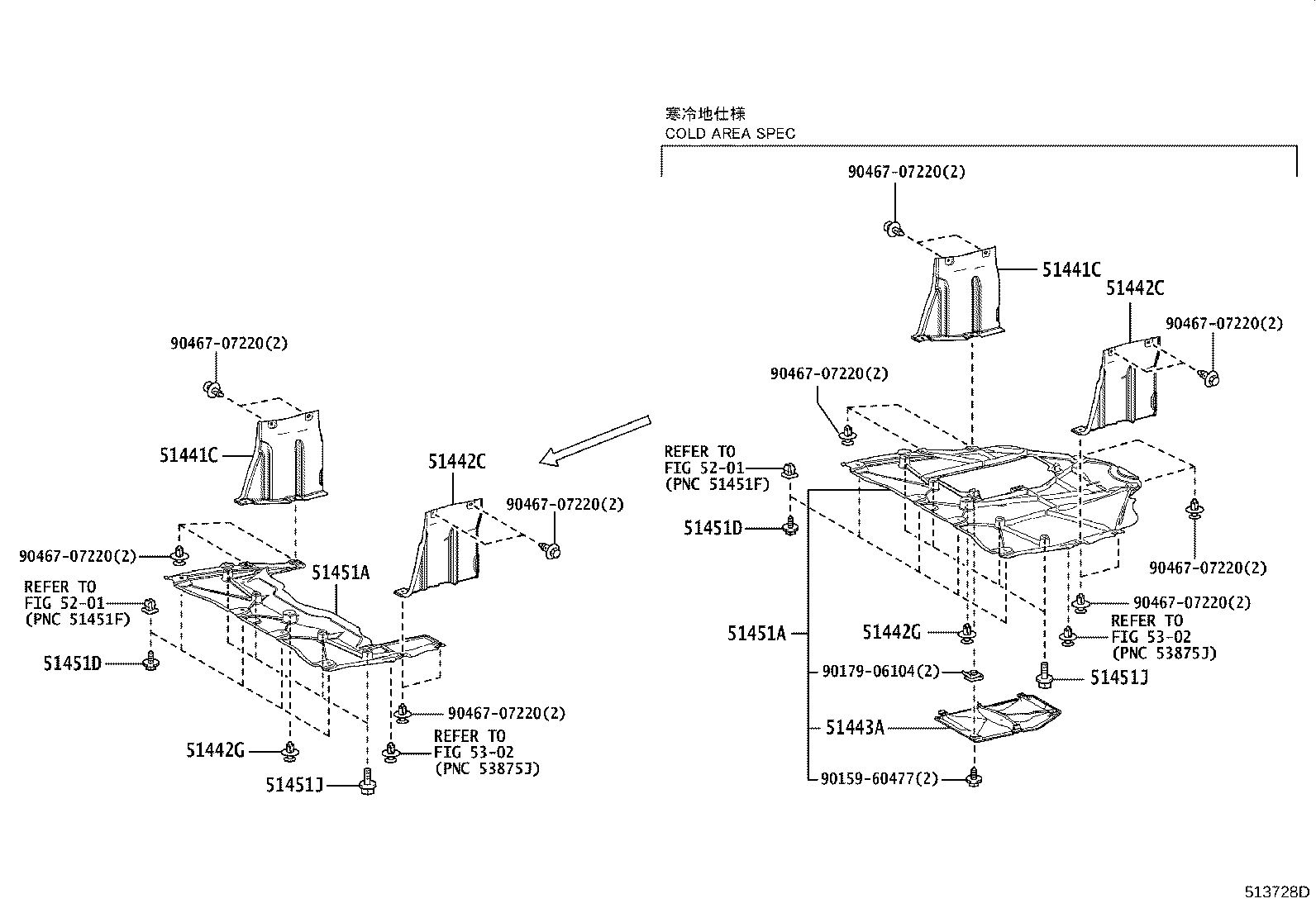

Figure 513724 513724 2020-02 → — Figure 513725B 513725B 2020-02 → — Figure 513726A 513726A 2020-03 → — Figure 513727B 513727B 2020-02 → — Figure 513728D 513728D 2020-02 → — Figure 513729C 513729C 2020-02 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51236C Plate, Frame Center Crossmember
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51442G Clip, Engine Under Cover, NO.1
51443A Cover, Engine Under, Rear
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451J Bolt, NO.1
57628E Cover, Rear Floor Side Member, LH
58165C Cover, Front Floor, RH
58165M Clip, Front Floor Cover, NO.1
58165N Clip, Front Floor Cover, NO.2
58166A Cover, Front Floor, LH
58166L Clip, Front Floor Cover, NO.1
58166M Clip, Front Floor Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
