Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

2 part groups · 4 illustrations

Illustrations

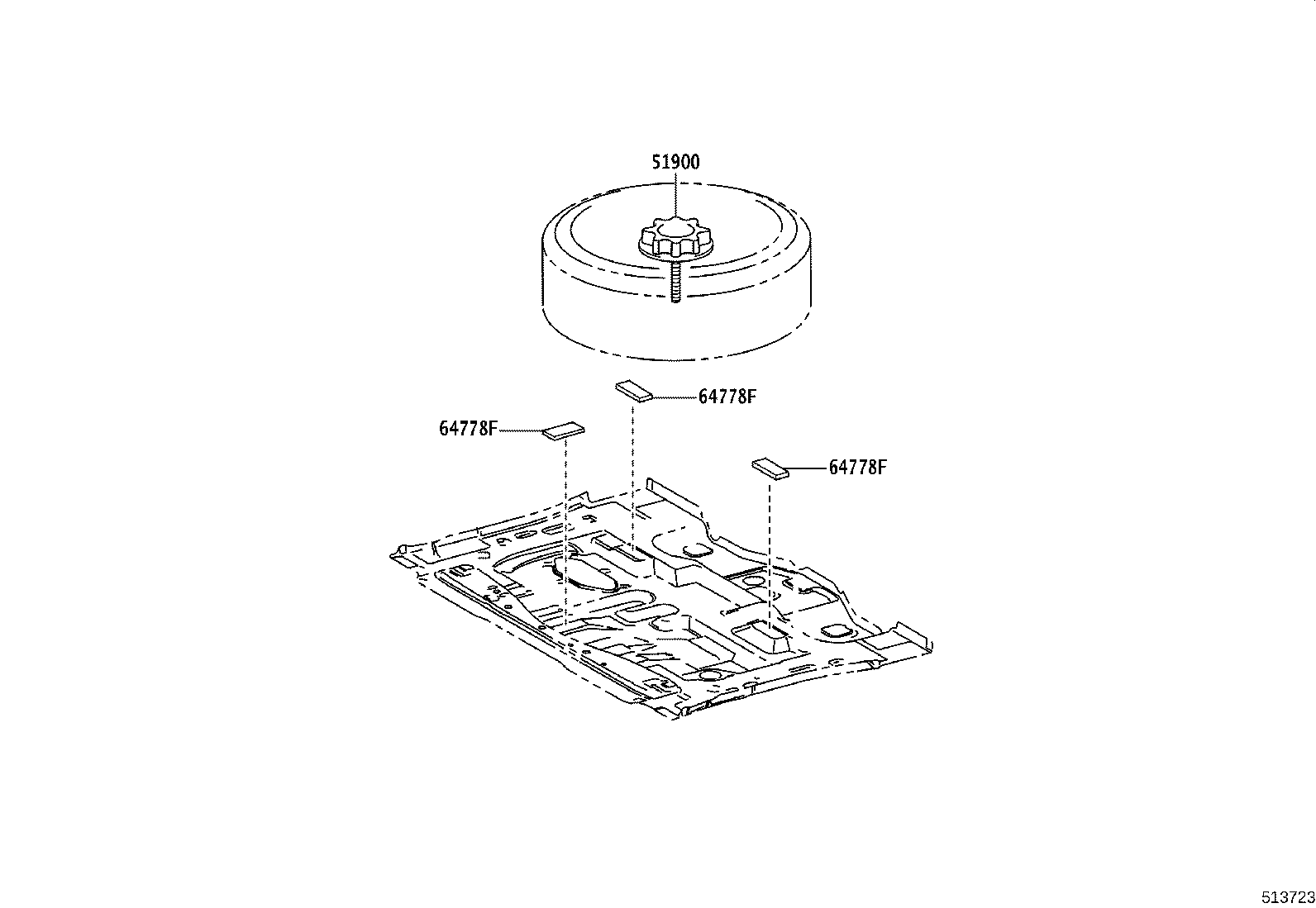

Figure 513722 513722 2020-02 → 2024-01 Figure 513722 513722 2020-02 → — Figure 513722 513722 2024-01 → — Figure 513723 513723 2020-03 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
64778F Protector, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
