Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 6 illustrations

Illustrations

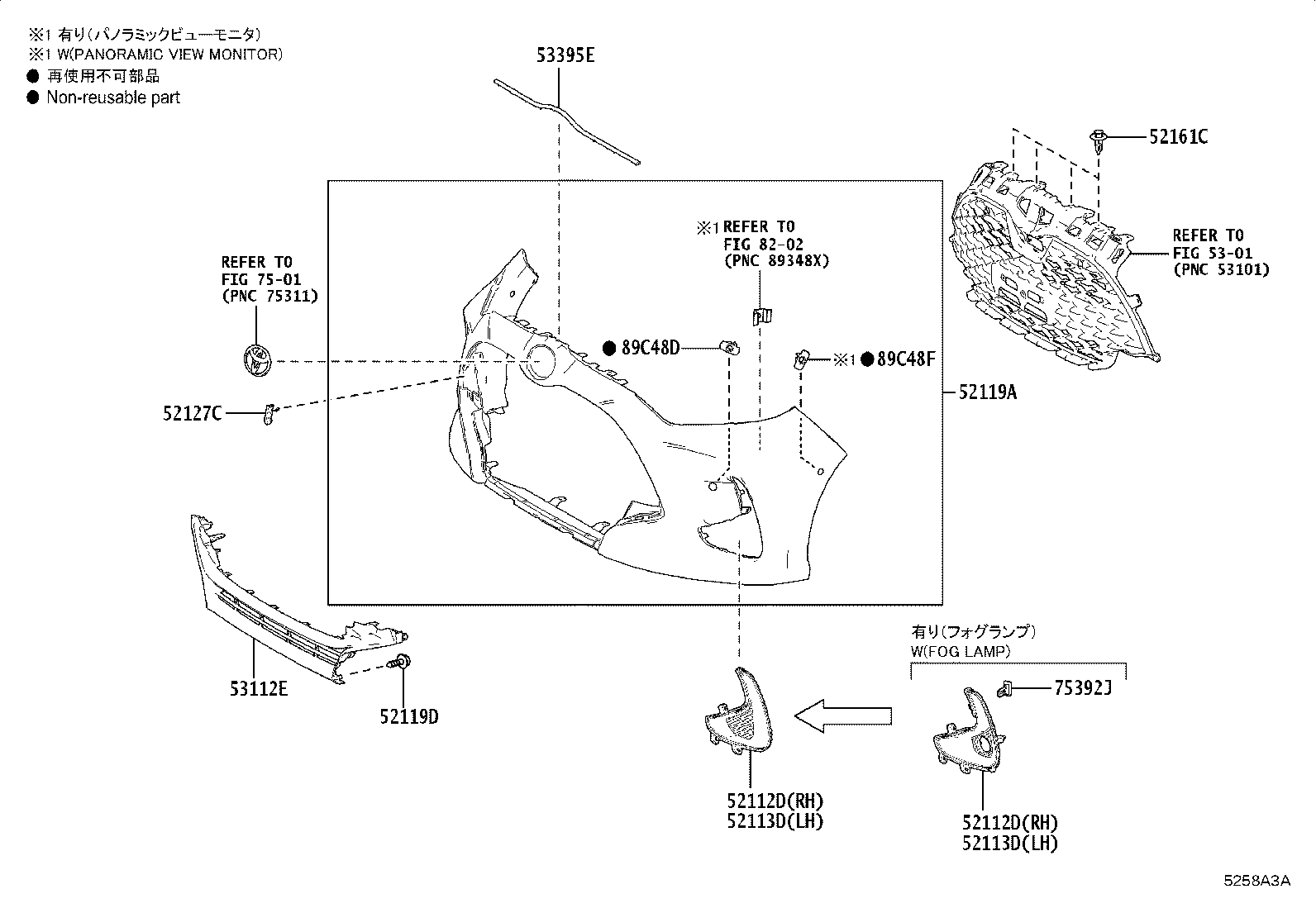

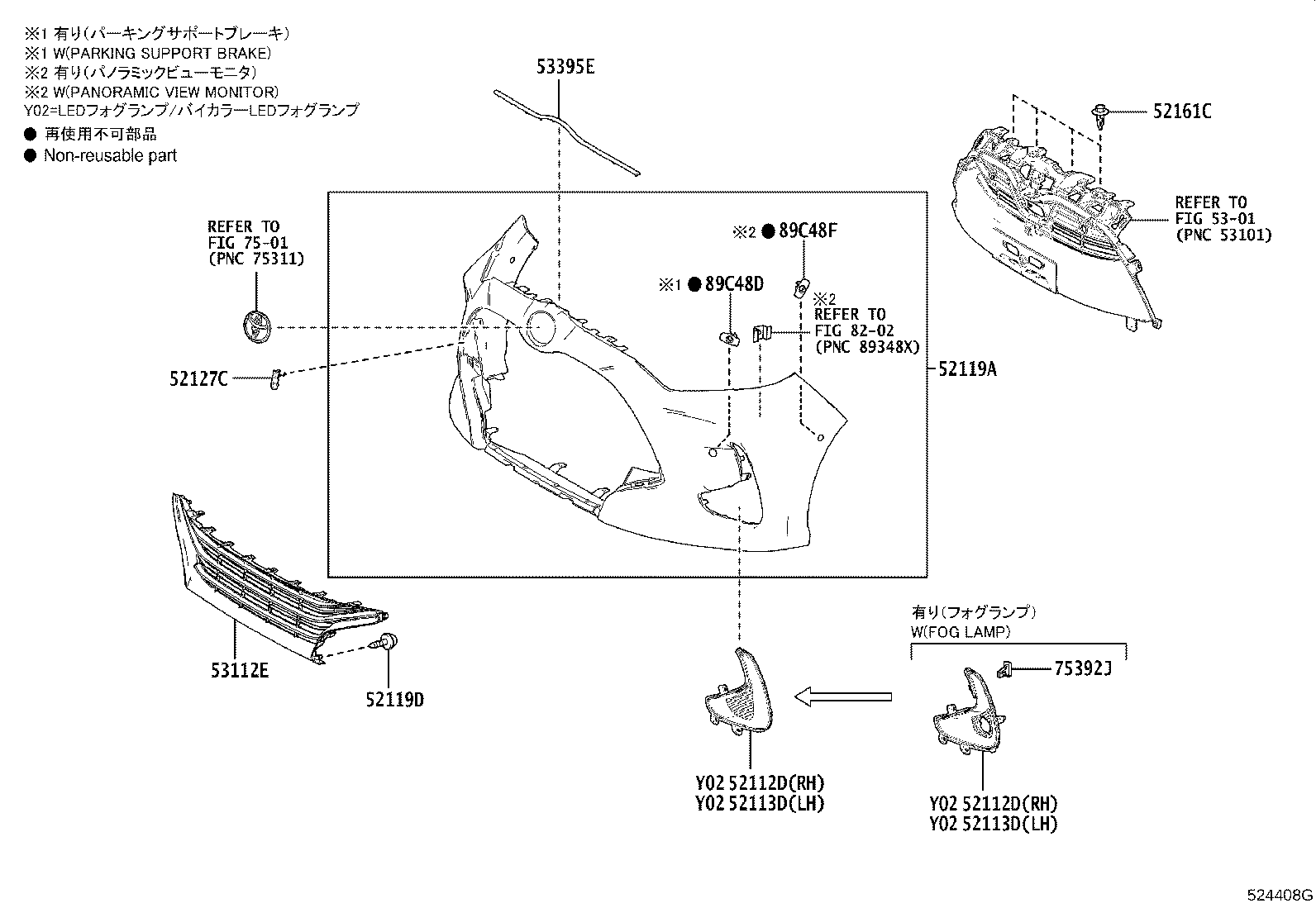

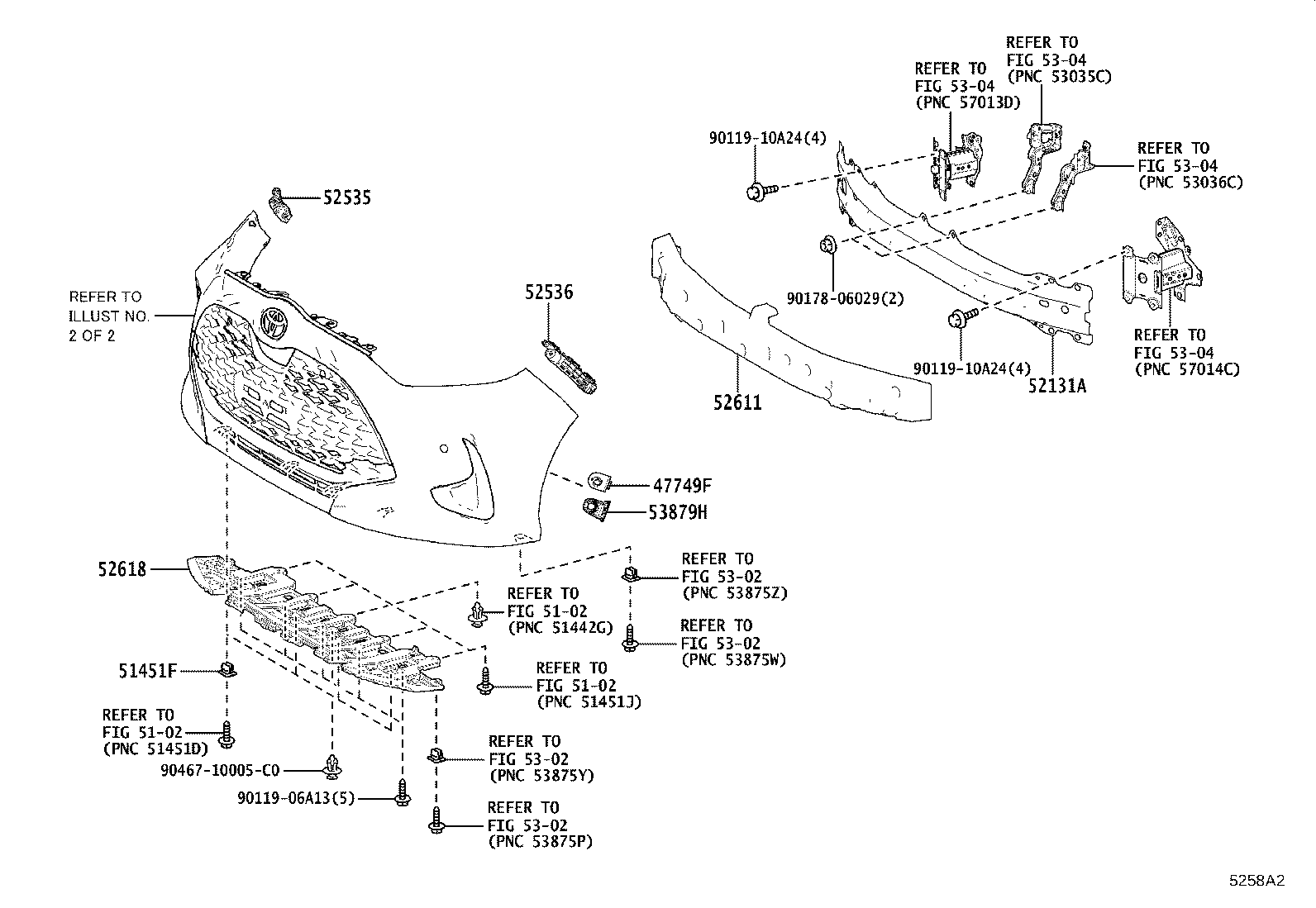

Figure 524407G 524407G 2020-02 → 2024-01 Figure 524407G 524407G 2020-02 → — Figure 524408G 524408G 2020-02 → 2024-01 Figure 524408G 524408G 2020-02 → — Figure 5258A2 5258A2 2024-01 → — Figure 5258A3A 5258A3A 2024-01 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
52102B Extension Sub-assy, Front Bumper, RH
52103A Extension Sub-assy, Front Bumper, LH
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
