Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

22 part groups · 3 illustrations

Illustrations

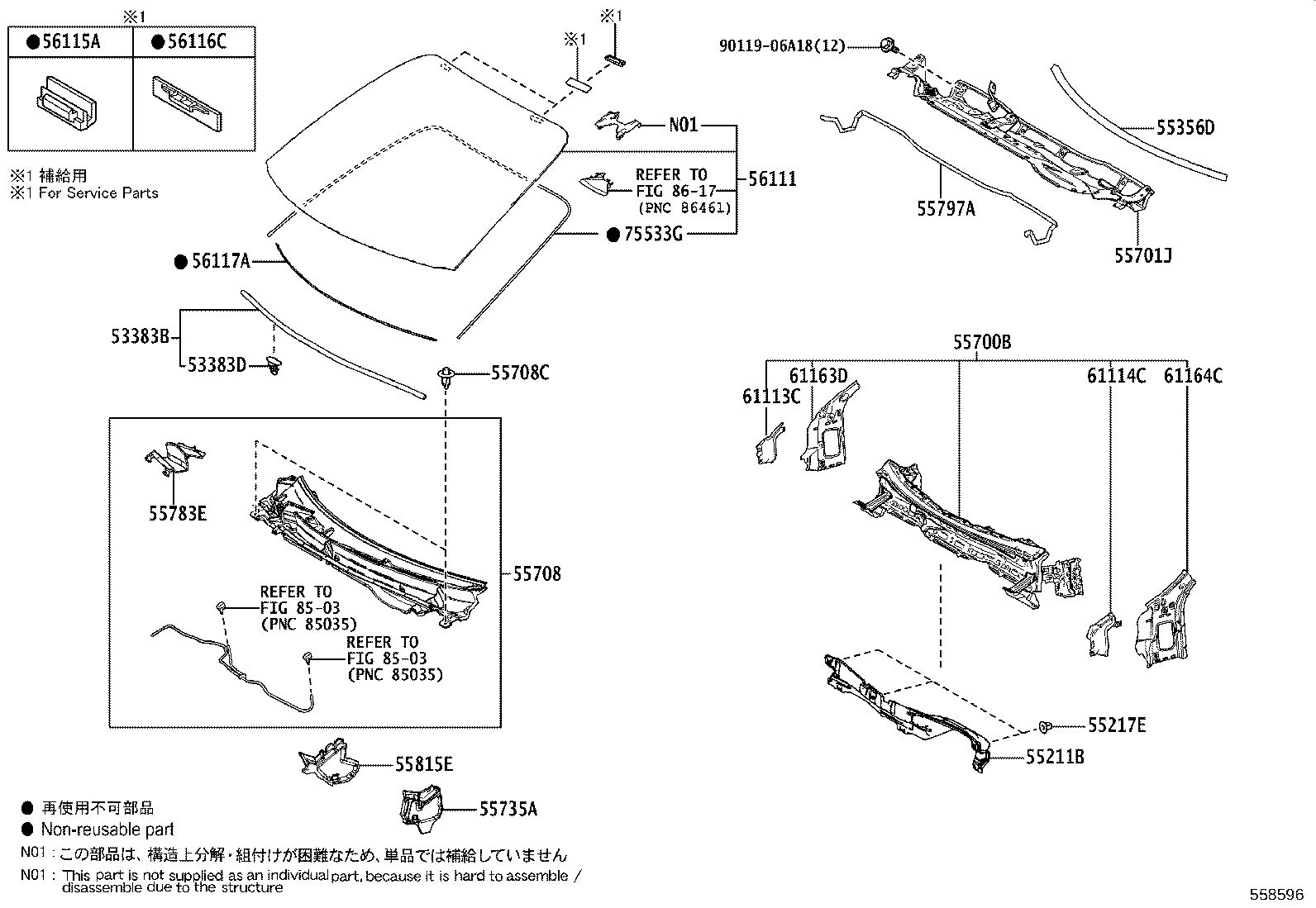

Figure 554749F 554749F 2020-02 → 2024-01 Figure 554749F 554749F 2020-02 → — Figure 558596 558596 2024-01 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55211B Silencer, Front Panel
55217E Retainer, Dash Panel Silencer
55356D Cushion, Instrument Panel, NO.2
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55708 Louver Sub-assy, Cowl Top Ventilator
55708C Clip, Cowl Top Ventilator Louver
55735A Plate, Water Guard, LH
55783E Louver, Cowl Top Ventilator, Center
55797A Seal, Cowl Water Extract
55815E Seal, Front Ventilator, NO.1
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
61113C Panel, Side, Inner RH
61114C Panel, Side, Inner LH
61163D Pillar, Front Body, Lower Inner RH
61164C Pillar, Front Body, Lower Inner LH
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
