Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Slope & Power Lift

148 part groups · 12 illustrations

Illustrations

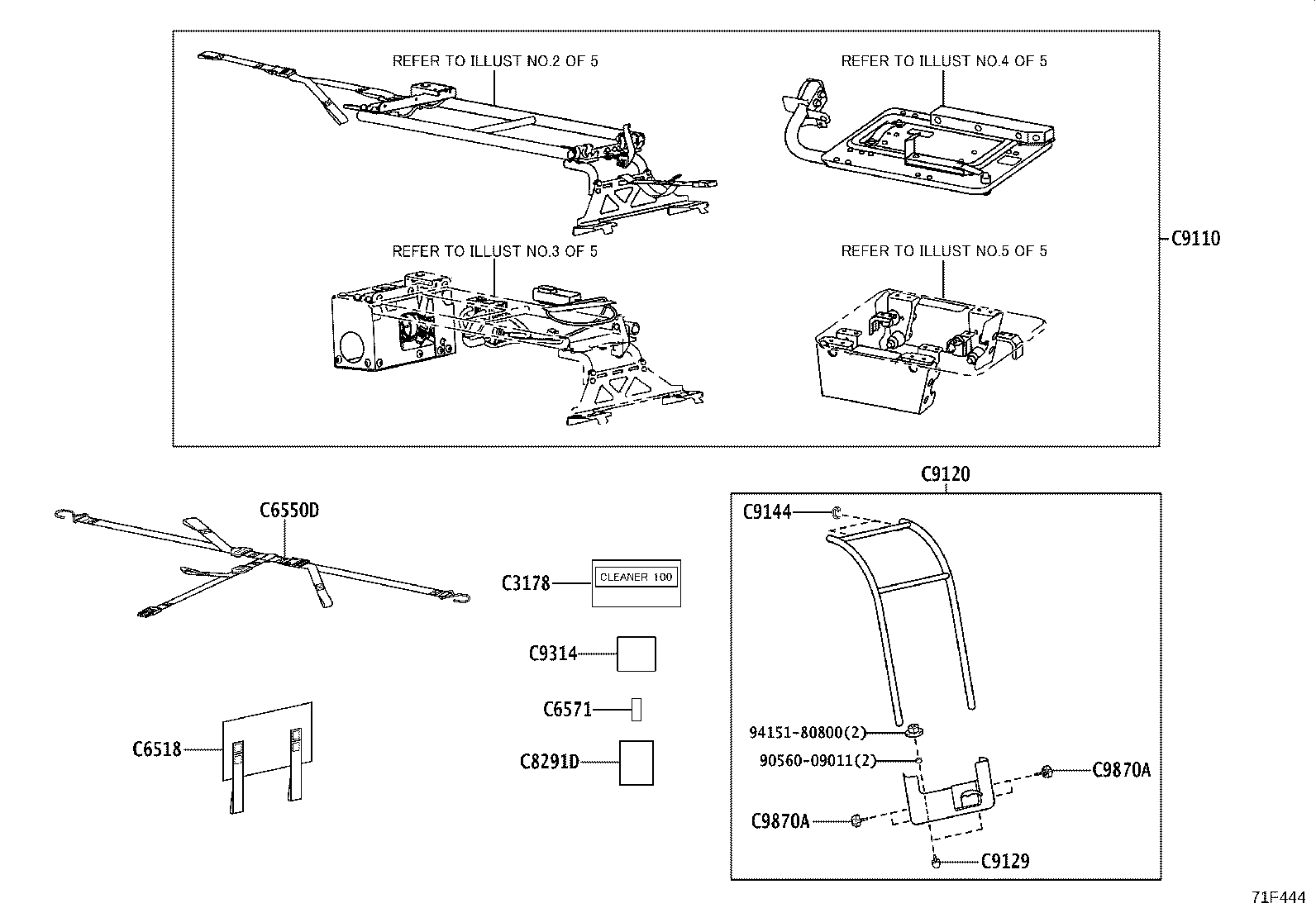

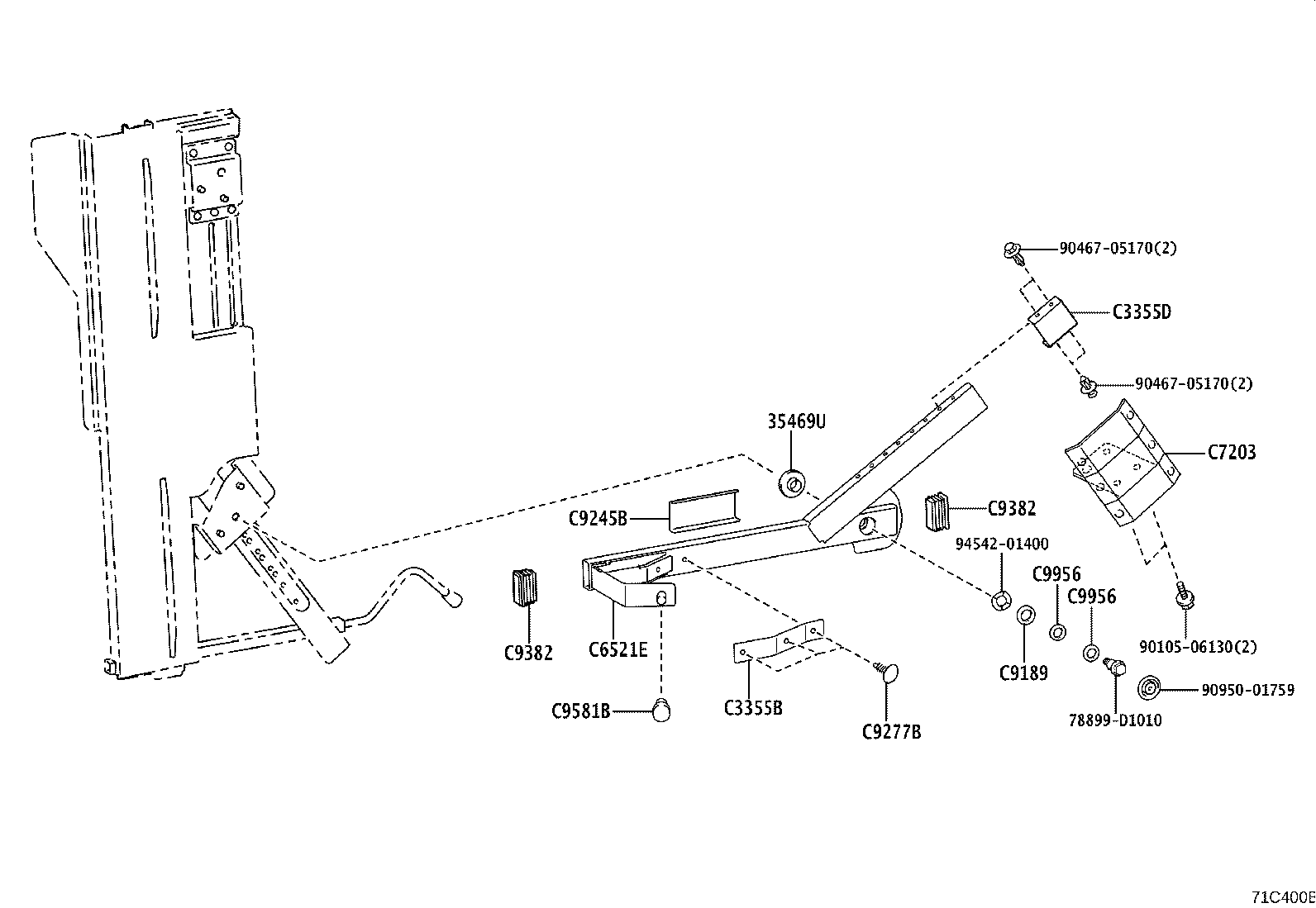

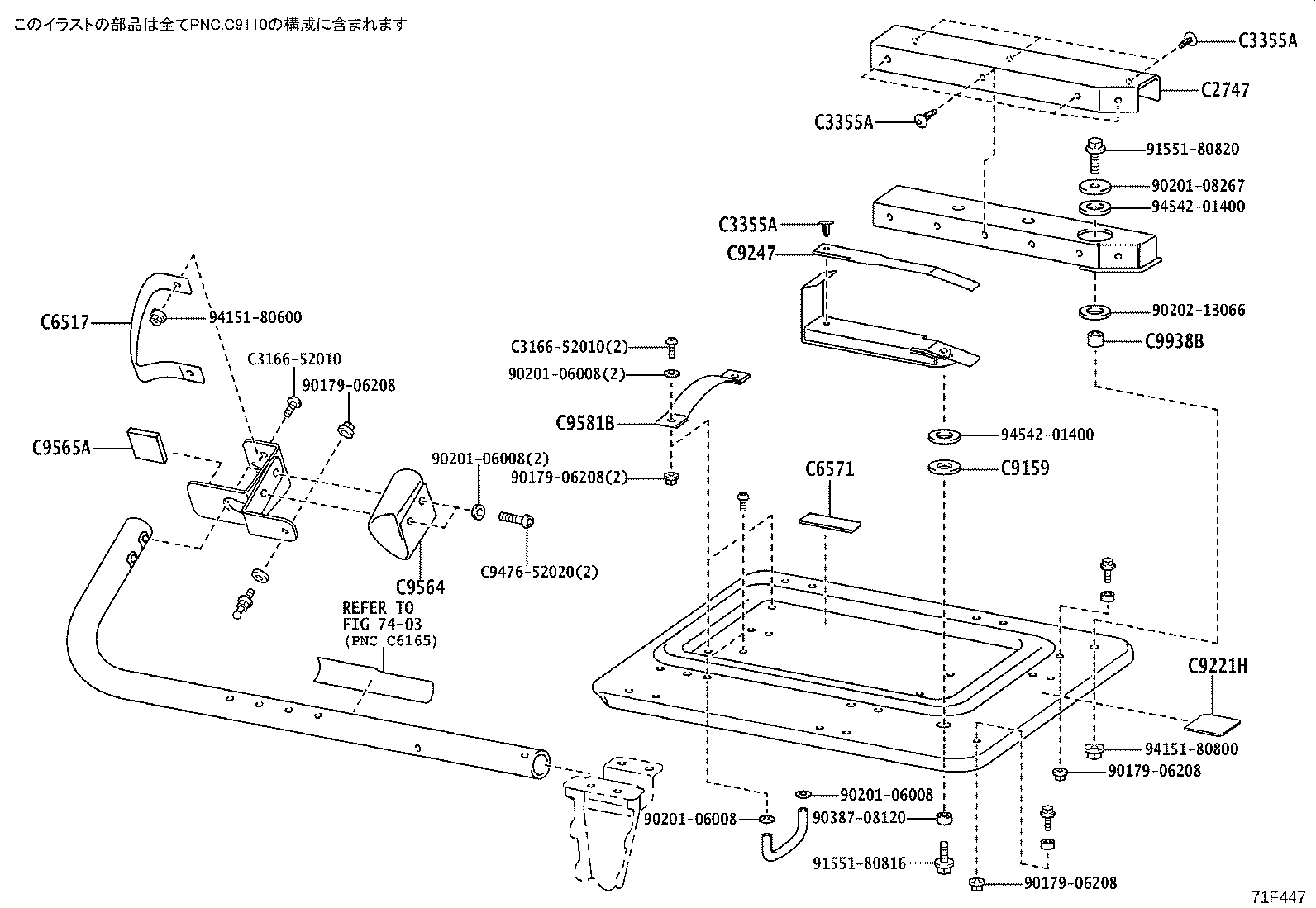

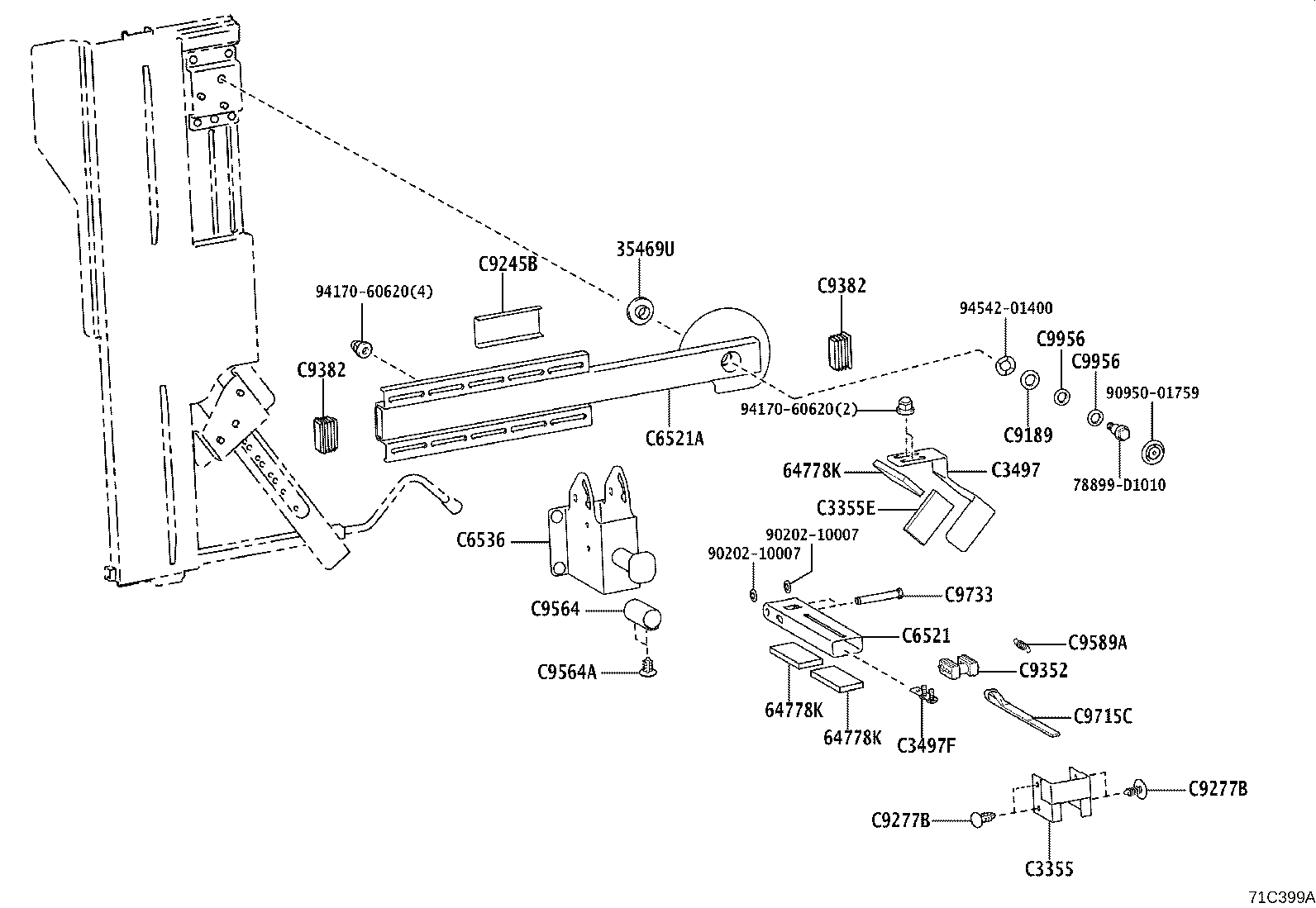

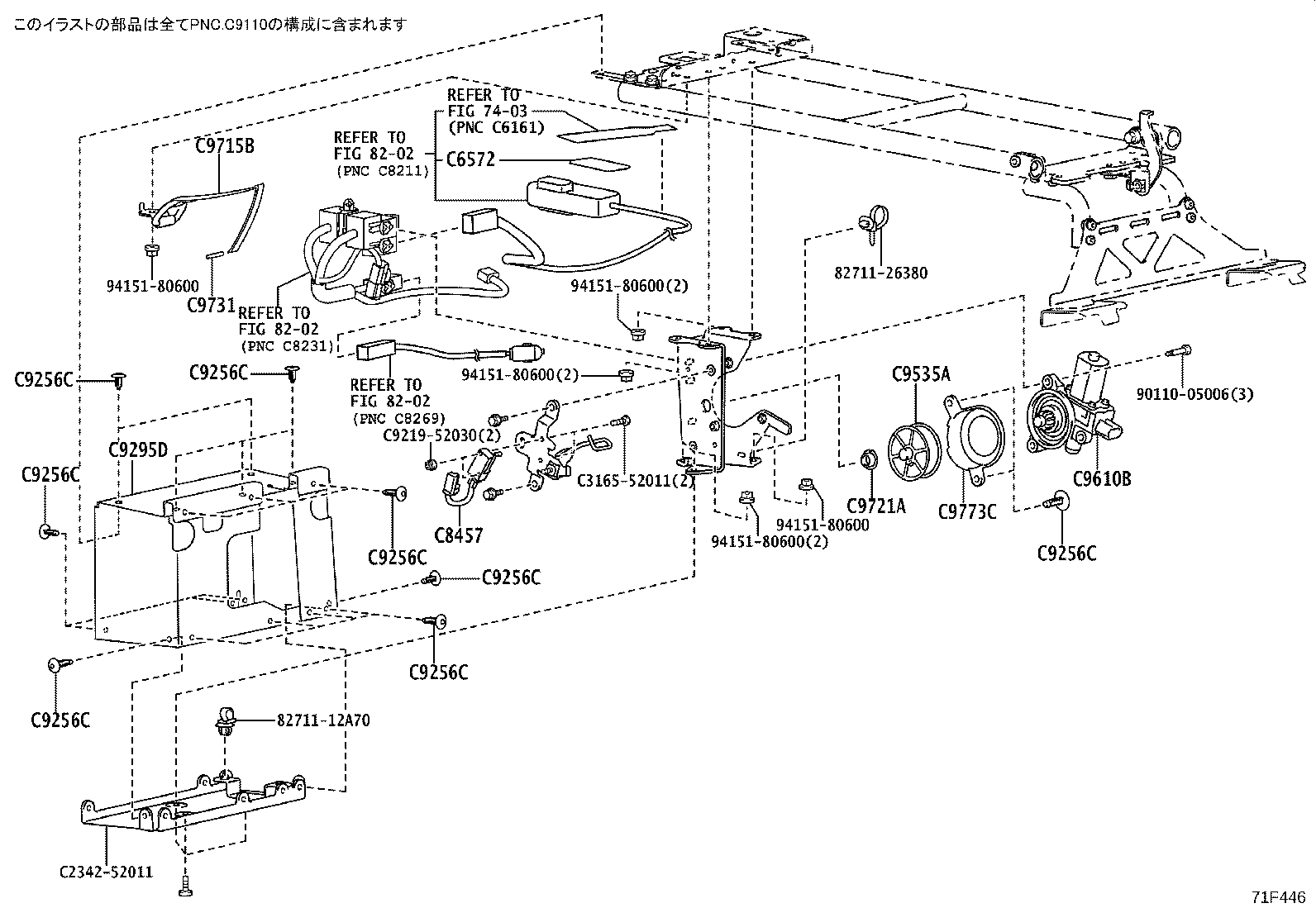

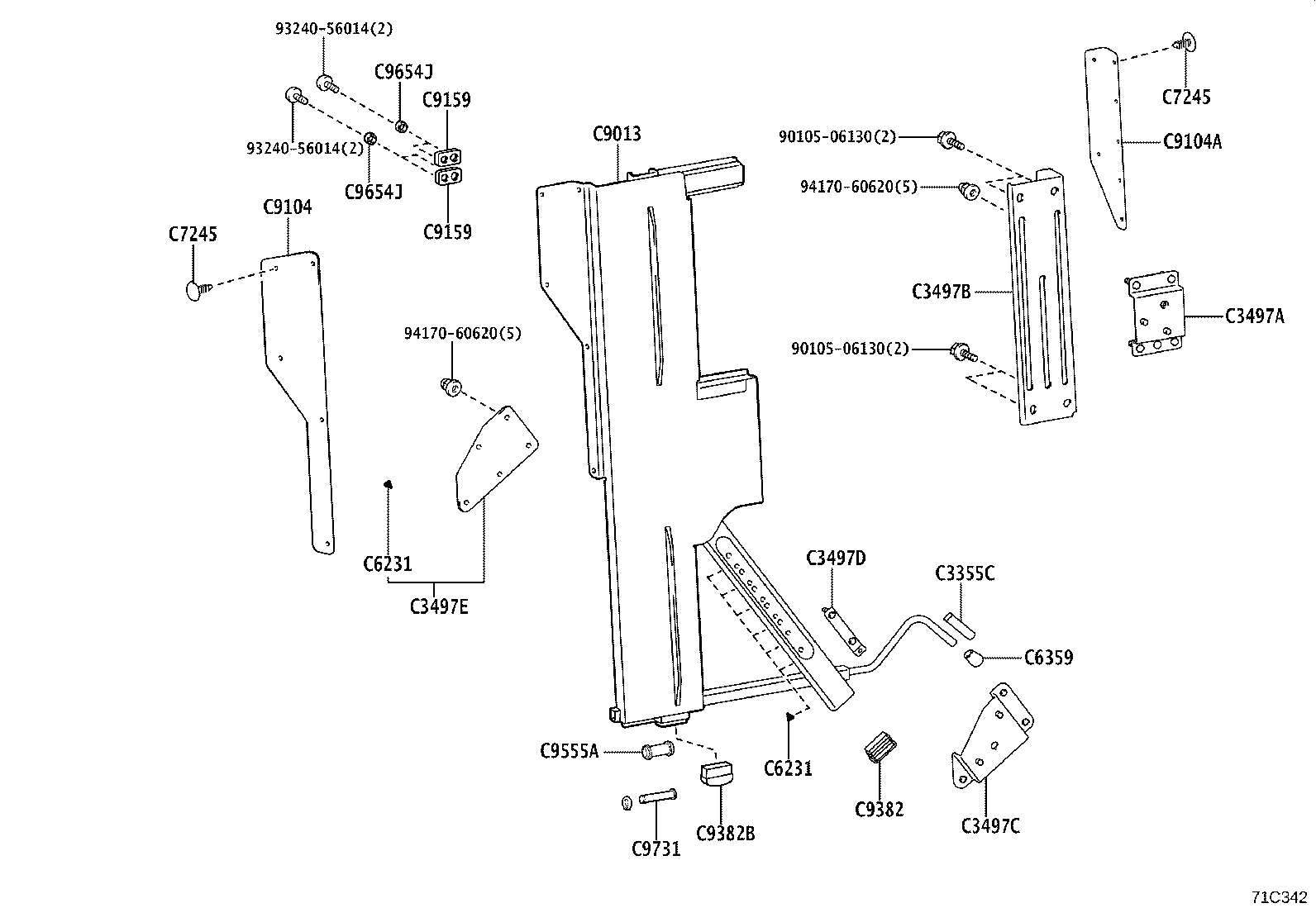

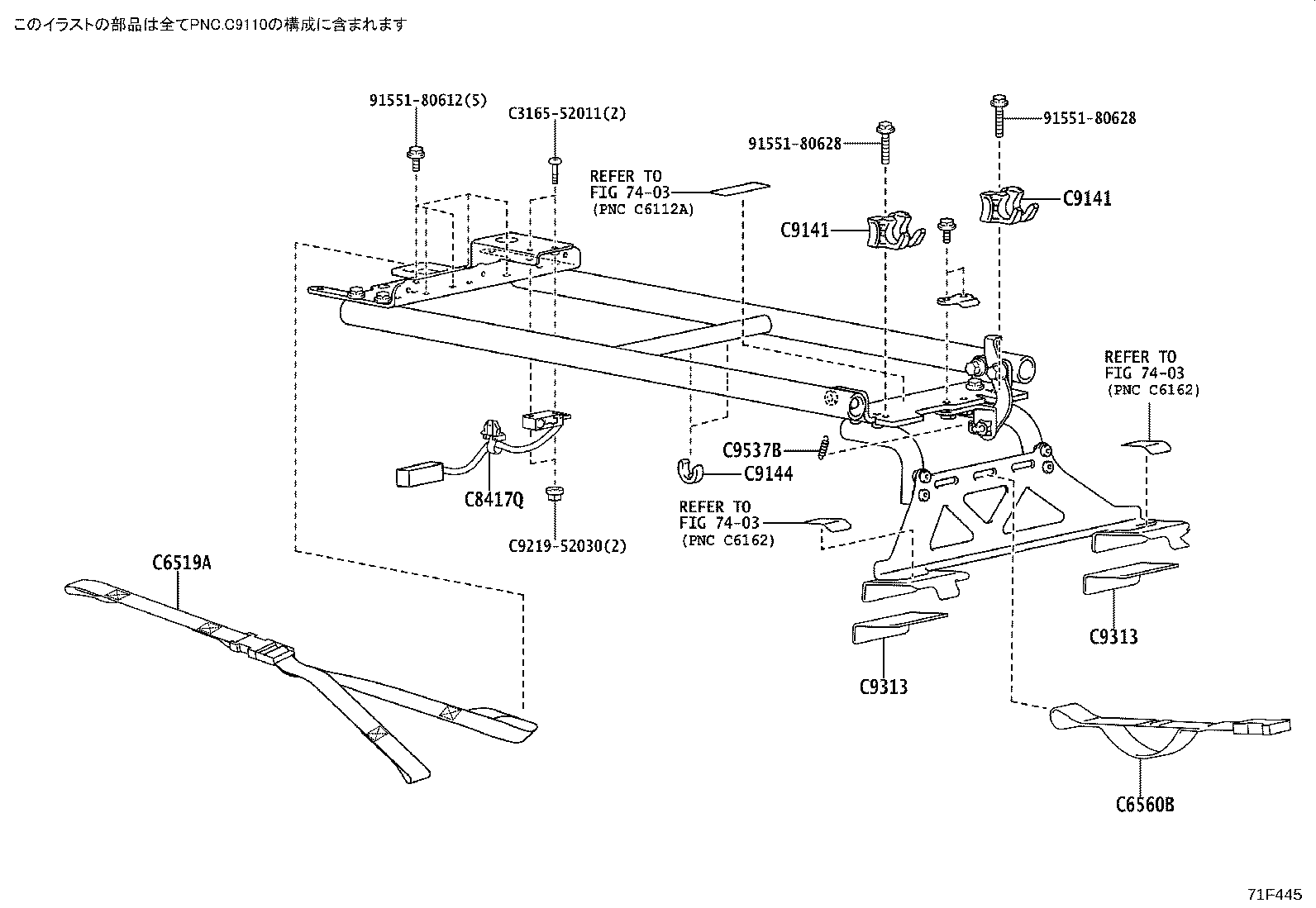

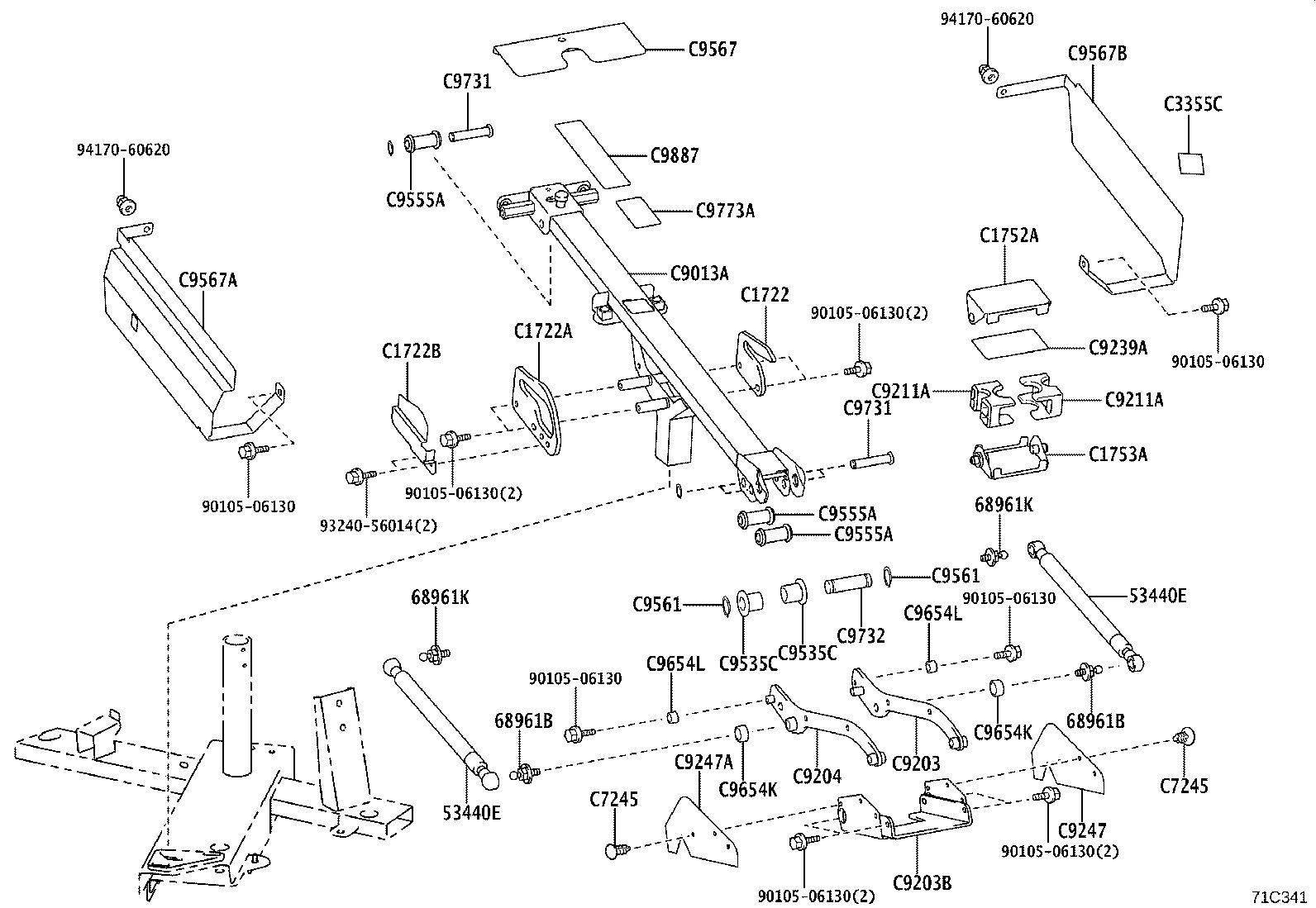

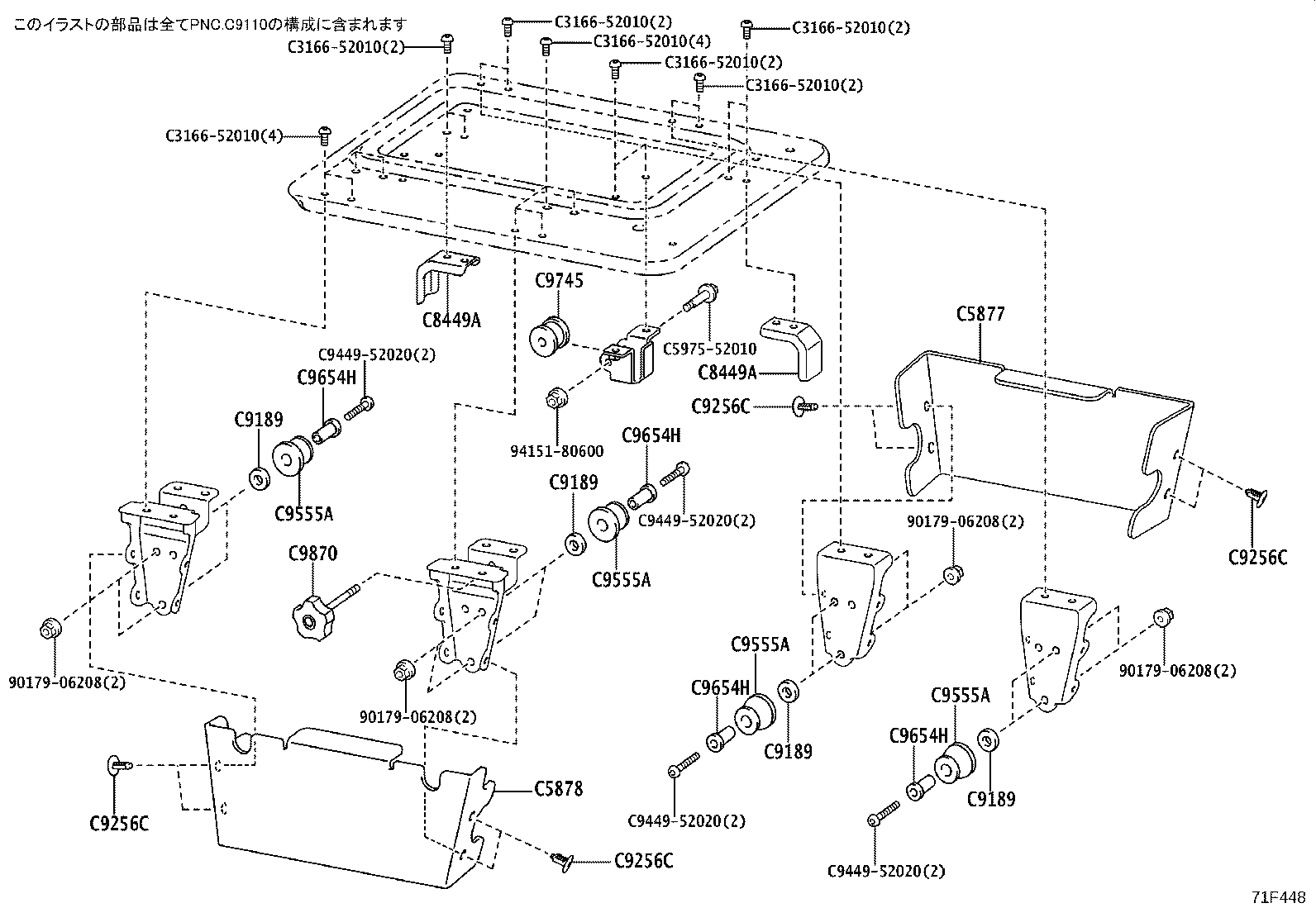

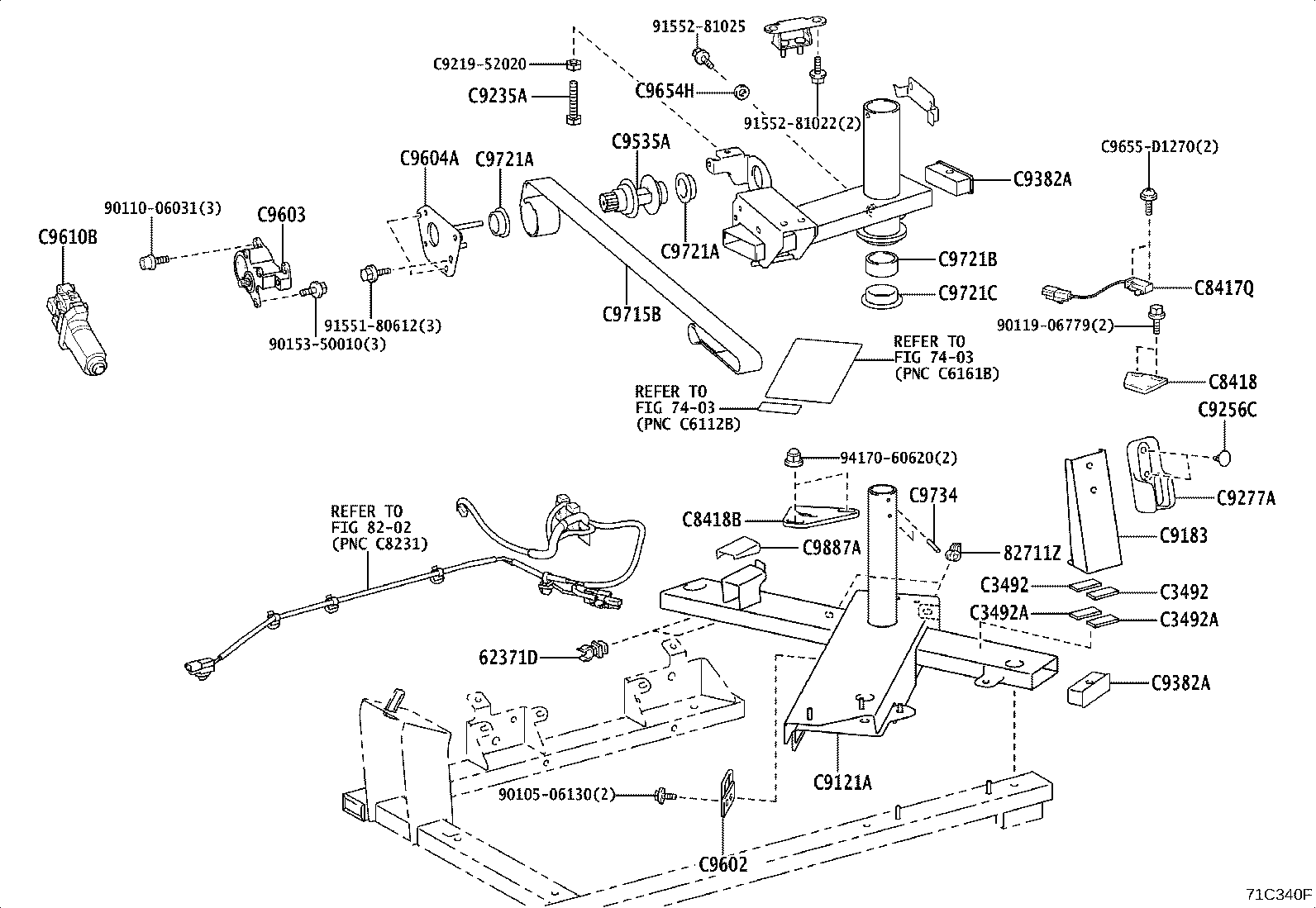

Figure 71C339C 71C339C 2020-02 → — Figure 71C340F 71C340F 2020-02 → — Figure 71C341 71C341 2020-02 → — Figure 71C342 71C342 2020-02 → — Figure 71C399A 71C399A 2020-02 → — Figure 71C400B 71C400B 2020-02 → — Figure 71C401 71C401 2020-02 → — Figure 71F444 71F444 2020-02 → — Figure 71F445 71F445 2020-02 → — Figure 71F446 71F446 2020-02 → — Figure 71F447 71F447 2020-02 → — Figure 71F448 71F448 2020-02 → —

Part groups

PNCDescription
35469U Spacer
53440E Support Assy, Power Lift Arm
62371D Catch, Lock
64080A Arm Assy, Power Lift
64778K Protector, Spare Wheel
68961B Bolt, Power Lift Arm, NO.1
68961K Bolt, Power Lift Arm, NO.2
82711Z Clamp, Wiring Harness
C1722 Plate, Control, Lower
C1722A Plate, Control, Lower, NO.2
C1722B Plate, Control, Lower, NO.3
C1752A Plate, Control Arm, Upper
C1753A Plate, Control Arm, Lower
C2747 Protector, Guard Frame, Lwr RH
C3178 Sheet, Header Panel
C3355 Cover, Chair Guide
C3355A Clip, Chair Guide Cover
C3355B Cover, Chair Guide, NO.2
C3355C Cover, Chair Guide, NO.3
C3355D Cover, Chair Guide, NO.4
C3355E Cover, Chair Guide, NO.5
C3492 Holder, Pole, Rear NO.1
C3492A Holder, Pole, Rear NO.2
C3497 Plate, Wheel Chair Lock, NO.1
C3497A Plate, Wheel Chair Lock, NO.2
C3497B Plate, Wheel Chair Lock, NO.3
C3497C Plate, Wheel Chair Lock, NO.4
C3497D Plate, Wheel Chair Lock, NO.5
C3497E Plate, Wheel Chair Lock, NO.6
C3497F Plate, Wheel Chair Lock, NO.7
C3552A Bracket, Tecs Mounting, NO.2
C3553 Bracket, Tecs Mounting, NO.3
C3553A Bracket, Tecs Mounting, NO.4
C3553B Bracket, Tecs Mounting, NO.5
C3553C Bracket, Tecs Mounting, NO.6
C3557 Reinforce, Mounting Bracket, NO.1
C3557A Reinforce, Mounting Bracket, NO.2
C5877 Guard, Shade Panel, NO.1
C5878 Guard, Shade Panel, NO.2
C6231 Mark, Side
C6359 Cap, Protector Bar

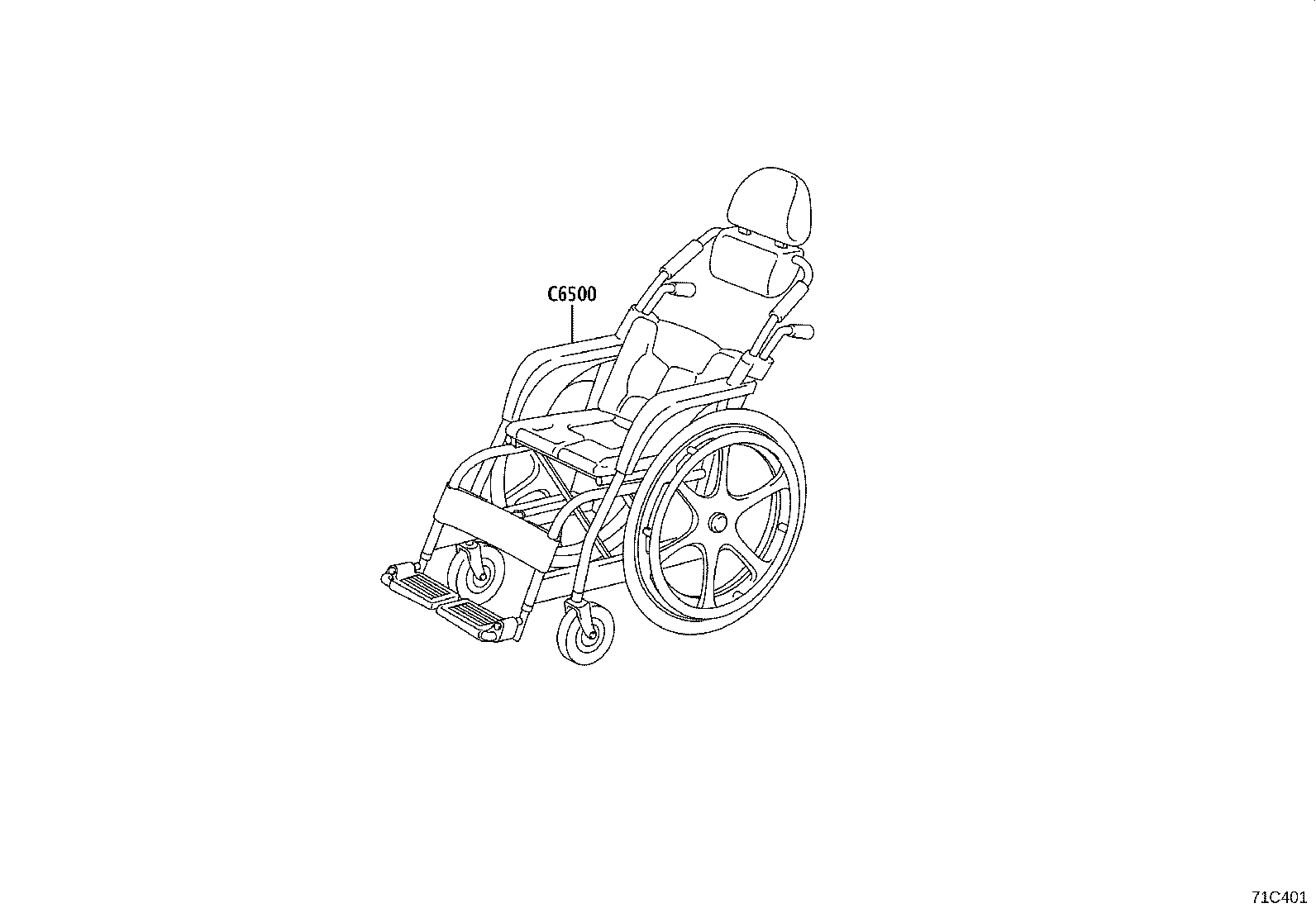

C6500 Wheel Chair Assy
C6517 Belt, Package Holder, NO.1
C6518 Belt, Package Holder, NO.2
C6519A Belt, Lashing
C6521 Plate, Wheel Chair Lock Holder
C6521A Plate, Wheel Chair Lock Holder, NO.2
C6521E Plate, Wheel Chair Lock Holder, NO.3
C6536 Hinge, Wheel Chair Set Female
C6550D Belt Assy, Wheel Chair Set, NO.1
C6560B Belt Assy, Wheel Chair Set, NO.2
C6571 Hook, Wheel Chair Belt
C6572 Hook, Wheel Chair Belt, NO.2
C7203 Bracket Sub-assy, Welcab Wheel Chair Footrest
C7245 Clip, Welcab Seat Track Handle
C8291D Protector, Tecs Wiring Harness, NO.1
C8417Q Switch, Limit
C8418 Plate, Limit Switch
C8418B Plate, Limit Switch, NO.2
C8449A Dog, Limit Switch
C8457 Switch, Limit, NO.2
C9011 Plate Sub-assy, Power Lift Column
C9013 Arm Sub-assy, Power Lift, NO.1
C9013A Arm Sub-assy, Power Lift, NO.2
C9104 Cover Sub-assy, Power Lift Beam
C9104A Cover Sub-assy, Power Lift Beam, NO.2
C9107 Base Sub-assy, Power Lift TO Floor
C9110 Rail Assy, Power Lift Arm Guide, RH
C9120 Rail Assy, Power Lift Arm Guide, LH
C9121A Base, Power Lift Column
C9129 Stopper, Power Lift Arm Guide
C9141 Reinforce, Power Lift
C9144 Reinforce, Power Lift Beam
C9159 Spacer, Lift Arm Guide Stopper
C9183 Reinforce, Power Lift Base Retainer
C9189 Spacer, Power Lift Retainer Base
C9203 Link Sub-assy, Power Lift Arm, NO.1 RH
C9203B Link Sub-assy, Power Lift Arm, NO.2
C9204 Link Sub-assy, Power Lift Arm, NO.1 LH
C9211A Guide, Power Lift
C9221H Hook, Power Lift Guide
C9235A Stop, Power Lift Arm
C9239A Spacer, Lift Arm Link
C9245B Cushion, Power Lift Platform, NO.1
C9245C Cushion, Power Lift Platform, NO.2
C9247 Protector, Power Lift Link, NO.1
C9247A Protector, Power Lift Link, NO.2
C9256C Clip
C9277A Bracket, Lift Control Switch
C9277B Clip, Lift Control Switch Bracket
C9295D Cover, Power Lift Wire, NO.1
C9313 Holder, Power Lift Platform, RH
C9314 Holder, Power Lift Platform, LH
C9321 Frame, Power Lift Platform, NO.1
C9322 Frame, Power Lift Platform, NO.2 LH
C9322A Frame, Power Lift Platform, NO.2 Rear
C9323 Frame, Power Lift Platform, NO.3 RH
C9323A Frame, Power Lift Platform, NO.3 LH
C9324 Frame, Power Lift Platform, NO.4 RH
C9324A Frame, Power Lift Platform, NO.4 LH
C9352 Guide, Stopper Lifter Handle
C9381 Protector, Platform, A
C9382 Protector, Platform, B
C9382A Protector, Platform, B NO.2
C9382B Protector, Platform, B NO.3
C9535A Pulley, Power Lift
C9535C Roller, Lift Arm Guide
C9537B Spring, Power Lift Return
C9555A Roller, Power Lift
C9561 Stop, Cylinder
C9564 Protector, Power Lift Cylinder Cover
C9564A Clip, Power Lift Cylinder Cover Protector
C9565A Cover, Power Lift Cylinder, NO.1
C9567 Bracket, Power Lift Cover, NO.1
C9567A Bracket, Power Lift Cover, NO.2
C9567B Bracket, Power Lift Cover, NO.3
C9581B Handle, Power Lift
C9589A Spring, Platform Lock Handle
C9597 Plate, Platform Lock Stop, NO.1
C9597A Plate, Platform Lock Stop, NO.2
C9602 Rod Sub-assy, Power Lift Cylinder
C9603 Gear Sub-assy, Power Lift
C9604A Bracket Sub-assy, Power Lift Motor
C9610B Motor Assy, Power Lift
C9654H Collar, Power Lift Cylinder
C9654J Collar, Power Lift Cylinder, NO.2
C9654K Collar, Power Lift Cylinder, NO.3
C9654L Collar, Power Lift Cylinder, NO.4
C9715B Belt, Winch
C9715C Belt, Winch, NO.2
C9721A Bearing, NO.2 Winch, NO.1
C9721B Bearing, NO.2 Winch, NO.2
C9721C Bearing, NO.2 Winch, NO.3
C9731 Pin, Winch Roller, NO.1
C9732 Pin, Winch Roller, NO.2
C9733 Pin, Winch Roller, NO.3
C9734 Pin, Winch Roller, NO.4
C9745 Roller, Winch, NO.1
C9773A Cover, Winch Wire
C9773C Cover, Winch Belt
C9870 Handle Assy, Crane, NO.1
C9870A Handle Assy, Crane, NO.2
C9887 Cushion, Crane Guide Stopper
C9887A Cushion, Crane Guide Stopper, NO.2
C9887B Cushion, Crane Guide Stopper, NO.3
C9887C Cushion, Crane Guide Stopper, NO.4
C9938B Collar
C9956 Spacer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
