Battery Carrier

4 part groups · 2 illustrations

Illustrations

Figure 745189A

745189A 2020-02 → —

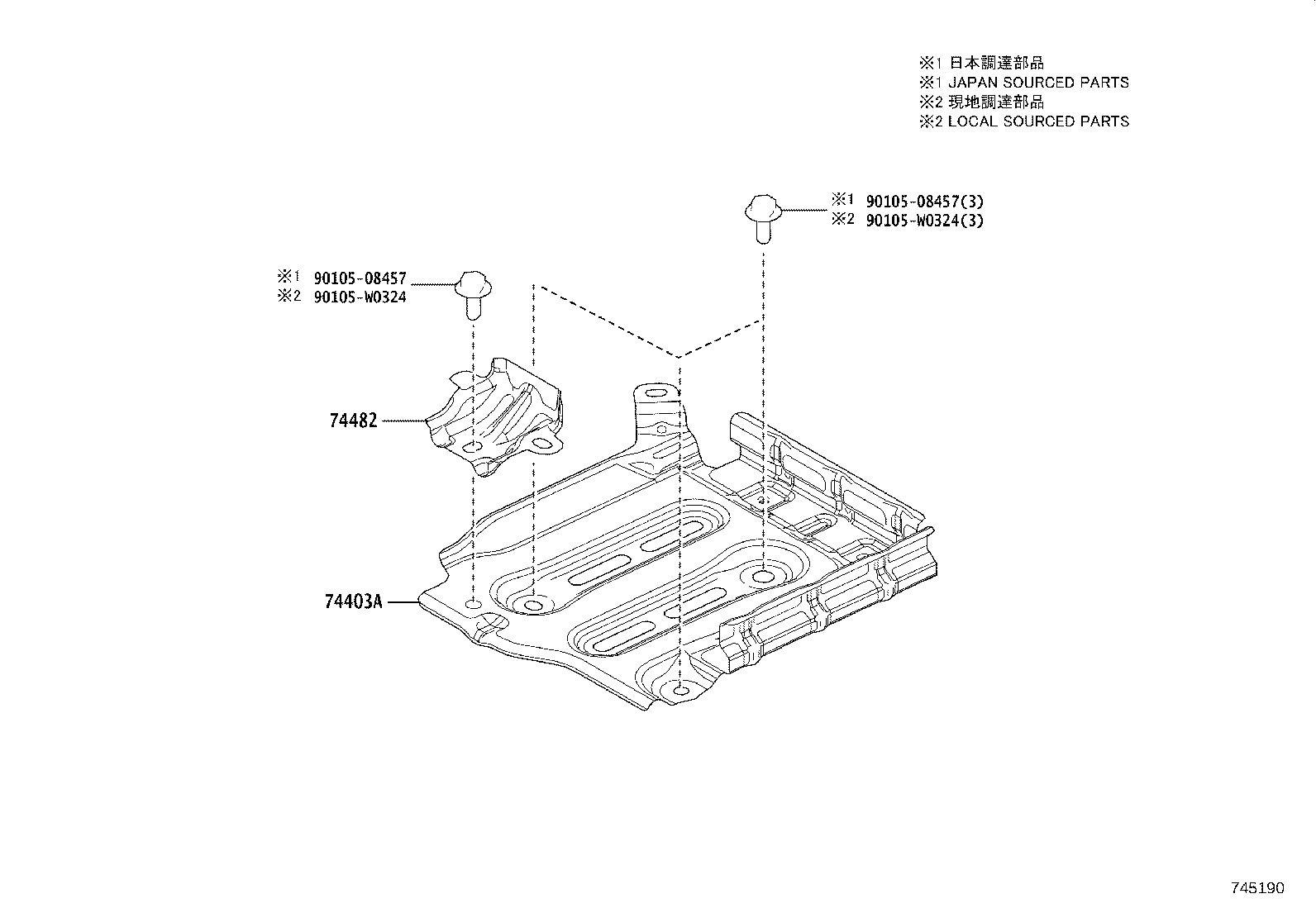

745190 2020-02 → —

Part groups

PNC	Description
74403A	Carrier Sub-assy, Battery
74404A	Clamp Sub-assy, Battery
74405	Clamp Sub-assy, Battery, NO.2
74482	Clamp, Battery, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
