Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

31 part groups · 7 illustrations

Illustrations

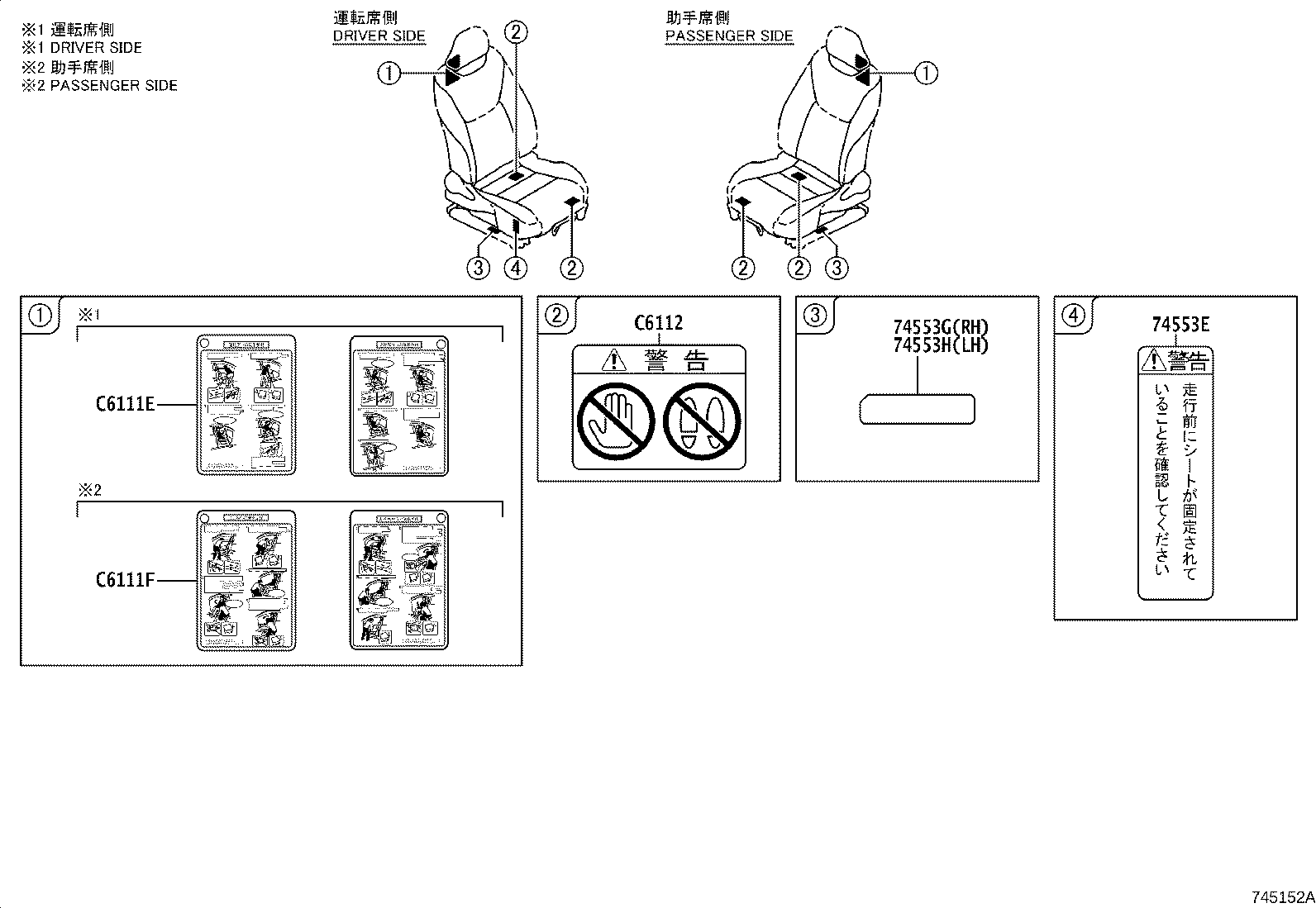

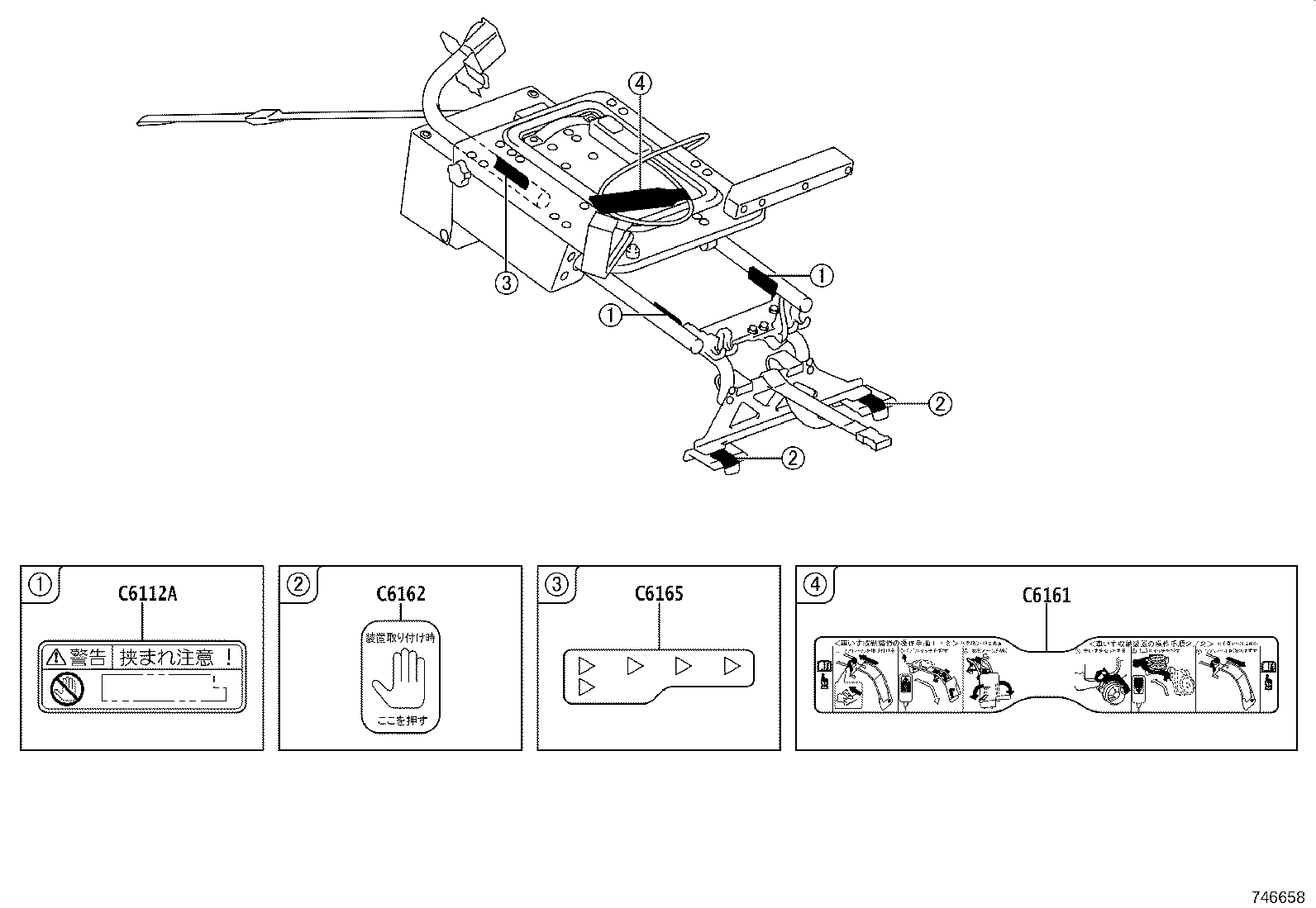

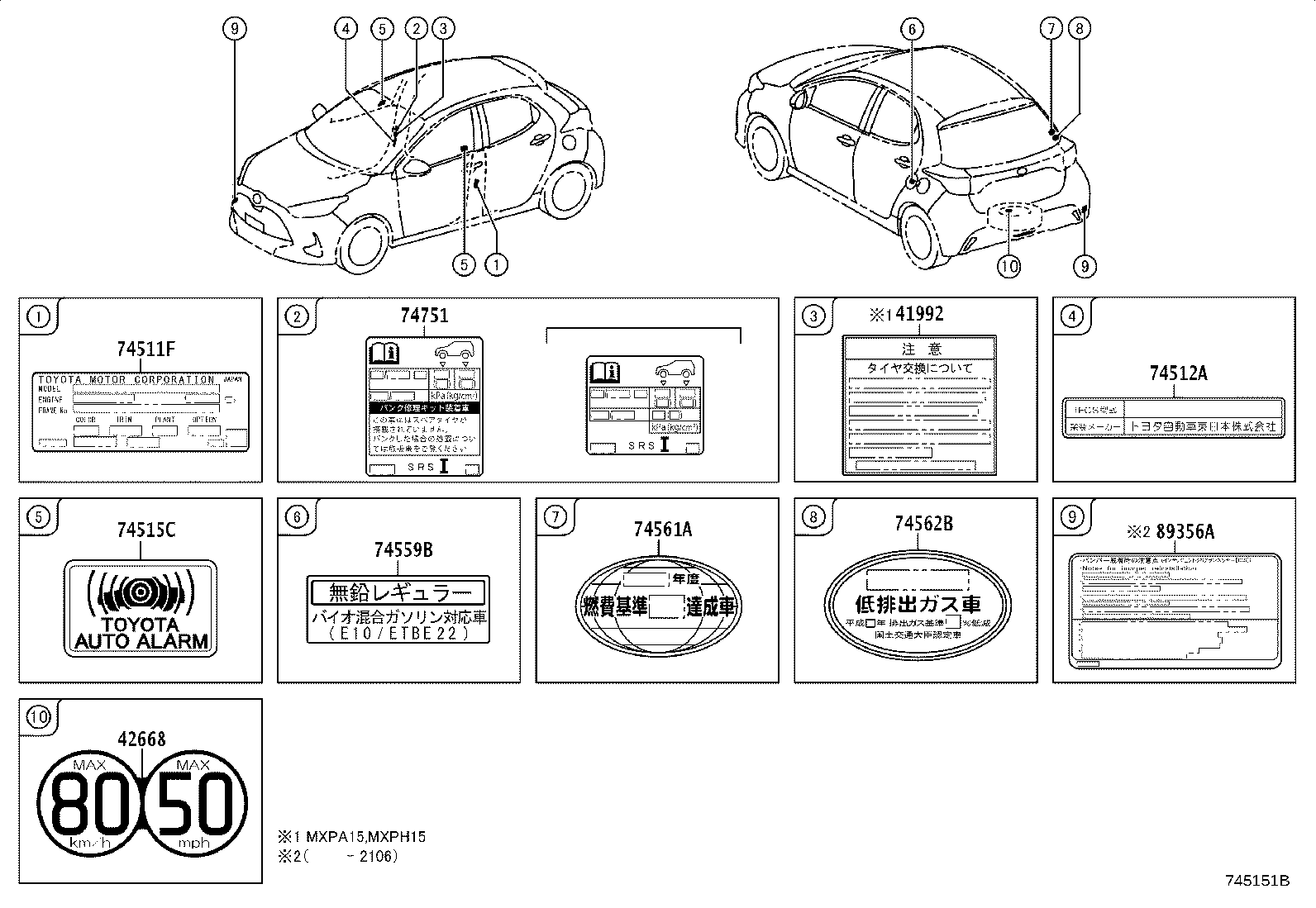

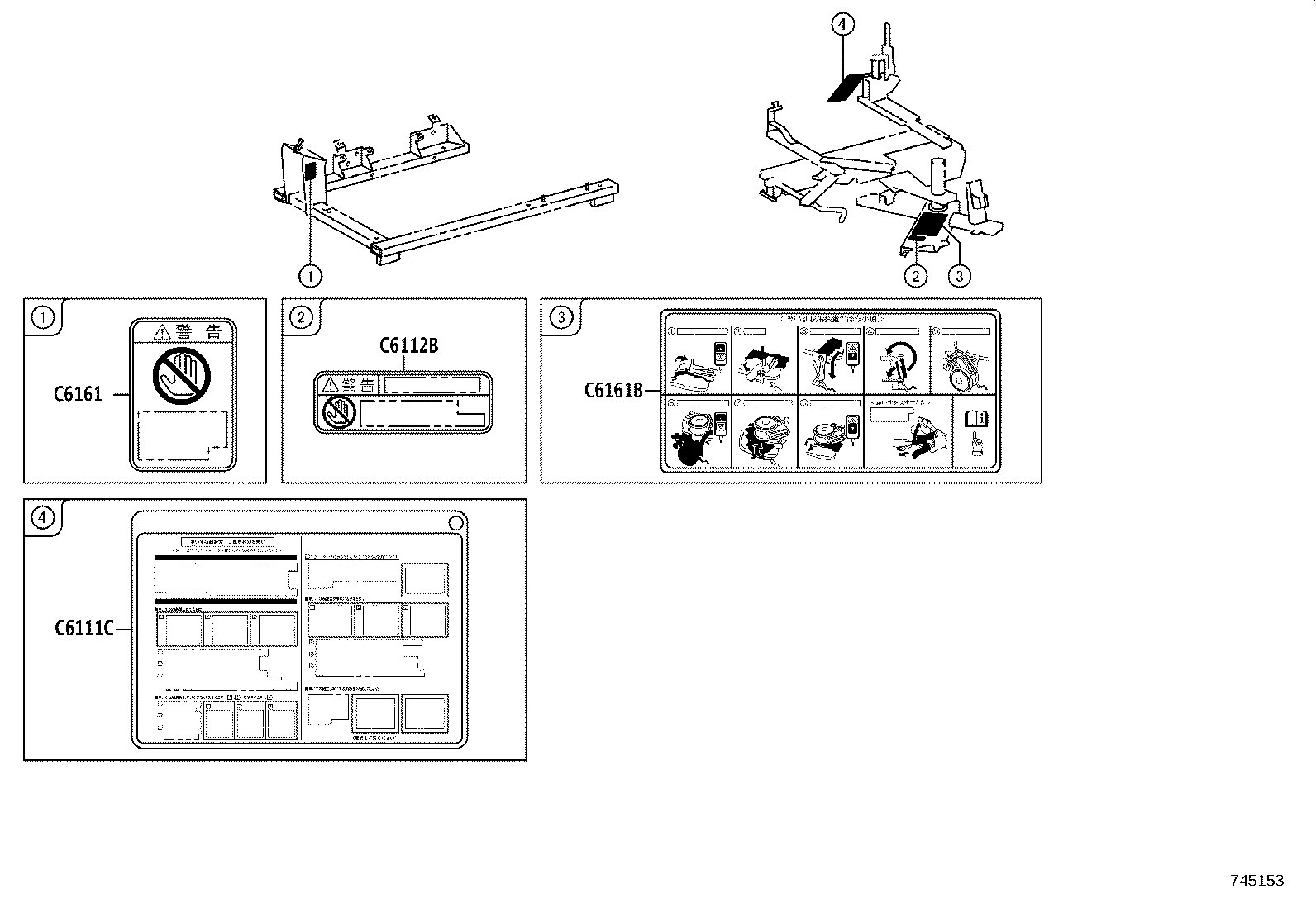

Figure 745150D 745150D 2020-02 → — Figure 745151B 745151B 2020-02 → — Figure 745152A 745152A 2020-02 → — Figure 745152A 745152A 2024-01 → — Figure 745153 745153 2020-02 → — Figure 746553 746553 2020-02 → — Figure 746658 746658 2020-02 → —

Part groups

PNCDescription
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
288A2 Label, Battery Location
288A2A Label, Battery Location, NO.2
41992 Label, Differential Notice
42668 Label, Compact Spare Tire Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74515C Label, Theft Warning Information
74553E Label, Front Seat Caution
74553G Label, Front Seat Information, NO.1
74553H Label, Front Seat Information, NO.2
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
C6111 Plate, Safety Caution
C6111C Plate, Tecs Safety Caution, NO.1
C6111E Plate, Tecs Safety Caution, NO.2
C6111F Plate, Tecs Safety Caution, NO.3
C6112 Label, Safety Information, NO.2
C6112A Label, Safety Information
C6112B Label, Safety Information, NO.2
C6161 Label, Power Lift Caution
C6161B Label, Power Lift Information
C6162 Label, Power Lift Caution, NO.2
C6165 Label, Power Lift Notice
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
