Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01

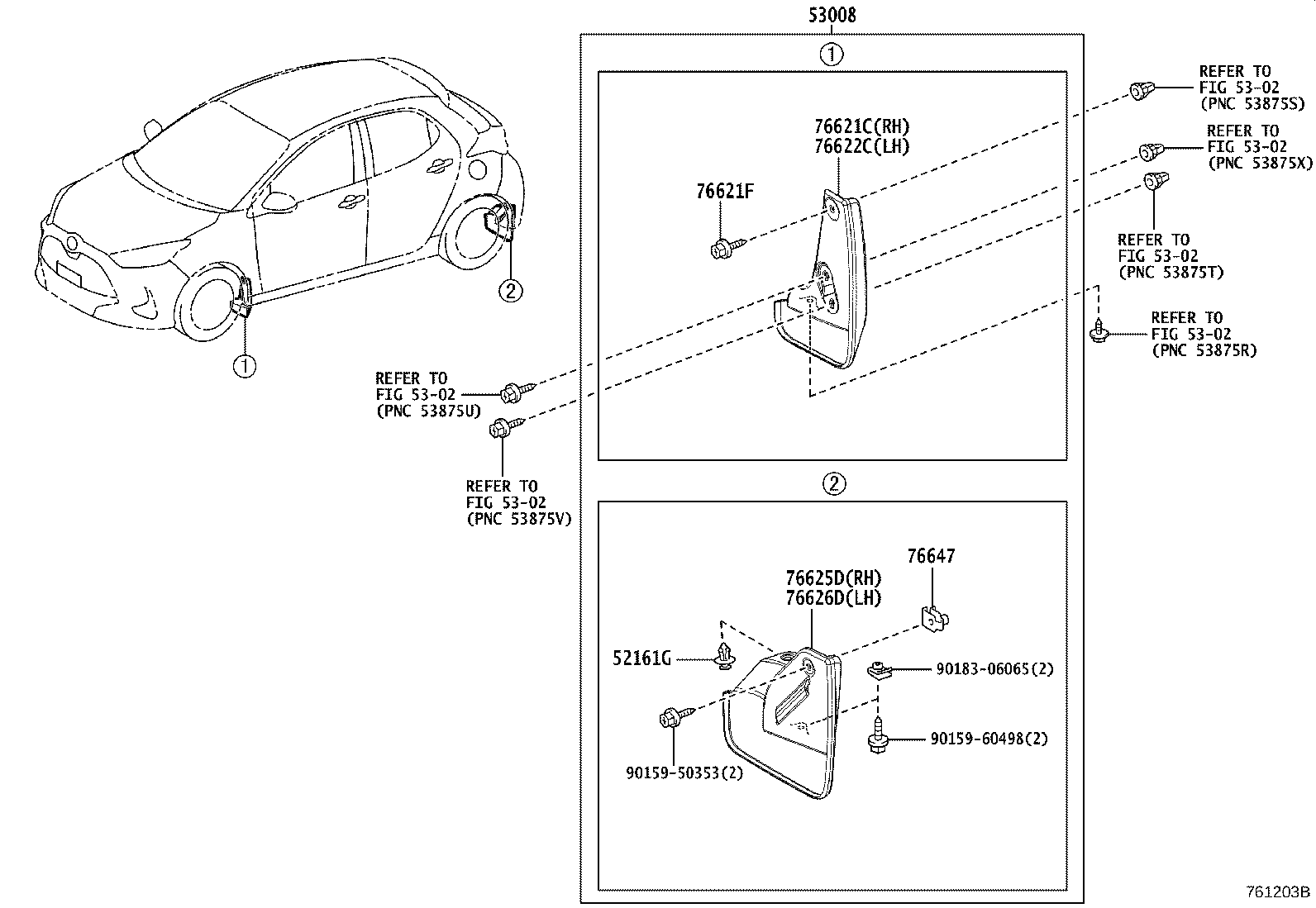

Mudguard & Spoiler
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161G | Piece, Rear Bumper |
| 53008 | Mudguard Set |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65631E | Clip, Rear Wheel House Plate |
| 65632D | Plate, Rear Wheel House, Front LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76621C | Mudguad, Front Fender, RH |
| 76621F | Screw, NO.1 |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76647 | Retainer, Quarter Panel Rear Mudguard |
| 76781 | Tape, Rear Spoiler, Upper RH |
| 76782 | Tape, Rear Spoiler, Upper LH |
| 76866 | Retainer, Rear Spoiler, NO.2 |
| 76867 | Retainer, Rear Spoiler Side, RH |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76895 | Protector, Rear Spoiler, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
