Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

52 part groups · 18 illustrations

Illustrations

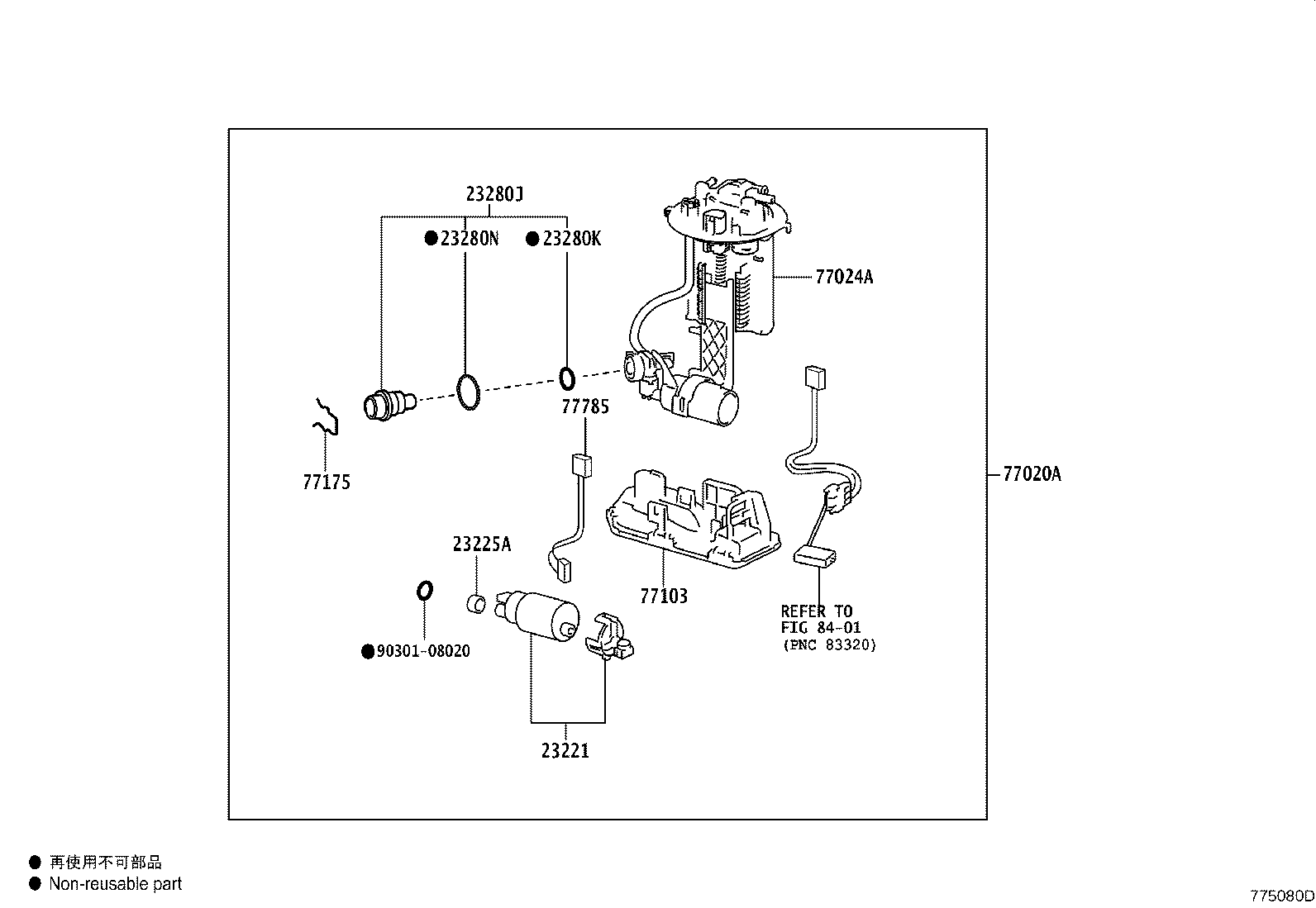

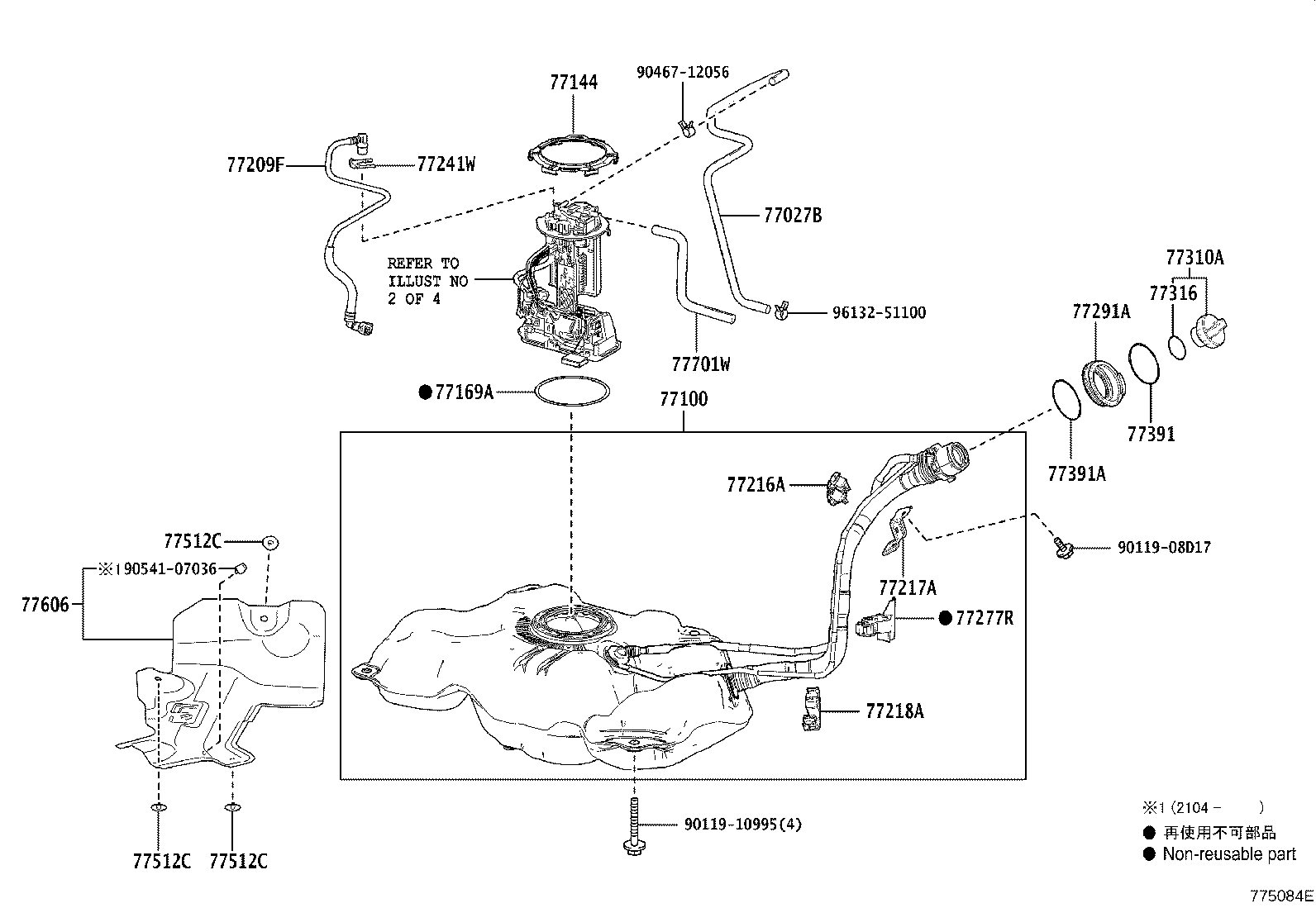

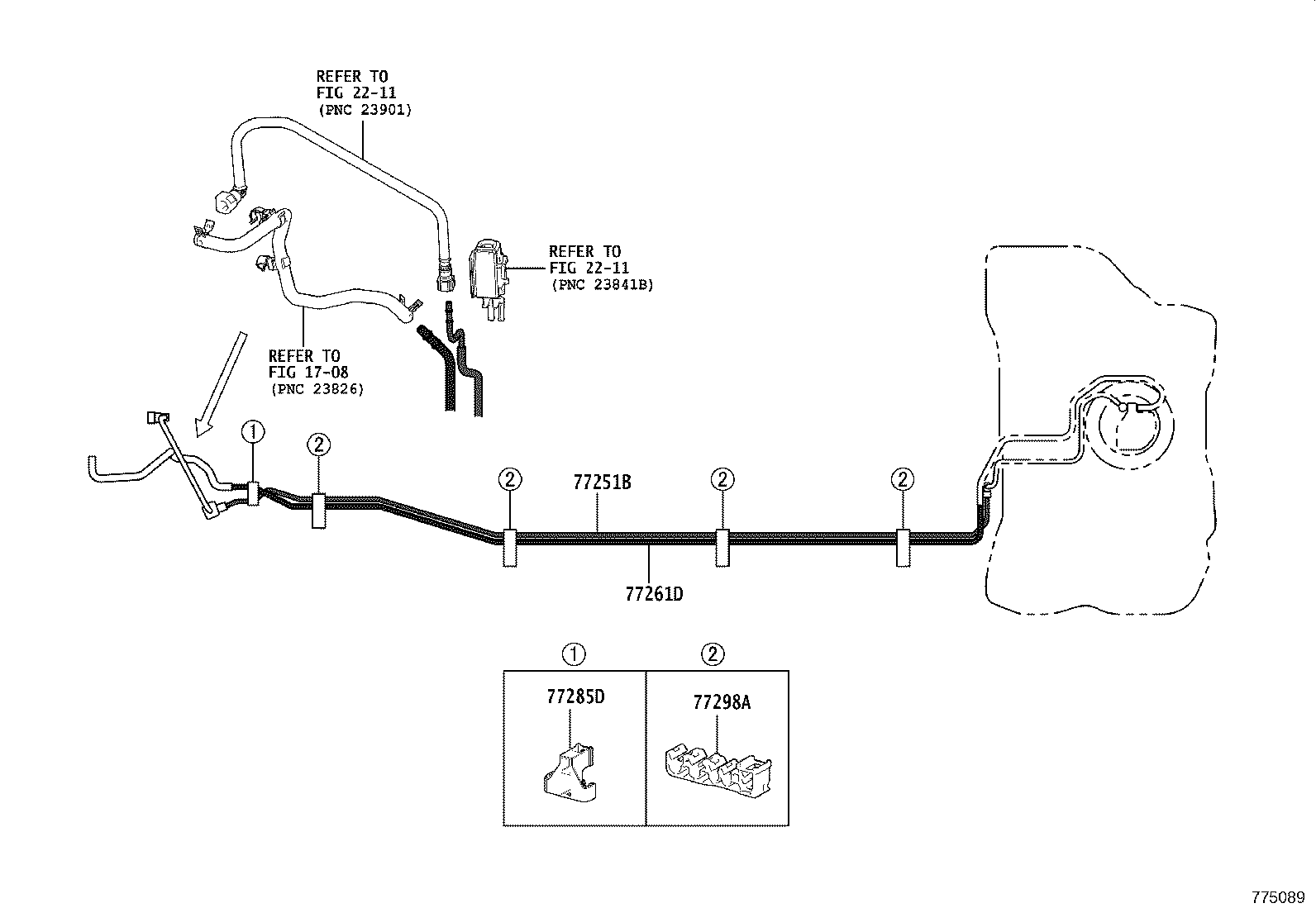

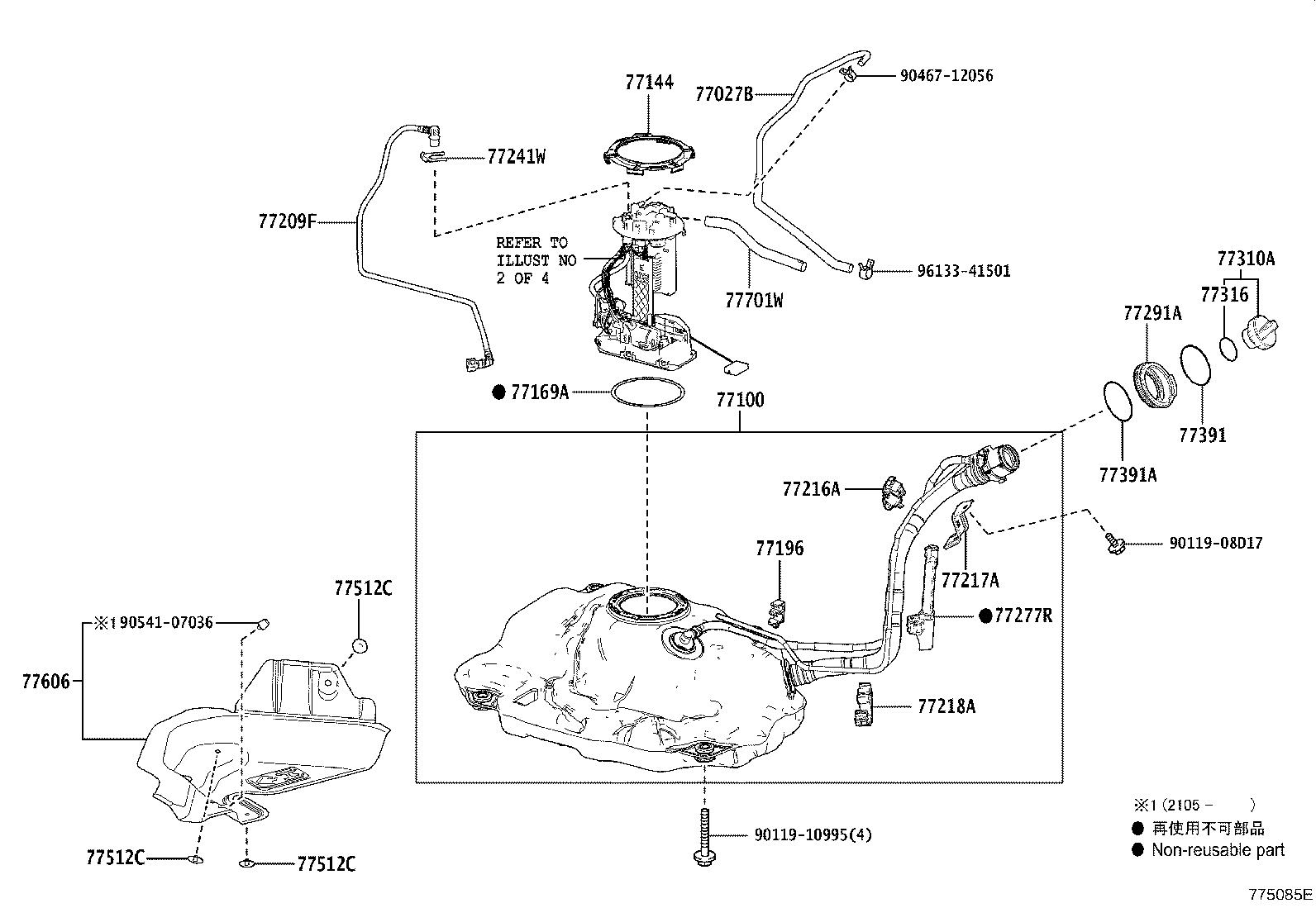

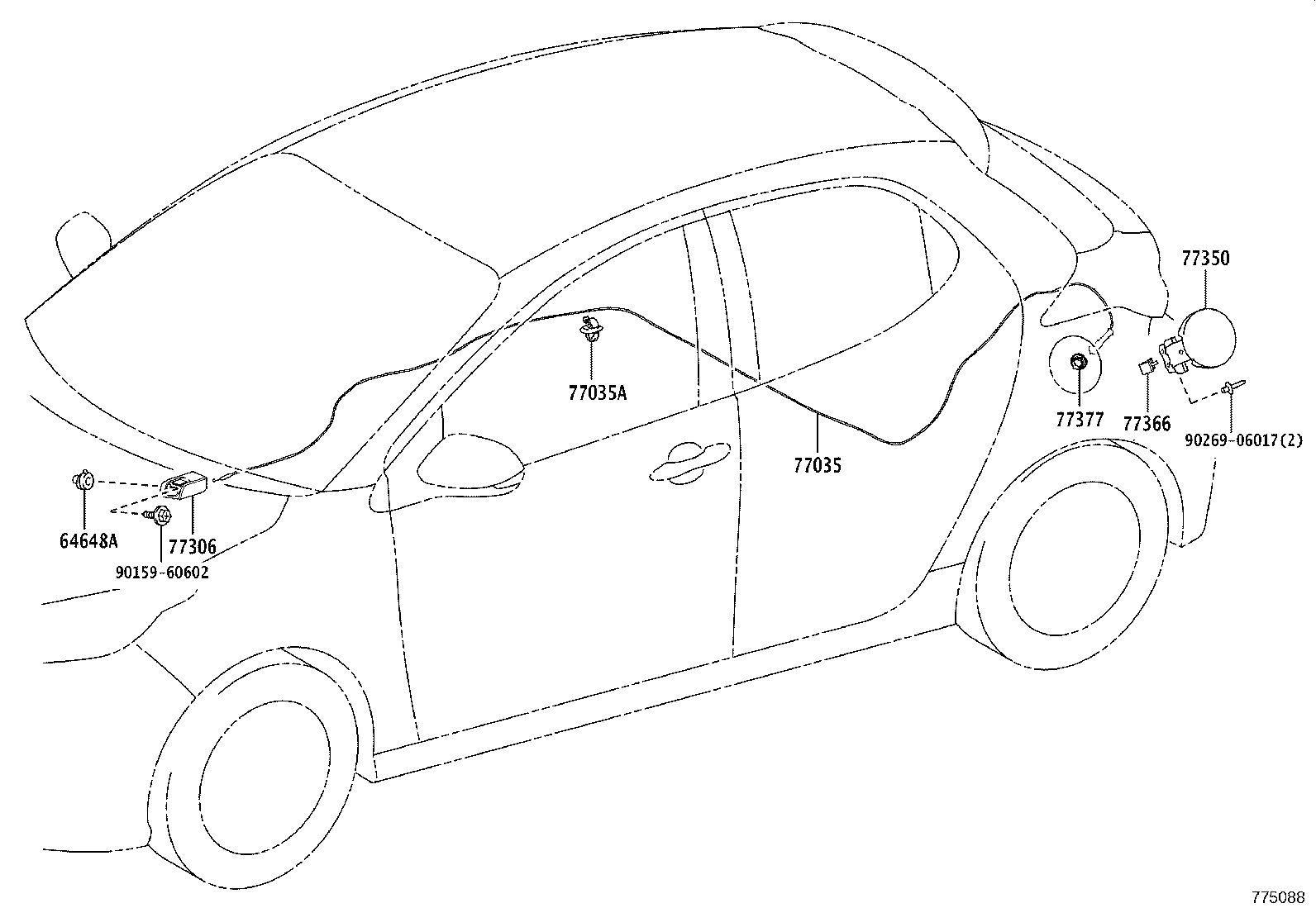

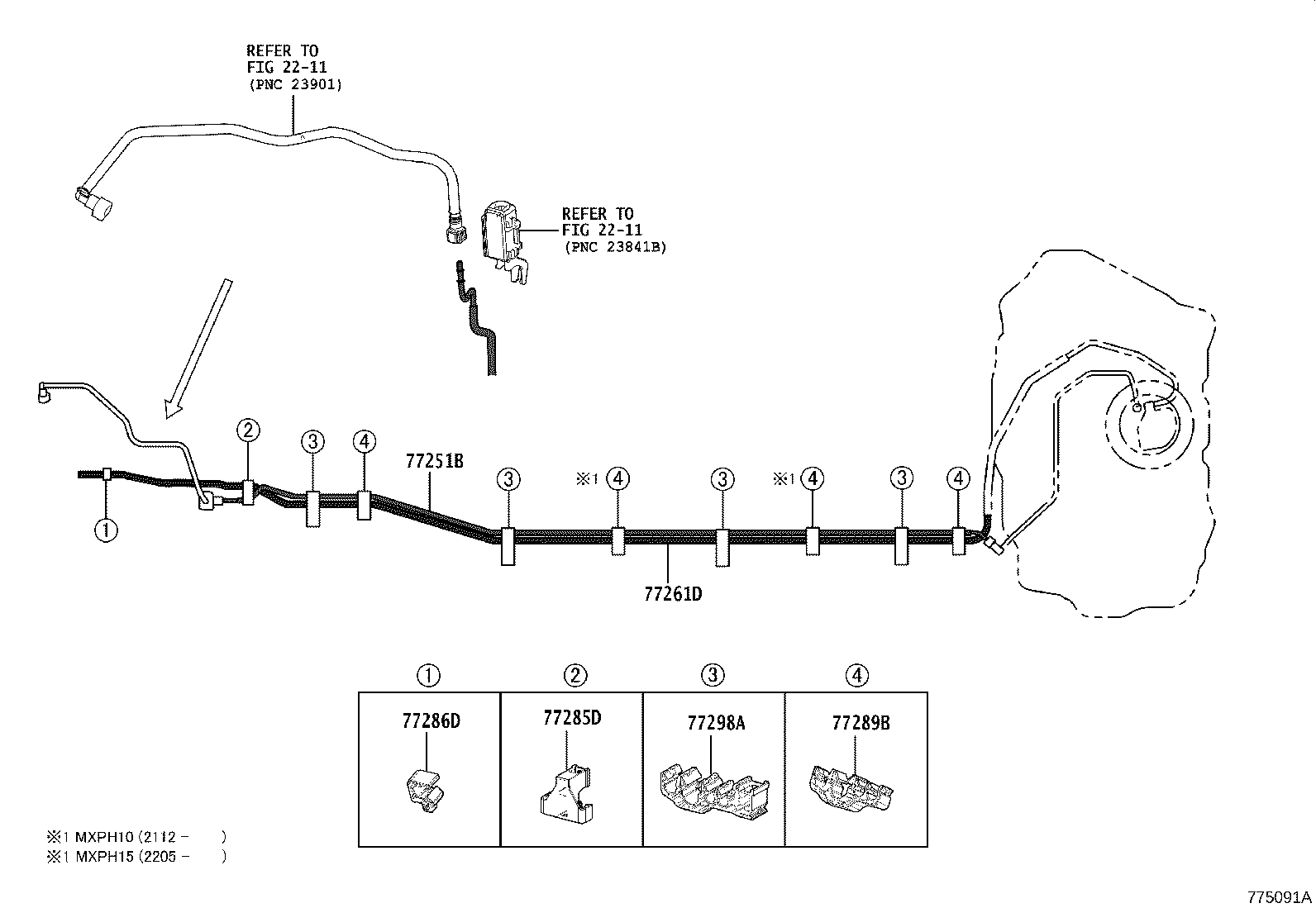

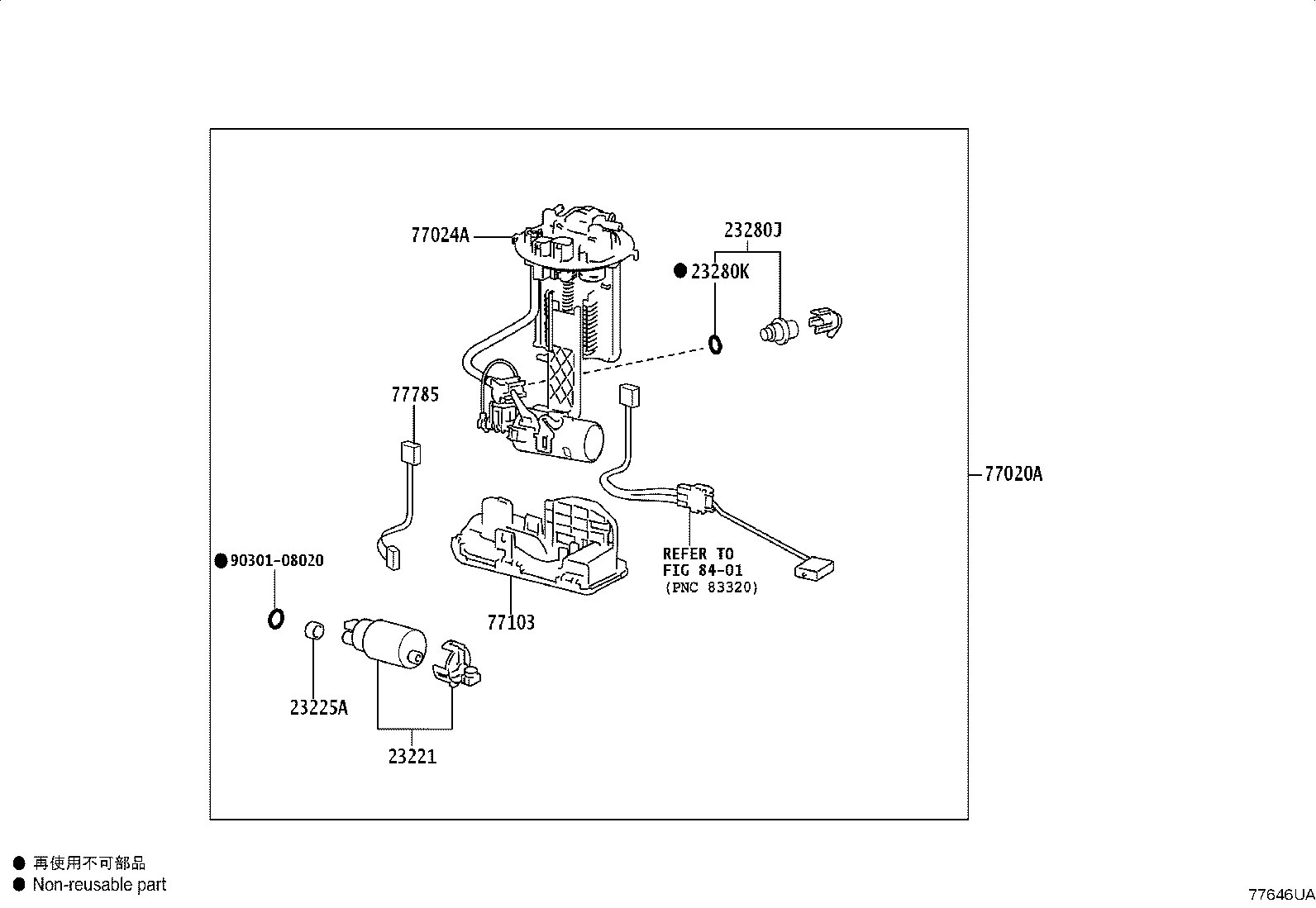

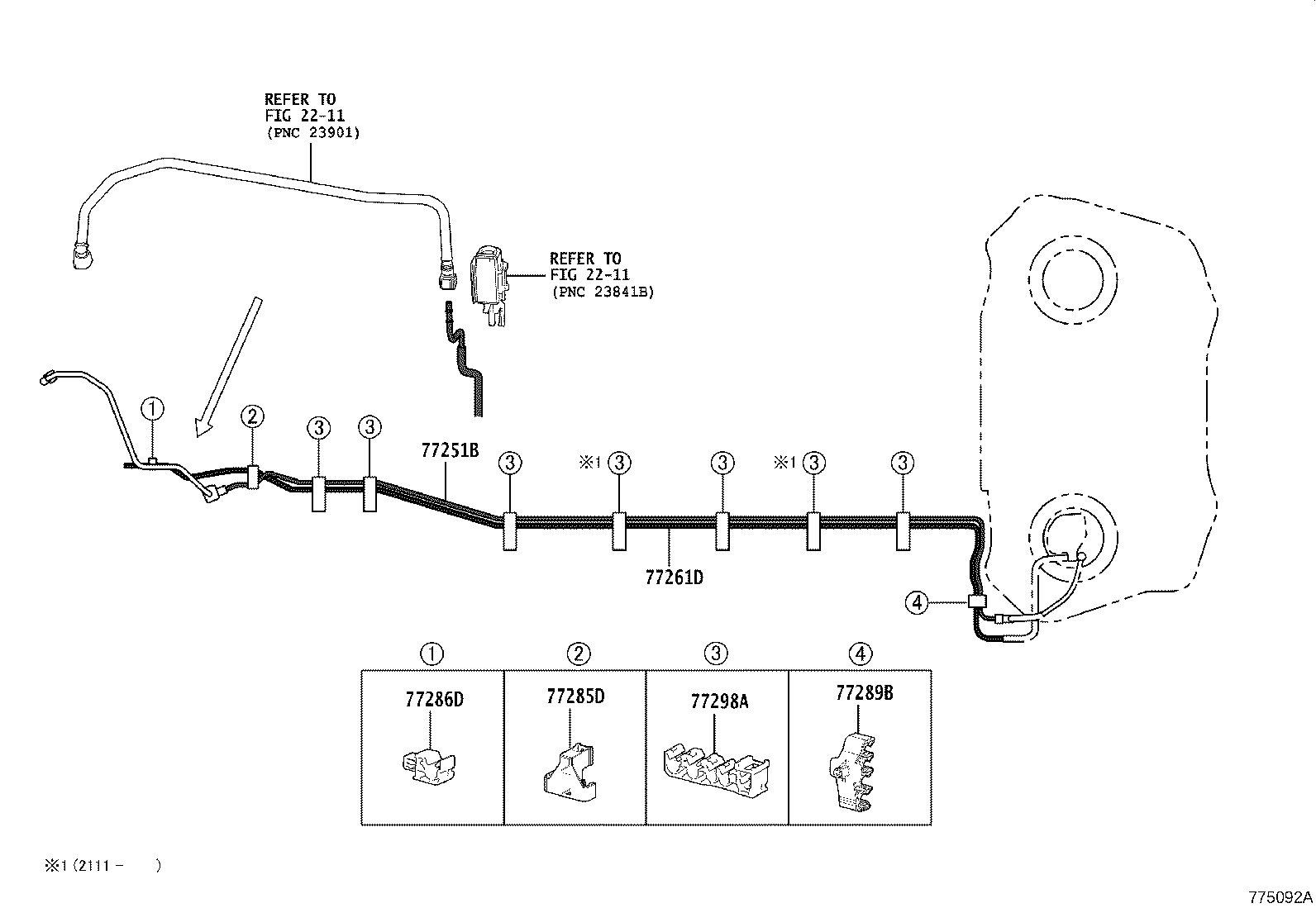

Figure 775097D 775097D 2020-02 → — Figure 775084E 775084E 2020-02 → — Figure 775085E 775085E 2020-02 → 2022-08 Figure 775835B 775835B 2022-08 → — Figure 7764C8 7764C8 2022-08 → — Figure 775086D 775086D 2020-03 → — Figure 775080D 775080D 2020-02 → — Figure 775081E 775081E 2020-02 → — Figure 775082E 775082E 2020-02 → — Figure 775083D 775083D 2020-03 → — Figure 77646SA 77646SA 2024-01 → — Figure 77646T 77646T 2024-01 → — Figure 77646UA 77646UA 2024-01 → — Figure 775089 775089 2020-02 → — Figure 775090A 775090A 2020-02 → — Figure 775091A 775091A 2020-02 → — Figure 775092A 775092A 2020-03 → — Figure 775088 775088 2020-02 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
64648A Grommet, Luggage Door Lock Opener
77010 Tube Assy, Fuel Tank Vent
77016H Tube Sub-assy, Fuel Return Vent

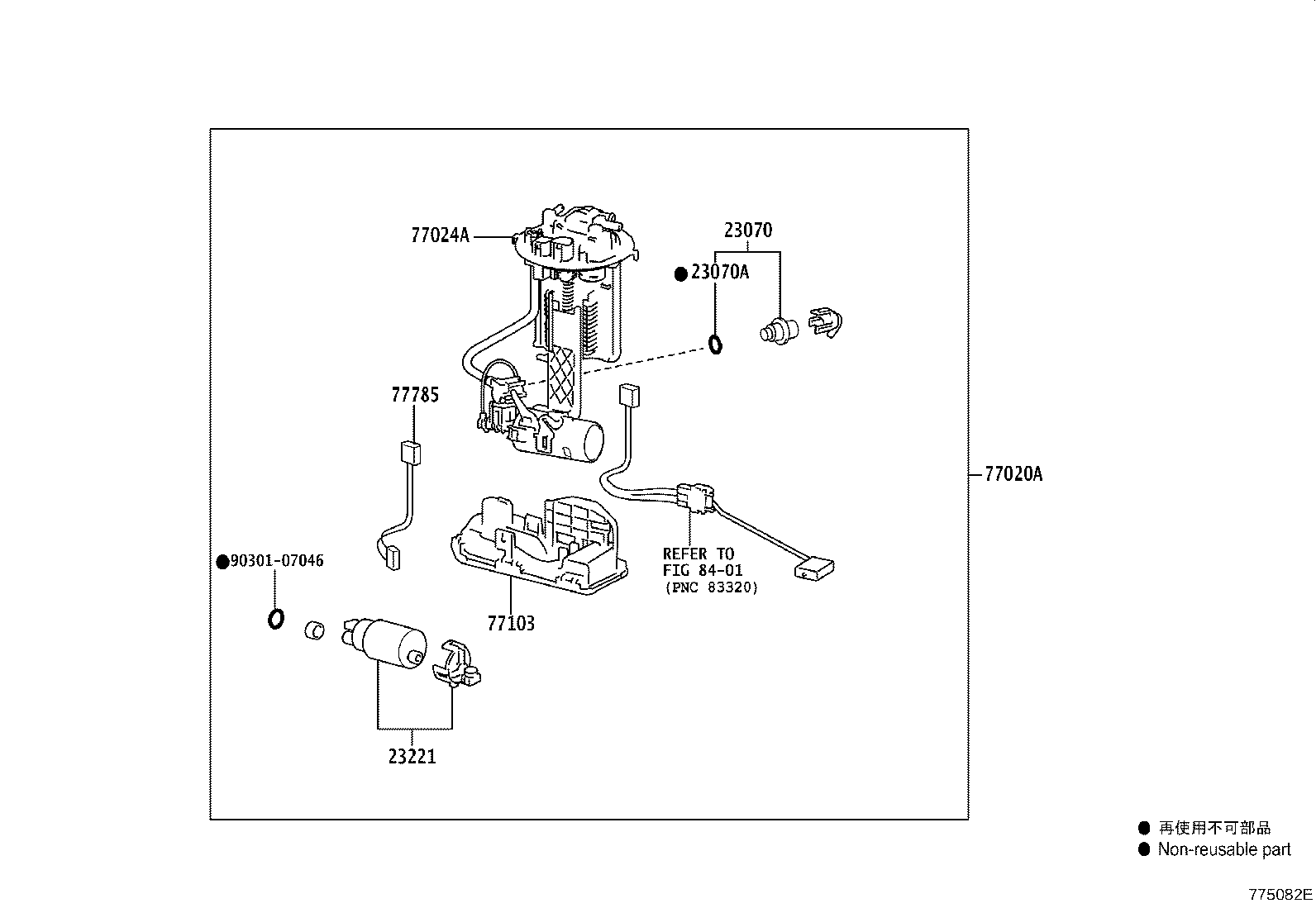

77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77027B Tube Sub-assy, Fuel Emission, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)

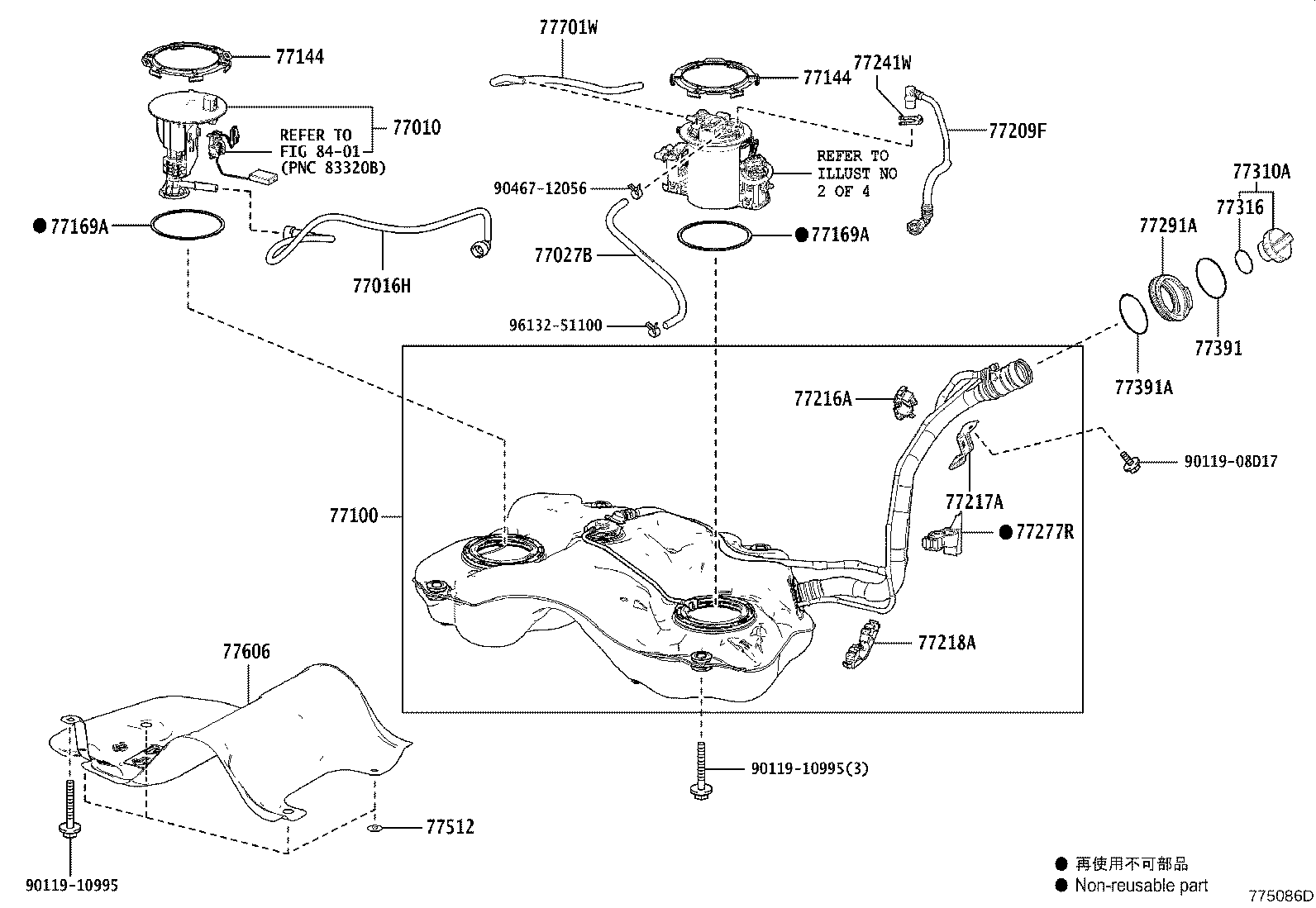

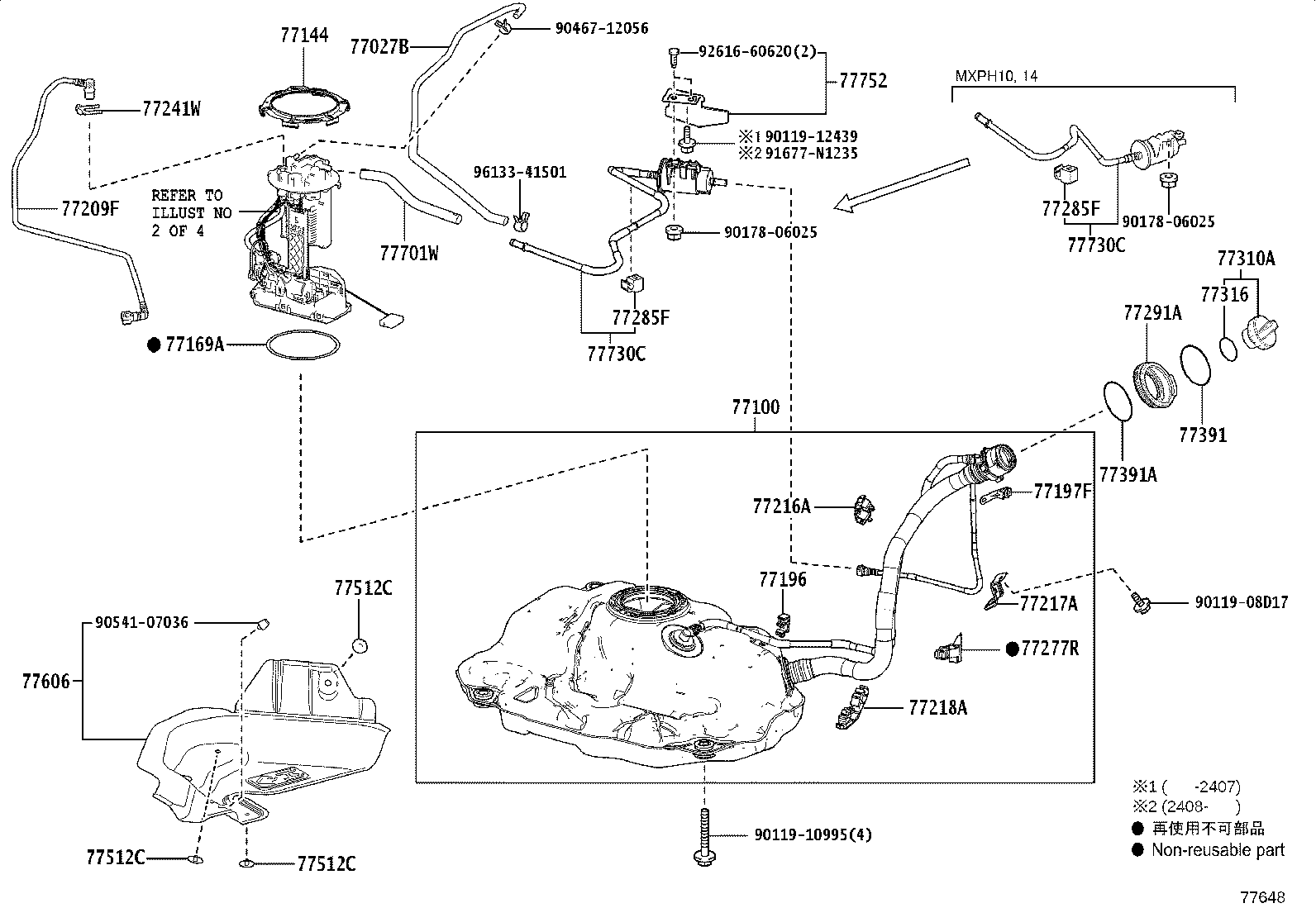

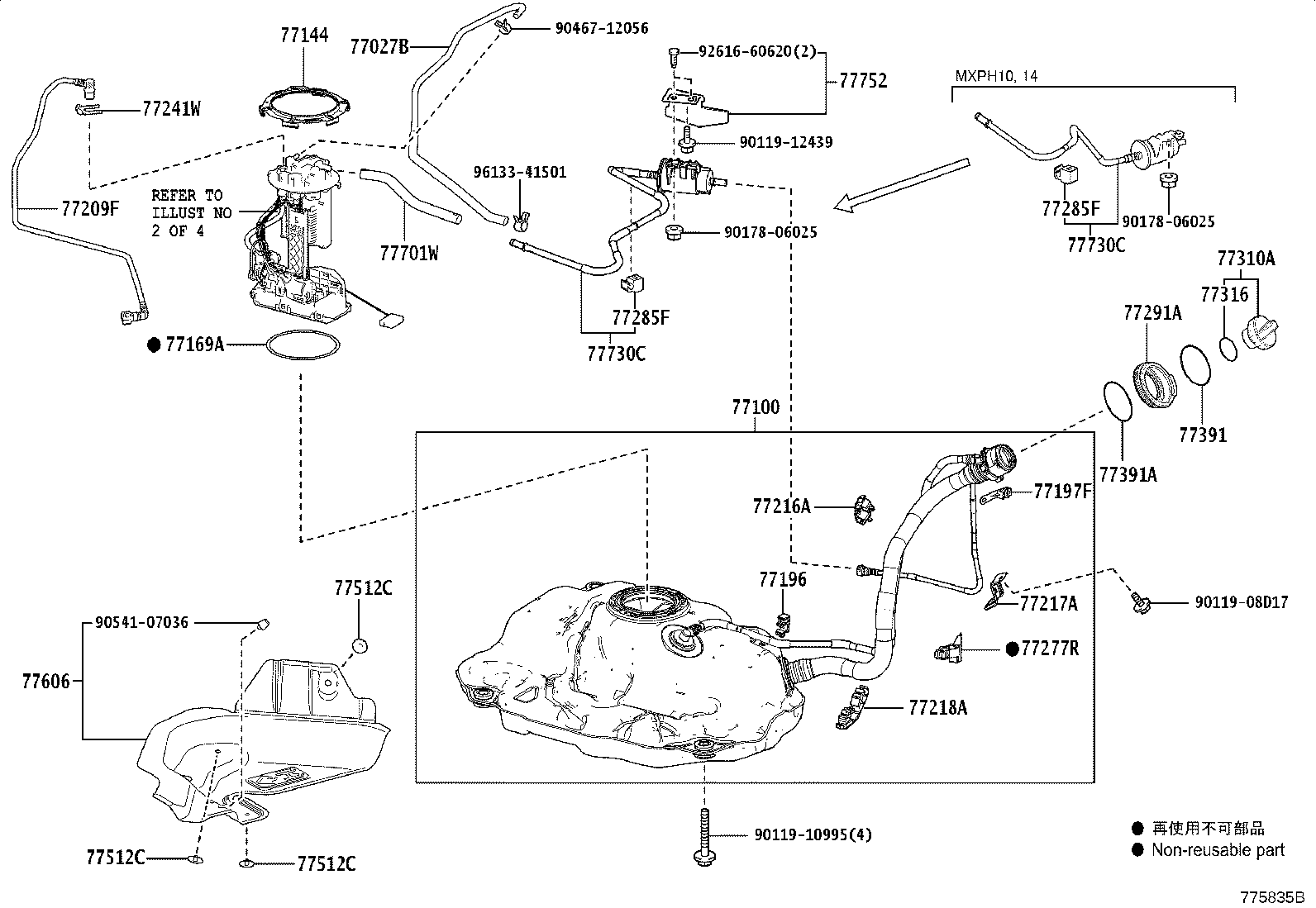

77100 Tank Assy, Fuel
77103 Sub-tank Sub-assy, Fuel
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77175 Support, Fuel Suction, NO.2
77196 Clamp, Evaporation Vent Tube, NO.1
77197F Clamp, Evaporation Vent Tube, NO.2
77209F Tube Sub-assy, Fuel Tank Main
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77241W Clip, Tube Joint
77251B Tube, Fuel Main

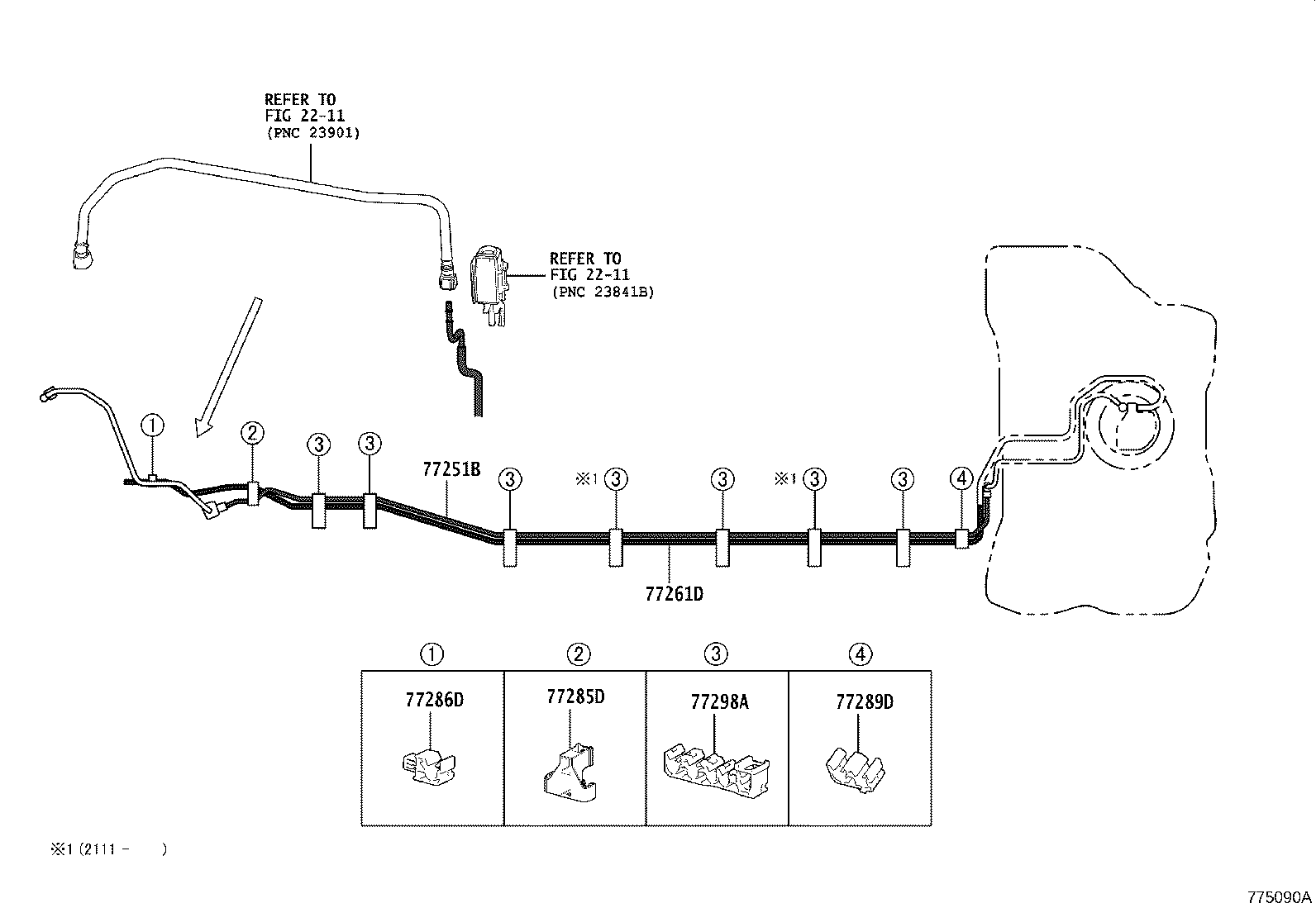

77261D Tube, Fuel Tank TO Canister
77277R Protector, Fuel Tank Filler Pipe
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77289B Clamp, Fuel Tube, NO.3
77289D Clamp, Fuel Tube, NO.5
77291A Shield, Fuel Tank Filler Pipe
77298A Clamp, Fuel Tube, NO.4
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77512 Bracket, Fuel Tank, Rear
77512C Bracket, Fuel Tank
77606 Protector Sub-assy, Fuel Tank, NO.1
77701W Hose Sub-assy, Canister Outlet, NO.1
77730C Canister Assy, Charcoal, NO.2
77752 Bracket, Charcoal Canister Support
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
