Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01

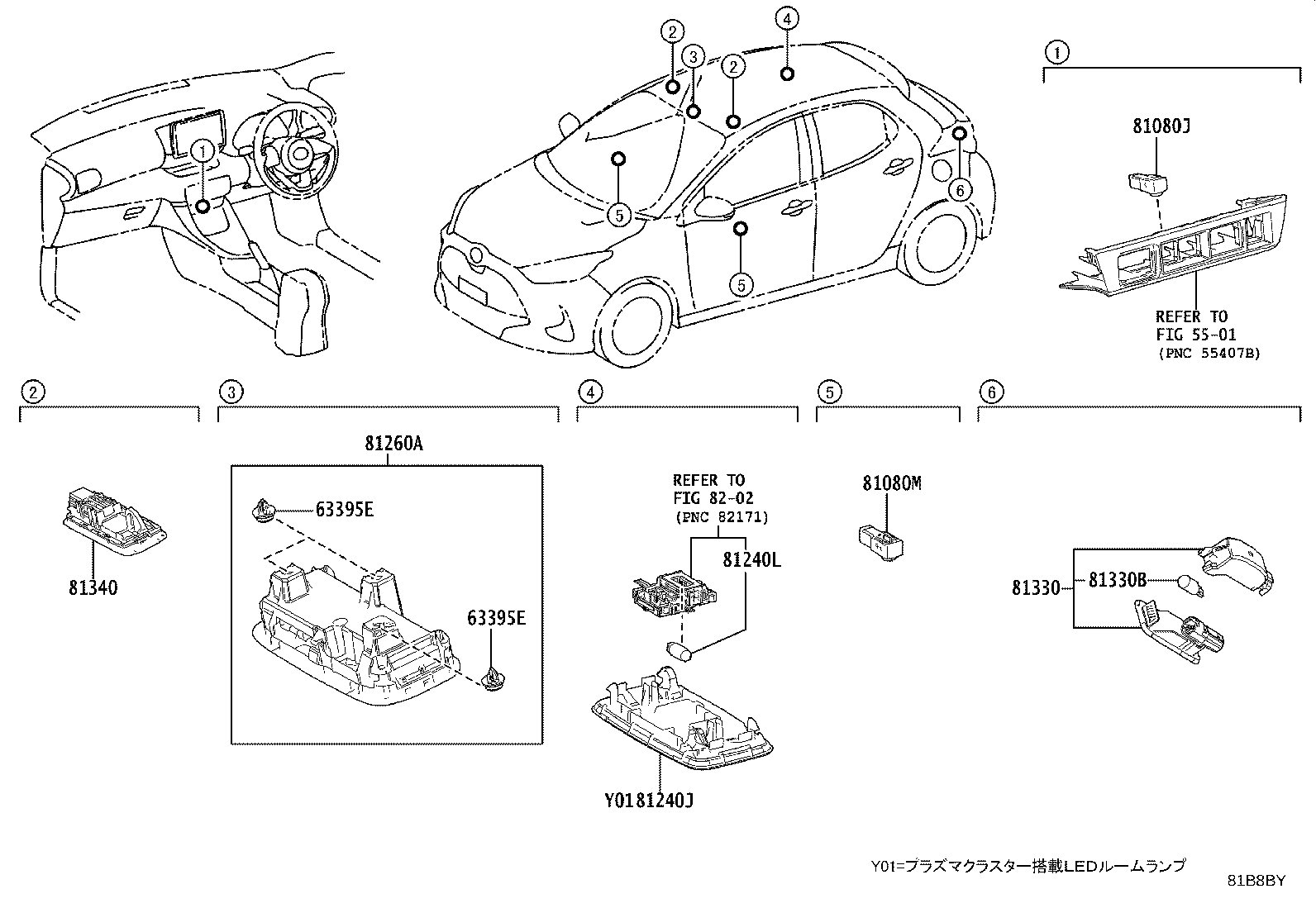

Interior Lamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81240J | Lamp Assy, Room |
| 81240L | Bulb, Room Lamp |
| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
