Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

7 part groups · 4 illustrations

Illustrations

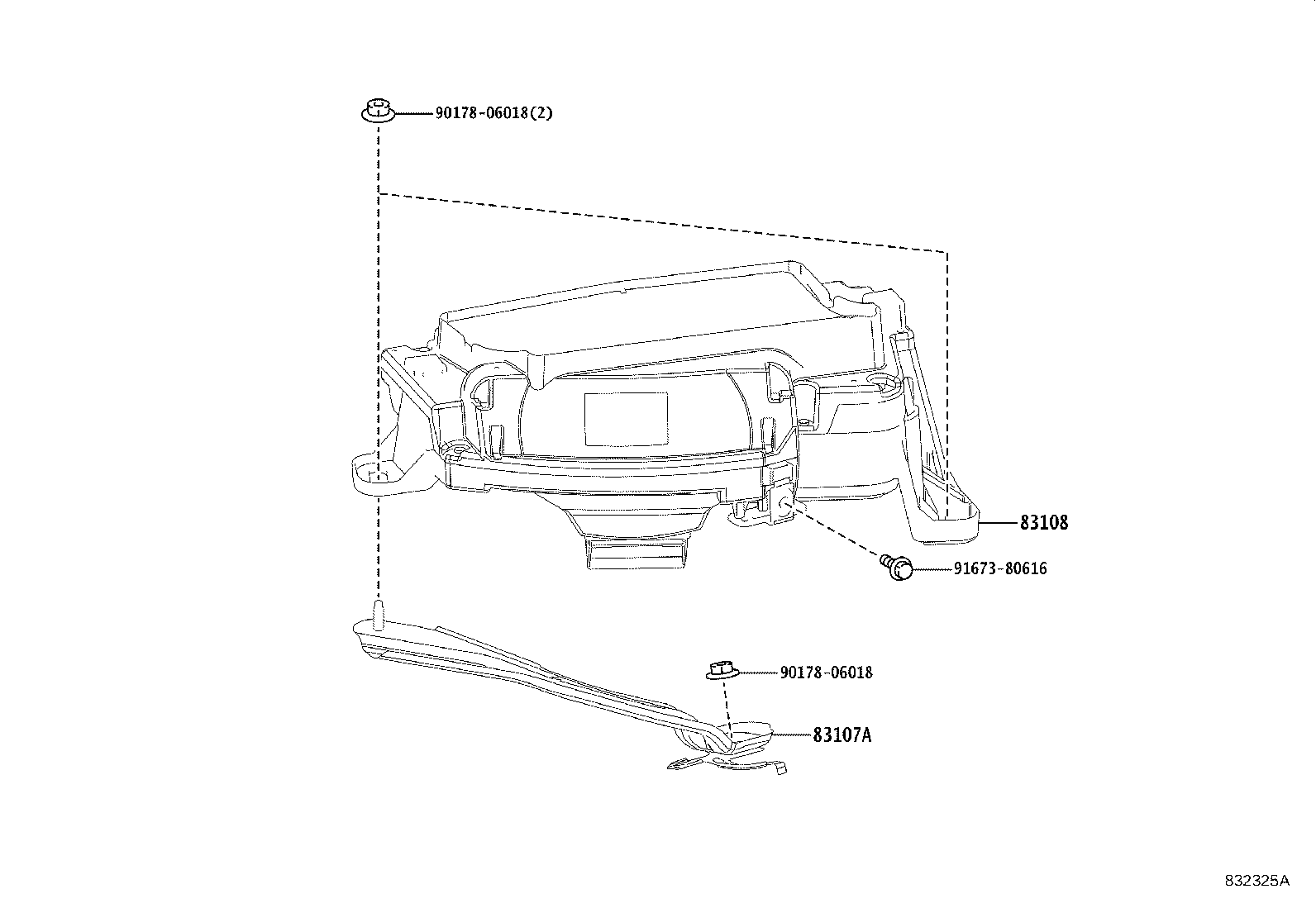

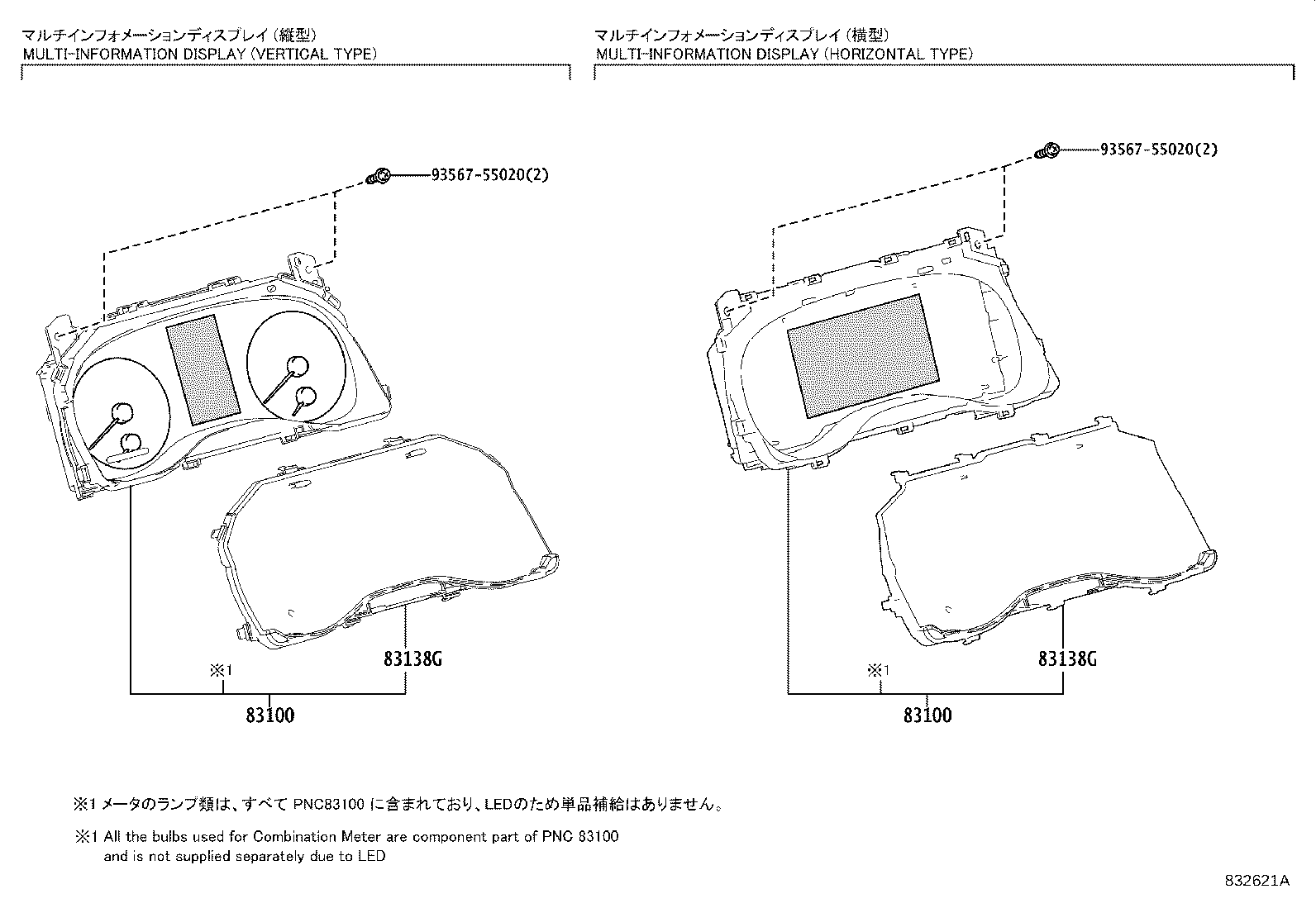

Figure 832324A 832324A 2020-02 → 2024-01 Figure 832324A 832324A 2020-02 → — Figure 832621A 832621A 2024-01 → — Figure 832325A 832325A 2020-02 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83107A Bracket Sub-assy, Meter, NO.1
83108 Mirror Sub-assy, Meter
83134B Cover, Combination Meter, NO.2
83134D Cover, Combination Meter, NO.3
83138G Glass, Combination Meter
83821A Cover, Combination Meter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
