Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

16 part groups · 3 illustrations

Illustrations

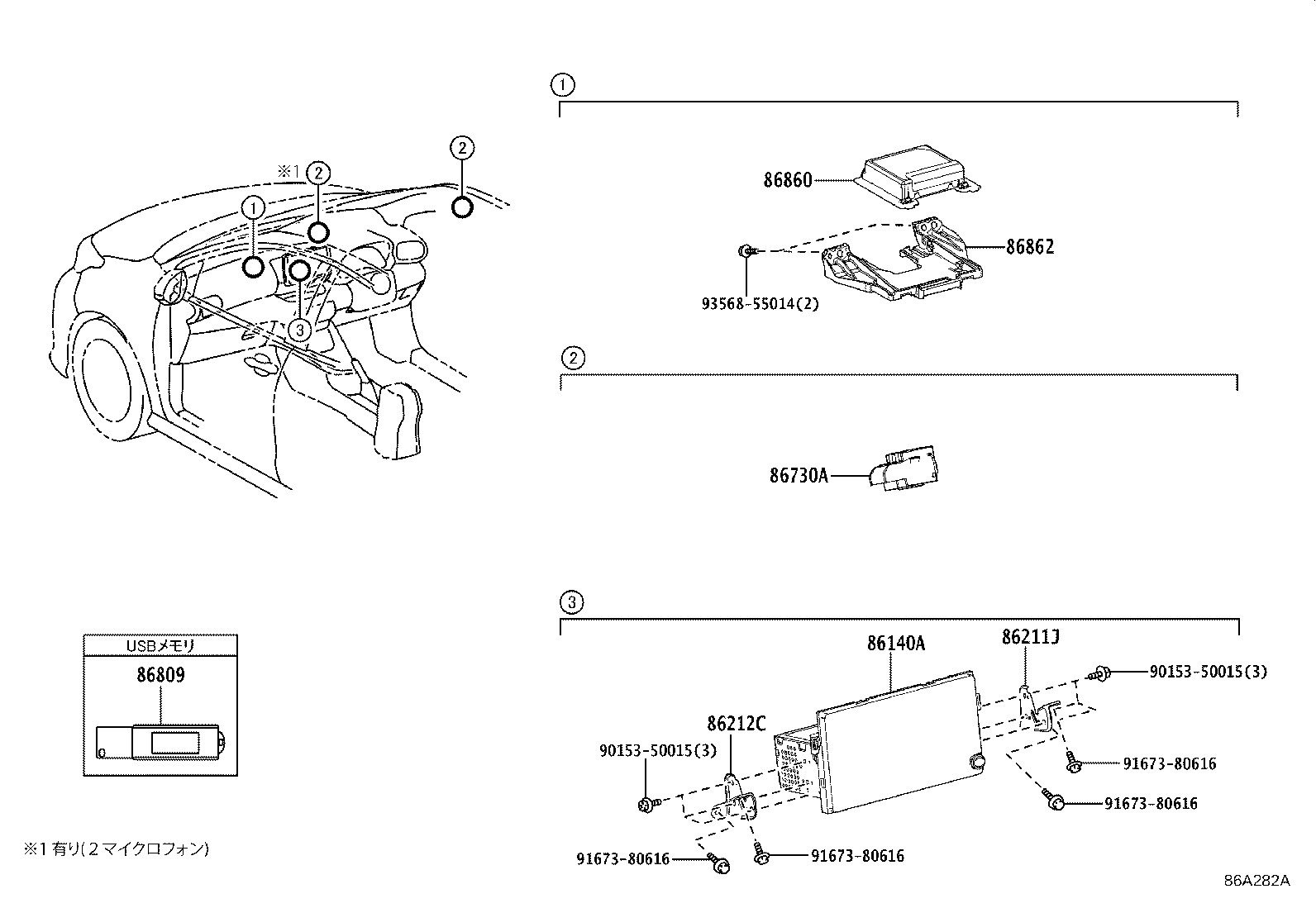

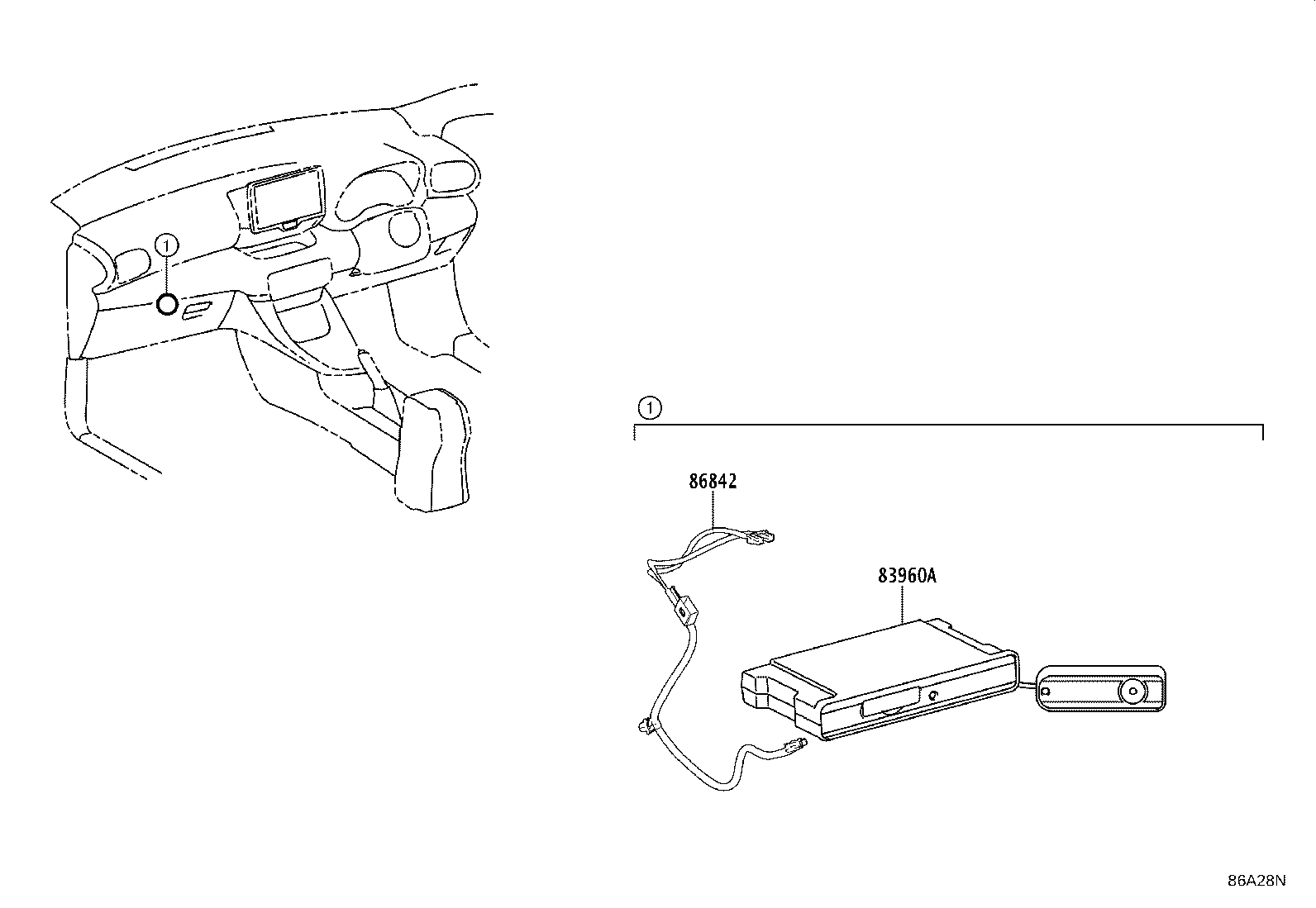

Figure 867999C 867999C 2020-02 → 2024-01 Figure 86A282A 86A282A 2024-01 → — Figure 86A28N 86A28N 2024-01 → —

Part groups

PNCDescription
83960A Memorizer Assy
86007 Computer Set, Navigation
86017C Fitting Set, Navigation Setting
86101H Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86809 Usb Set, Usb Memory Navigation Data
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86844 Retainer, Navigation Computer Cover
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
