Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

14 part groups · 2 illustrations

Illustrations

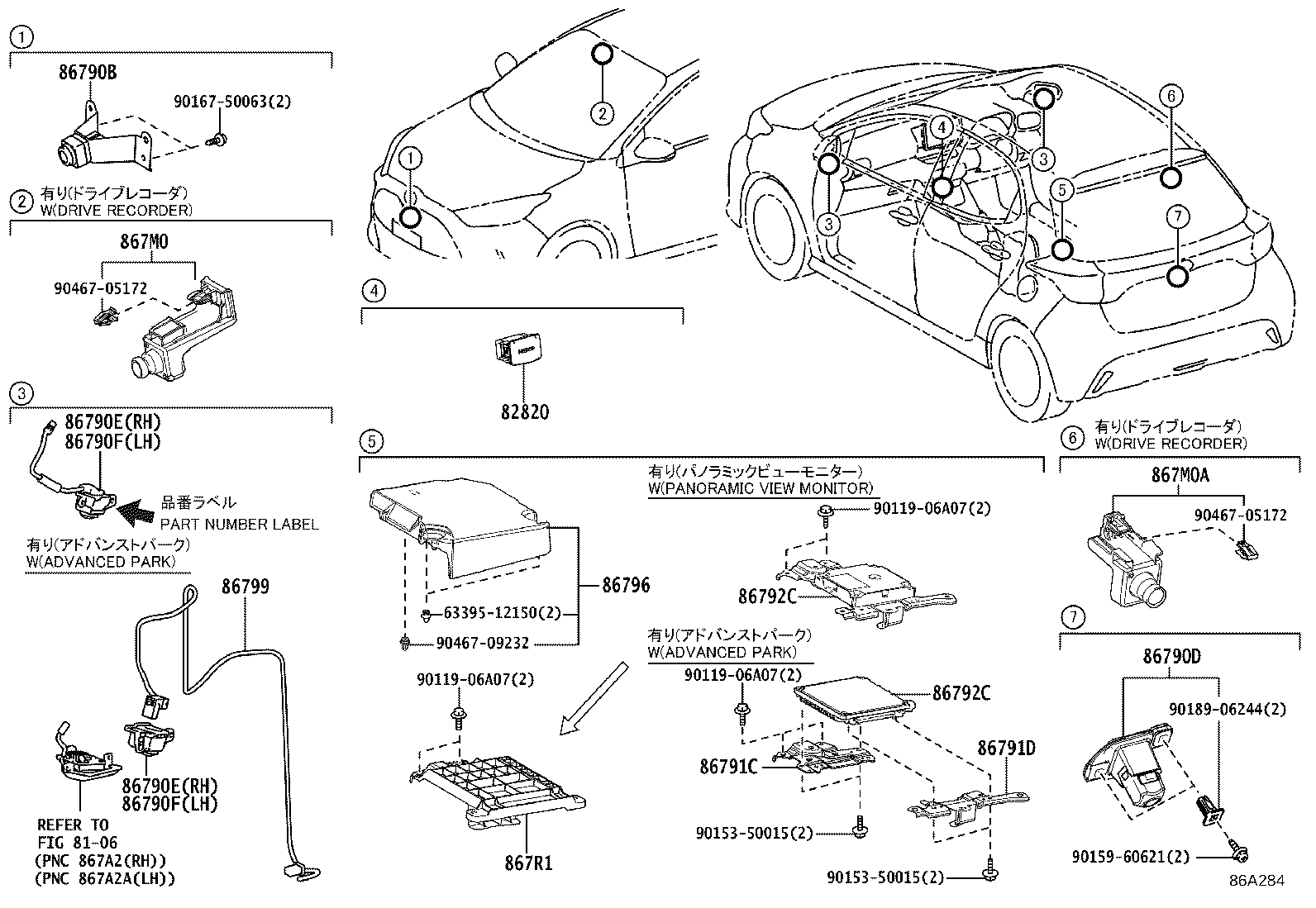

Figure 868003F 868003F 2020-02 → — Figure 86A284 86A284 2024-01 → —

Part groups

PNCDescription
82820 Cover, Connector
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86791C Bracket, Computer Parking Assist, NO.1
86791D Bracket, Computer Parking Assist, NO.2
86792C Computer, Parking Assist
86796 Cover, Computer Parking Assist
86799 Wire, Television Camera
867A3 Circuit, Light Parking Assist
867M0 Camera Assy, Drive Recorder, Front
867M0A Camera Assy, Drive Recorder, Rear
867R1 Connector, Computer Parking Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
