Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 4 illustrations

Illustrations

Figure 87I629

87I629 2020-02 → —

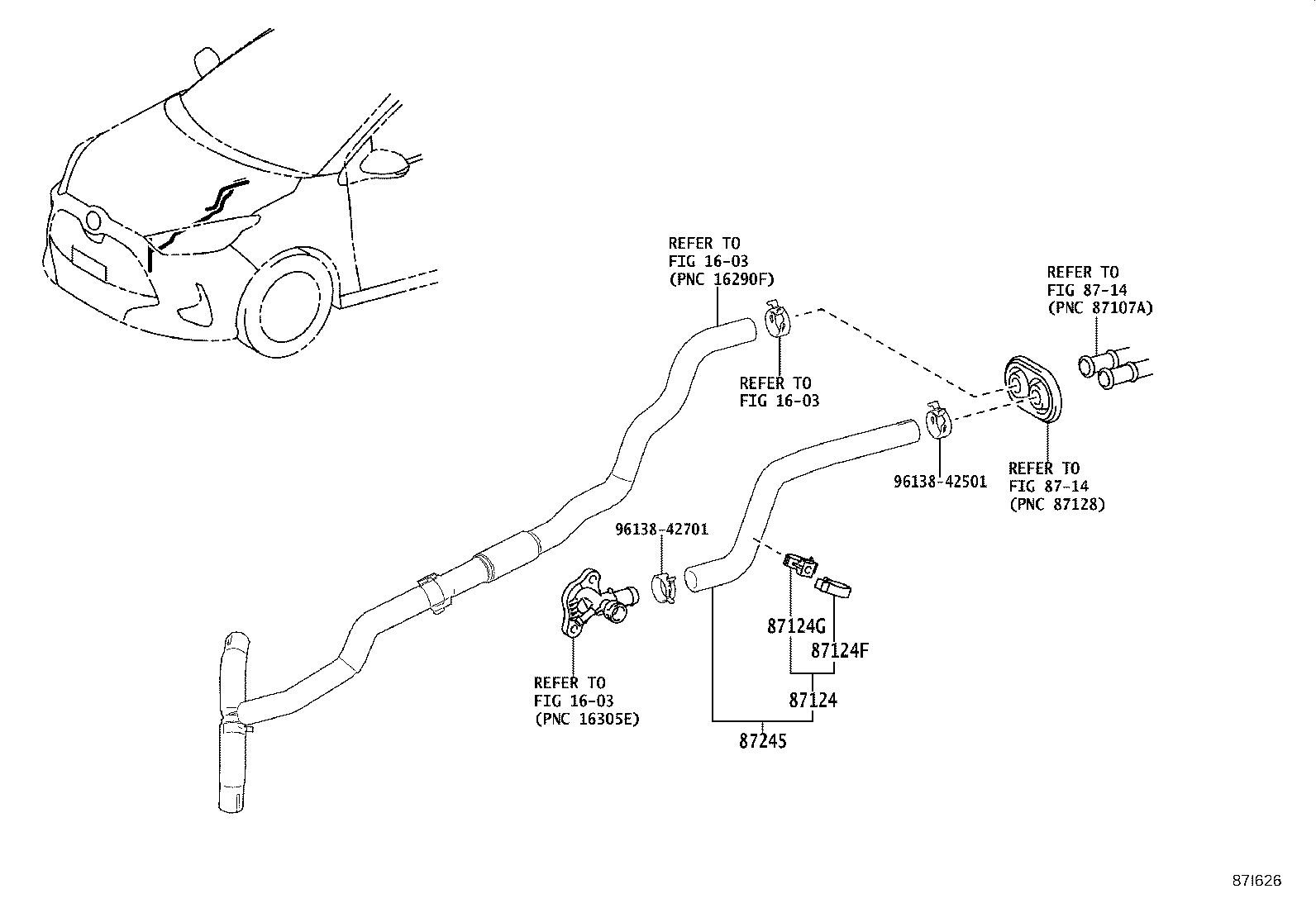

Figure 87I626

87I626 2020-02 → —

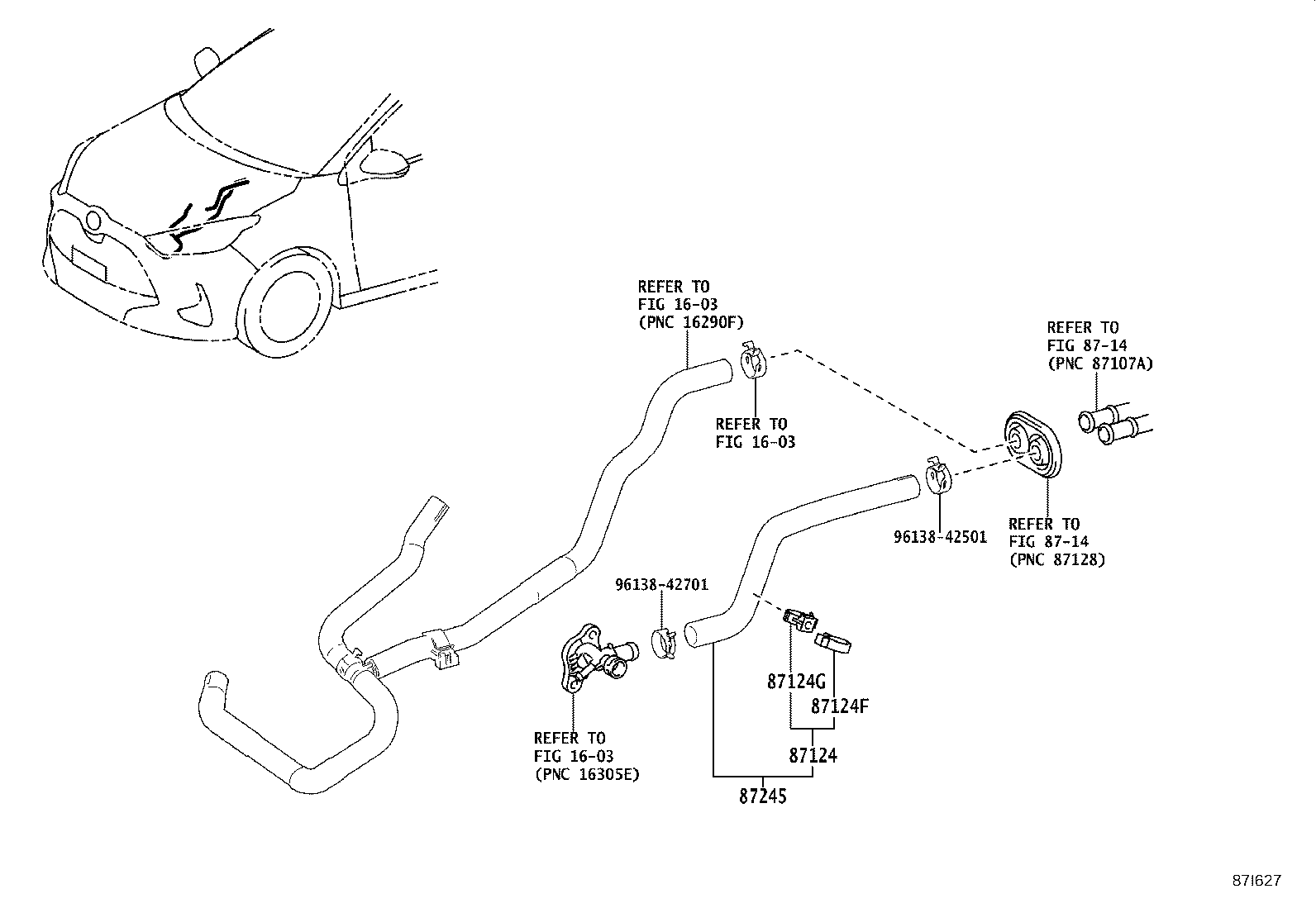

Figure 87I627

87I627 2020-02 → —

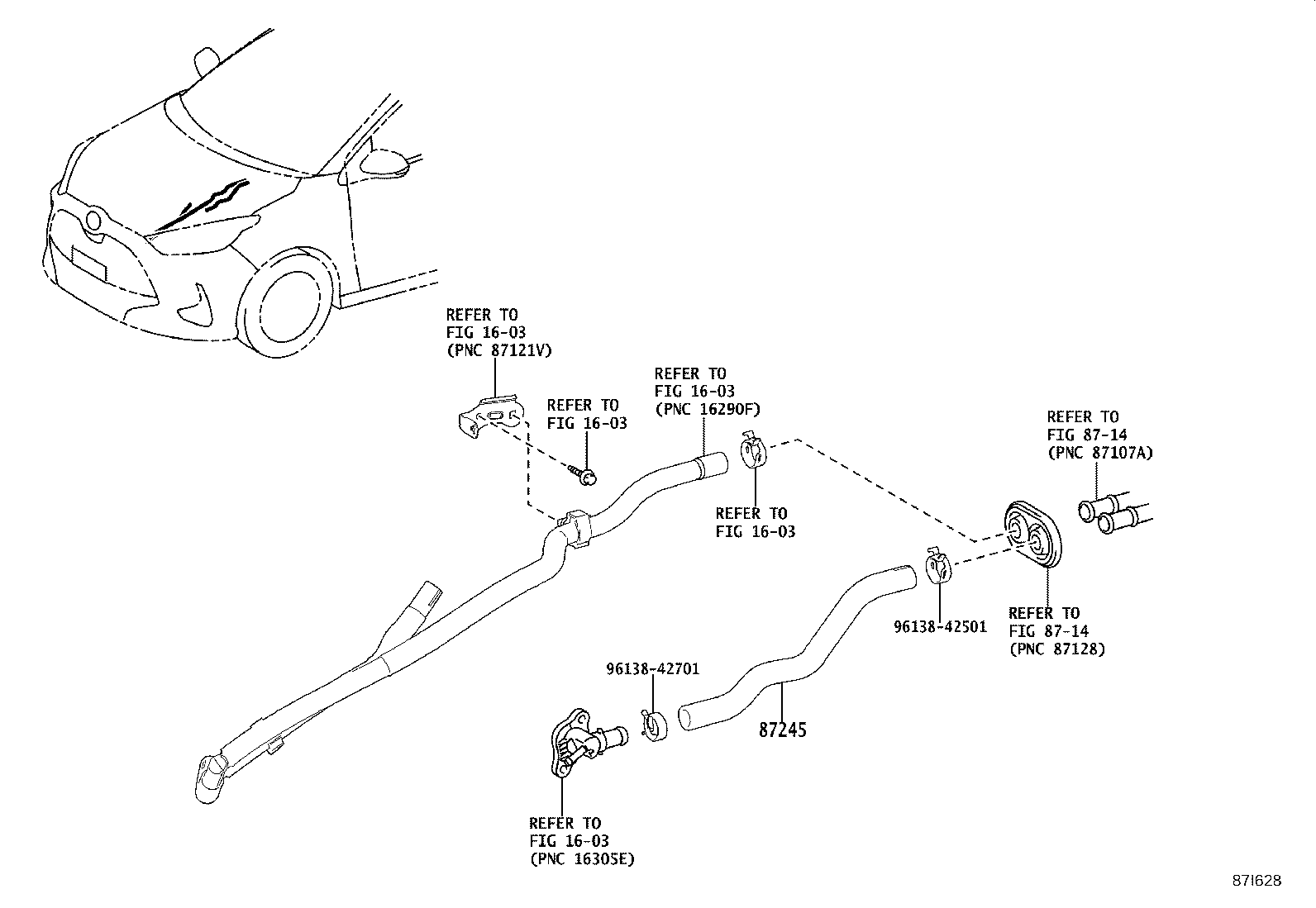

Figure 87I628

87I628 2020-02 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87245	Hose, Heater Water, Inlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
