Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 3 illustrations

Illustrations

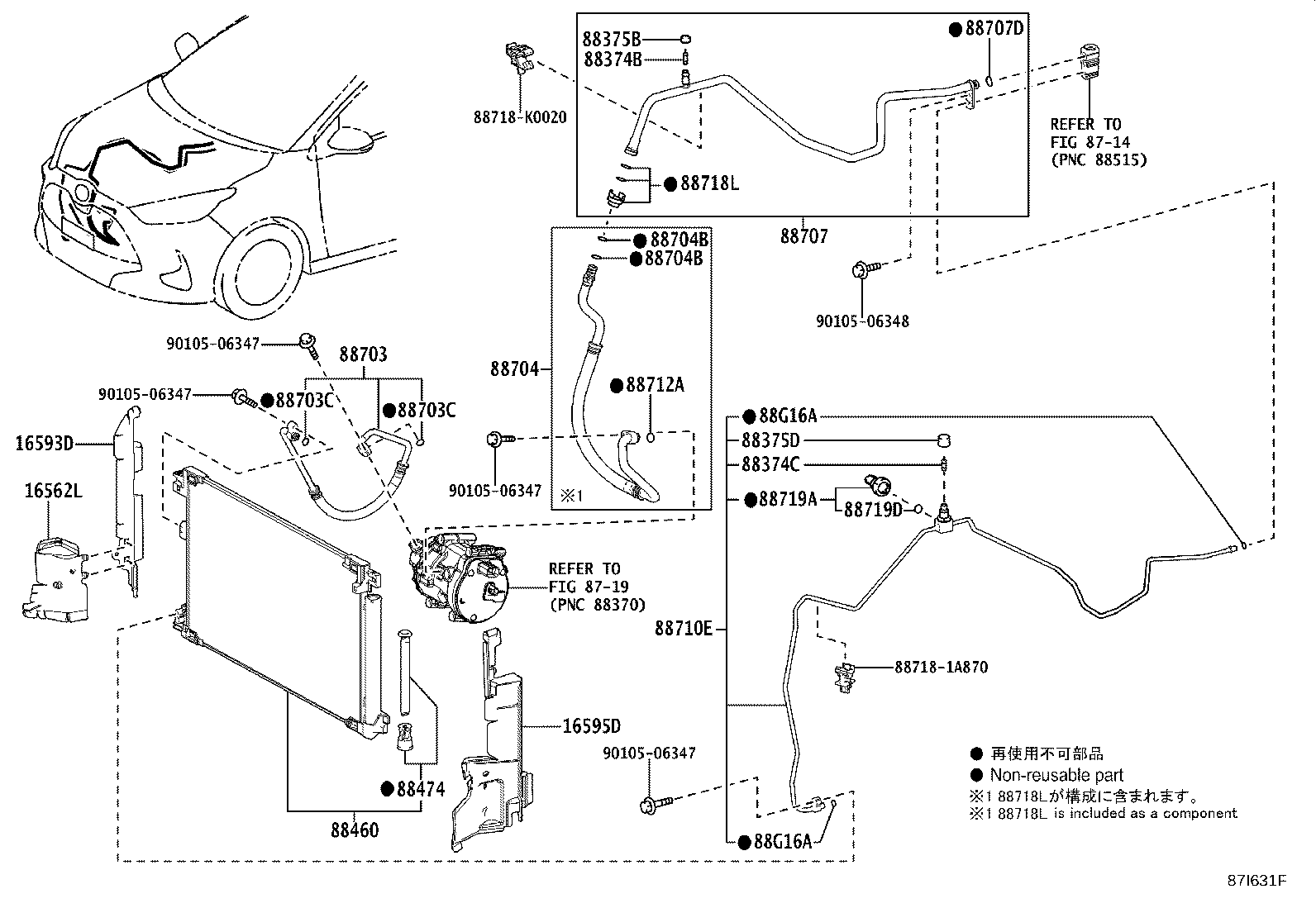

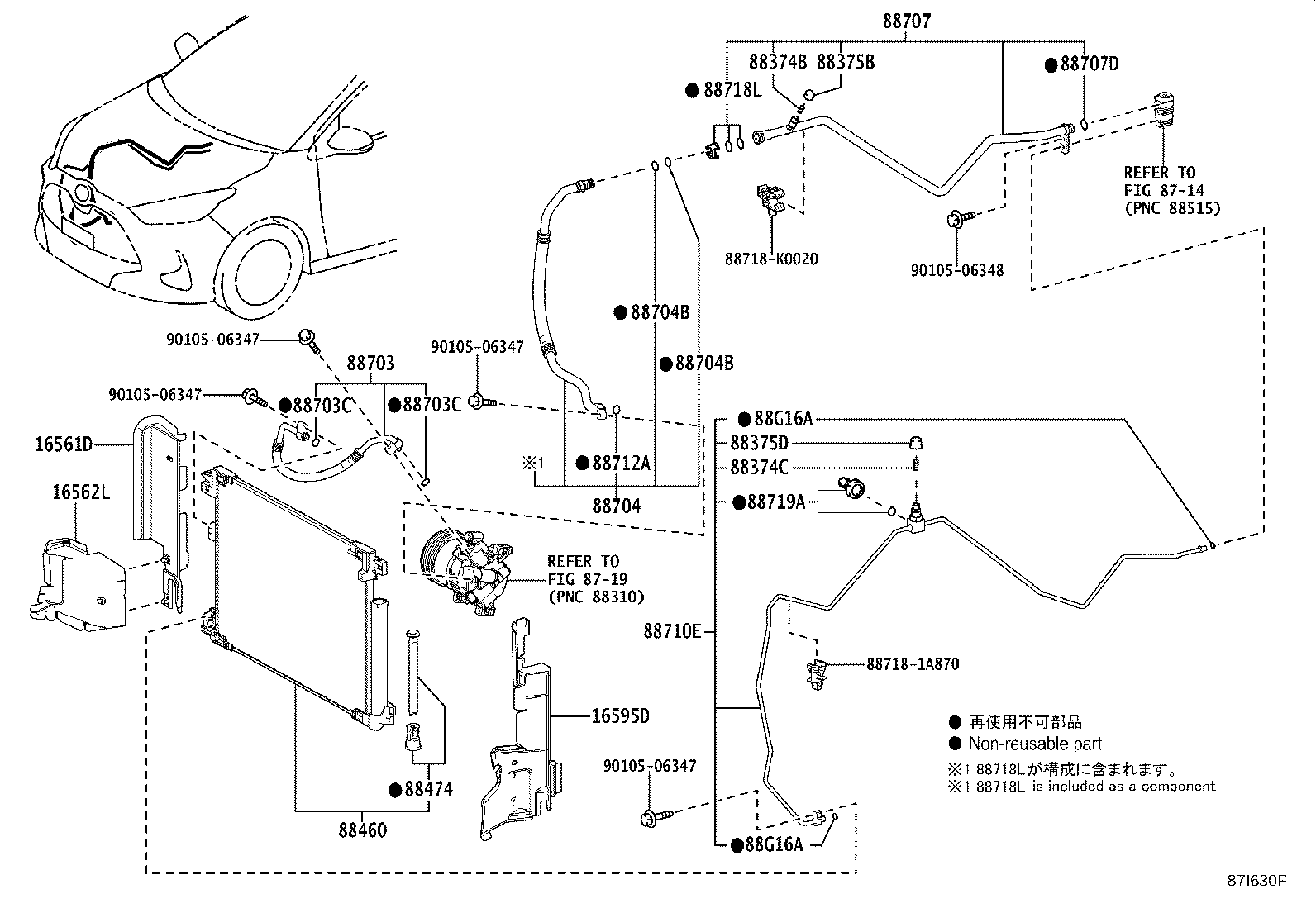

Figure 87I632B 87I632B 2020-02 → — Figure 87I630F 87I630F 2020-02 → — Figure 87I631F 87I631F 2020-02 → —

Part groups

PNCDescription
16561D Seal, Radiator TO Support, NO.1
16562L Seal, Radiator TO Support, NO.2
16593D Guide, Radiator Air, NO.1 RH
16595D Guide, Radiator Air, NO.1 LH
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710Q Ring, O(FOR TUBE ASSY, AIR CONDITIONER)
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16C Ring, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
88G16D Ring, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
