Heating & Air Conditioning - Compressor

5 part groups · 3 illustrations

Illustrations

Figure 87I615

87I615 2020-02 → —

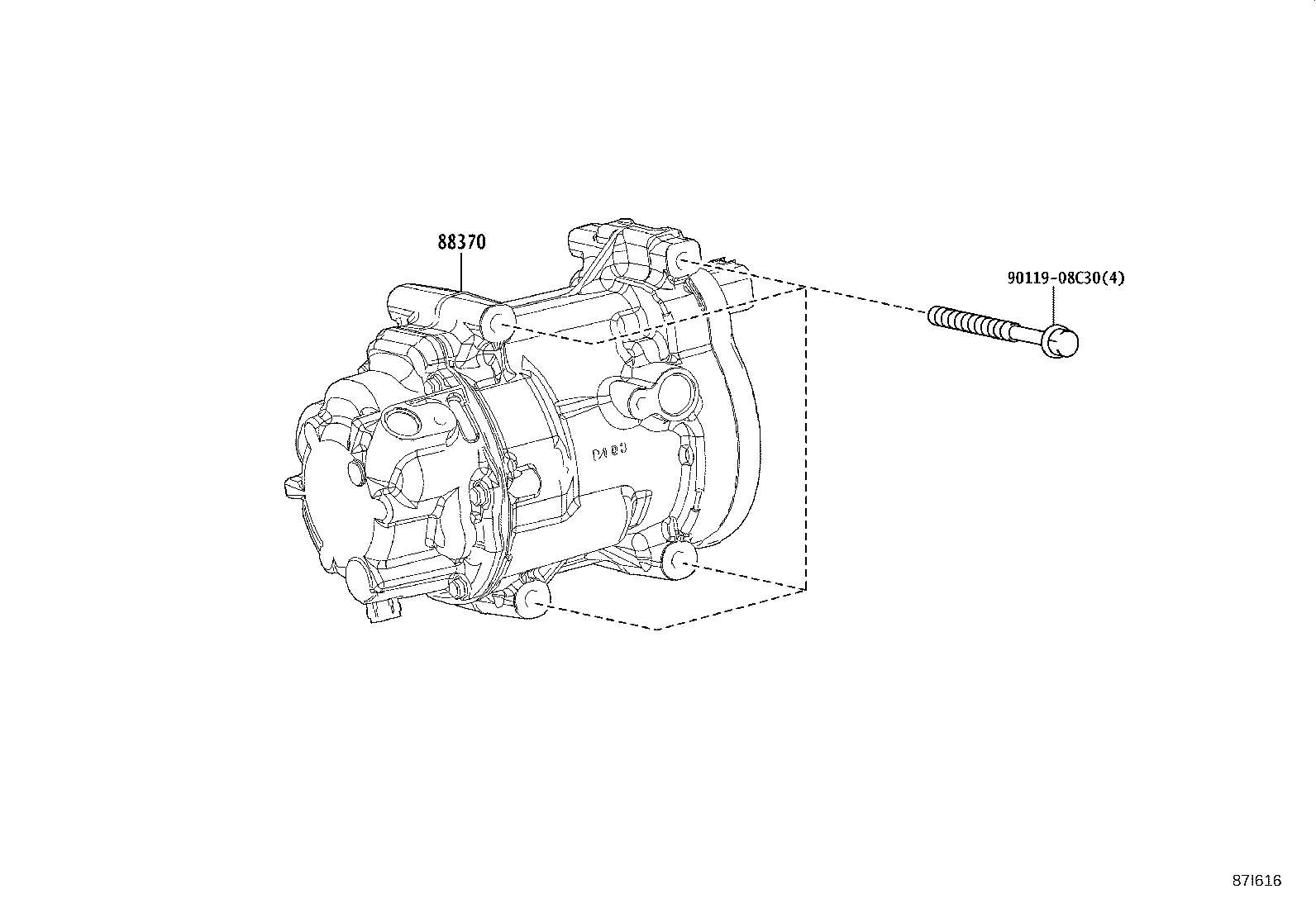

Figure 87I616

87I616 2020-02 → —

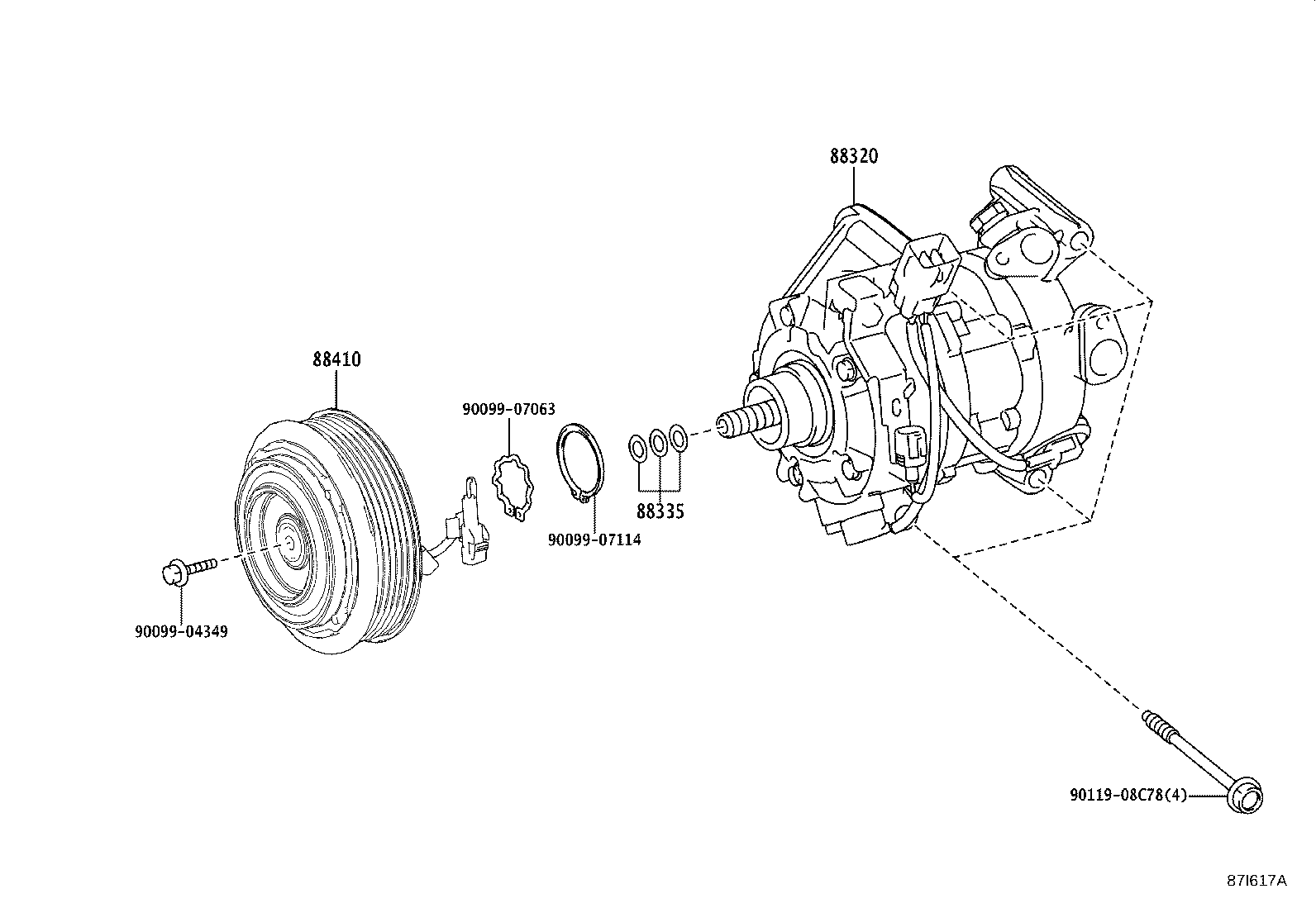

Figure 87I617A

87I617A 2020-02 → —

Part groups

PNC	Description
88310	Compressor Assy, W/Pulley
88320	Compressor Assy, Cooler
88335	Gasket Kit, Overhaul
88370	Compressor Assy, W/Motor
88410	Clutch Assy, Magnet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
