Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

22 part groups · 2 illustrations

Illustrations

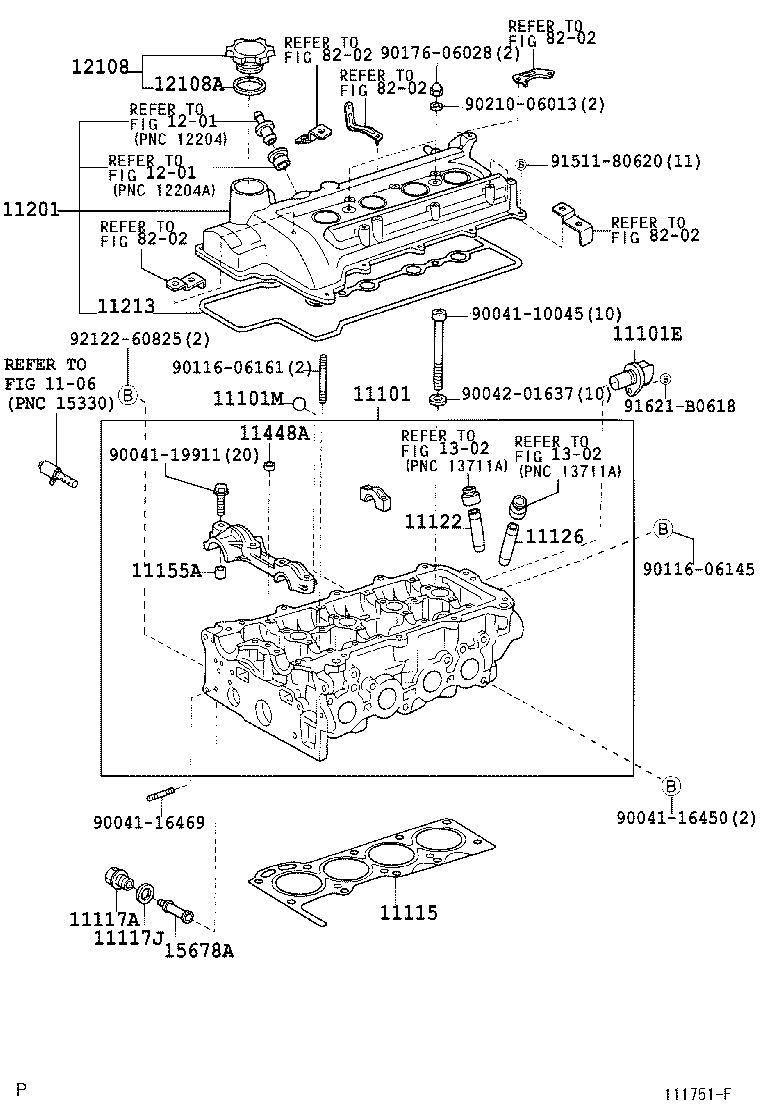

Figure 111266H 111266H 1998-09 → — Figure 111751F 111751F 2000-05 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101E Sensor, Cam Position
11101M Ball NO.1(FOR CYLINDER HEAD)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11117A Plug, W/Head Taper Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11155A Pin, Ring W/Head
11191A Gasket(FOR SPARK PLUG TUBE)
11201 Cover Sub-assy, Cylinder Head
11213 Gasket, Cylinder Head Cover
11219 Cover, Cylinder Head, NO.3
11448A Orifice, Cylinder Head Oil
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
