Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

14 part groups · 2 illustrations

Illustrations

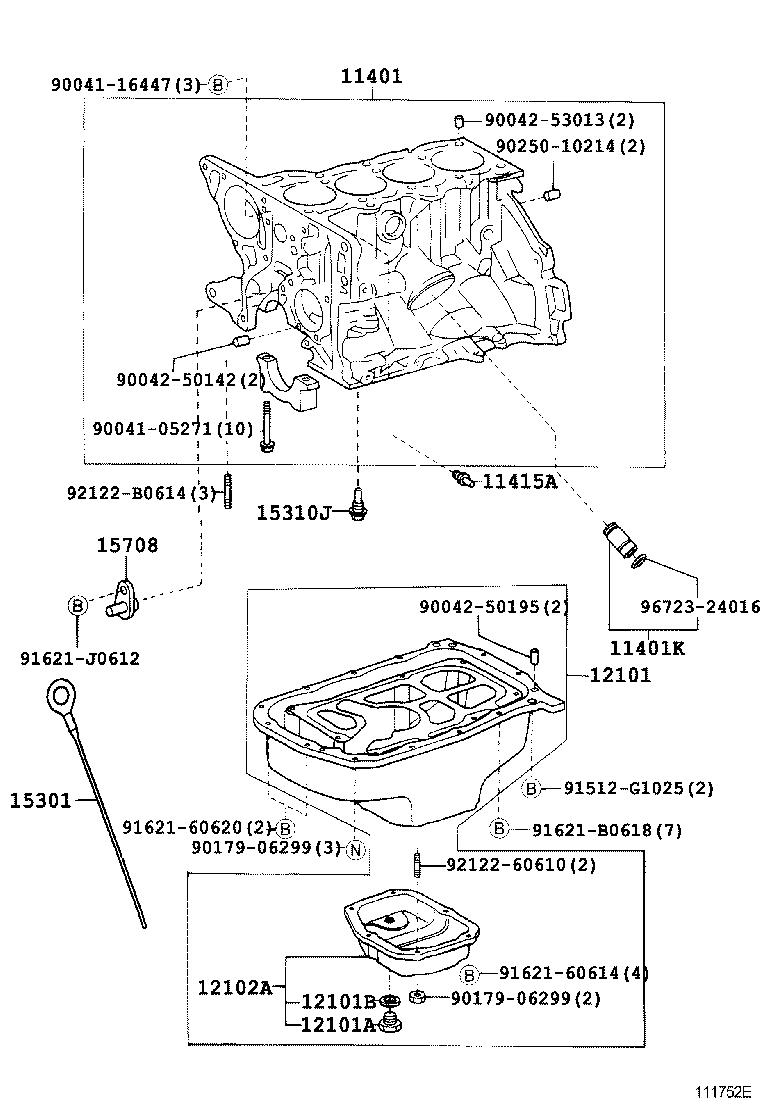

Figure 111267D 111267D 1998-09 → — Figure 111752E 111752E 2000-05 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401K Union(FOR OIL FILTER BRACKET)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15310J Regulator Assy, Oil
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
