Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

13 part groups · 3 illustrations

Illustrations

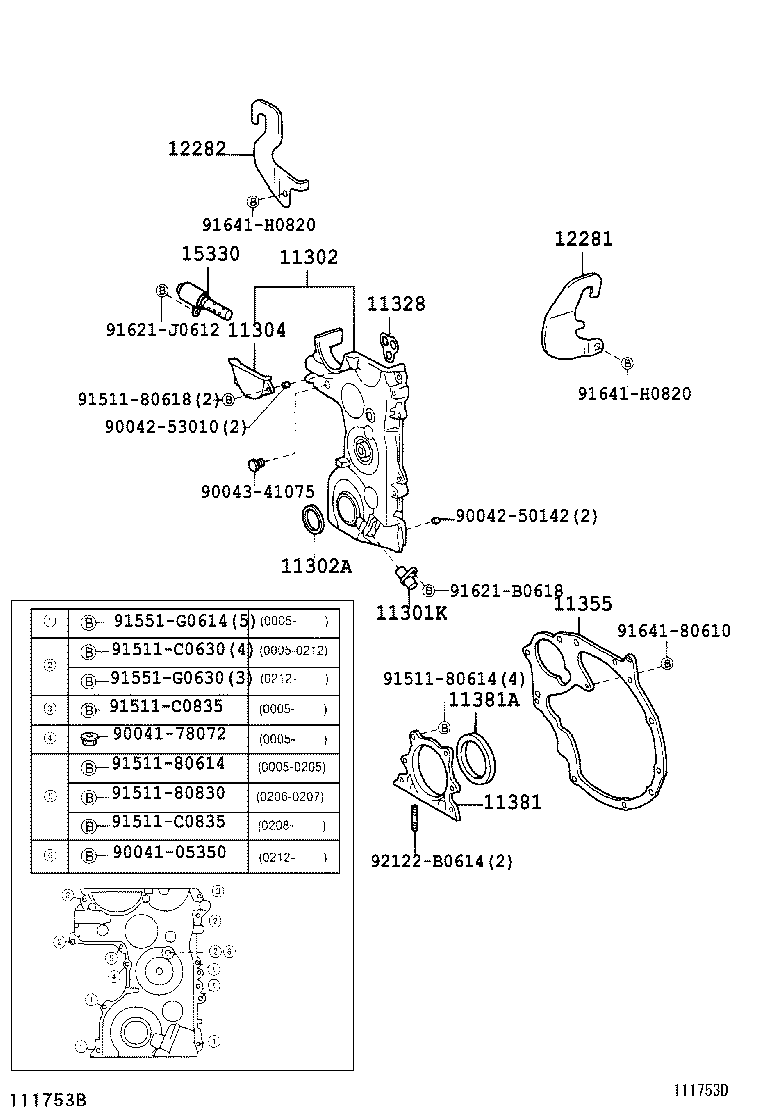

Figure 111268H 111268H 1998-09 → — Figure 111271B 111271B 1998-09 → — Figure 111753D 111753D 2000-05 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302F Bush(FOR TIMING GEAR COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
15330 Valve Assy, Cam Timing Oil Control
19300C Sensor Assy, Cam Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
