Toyota Duet
1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan
Discontinued model
Data version 2005-01

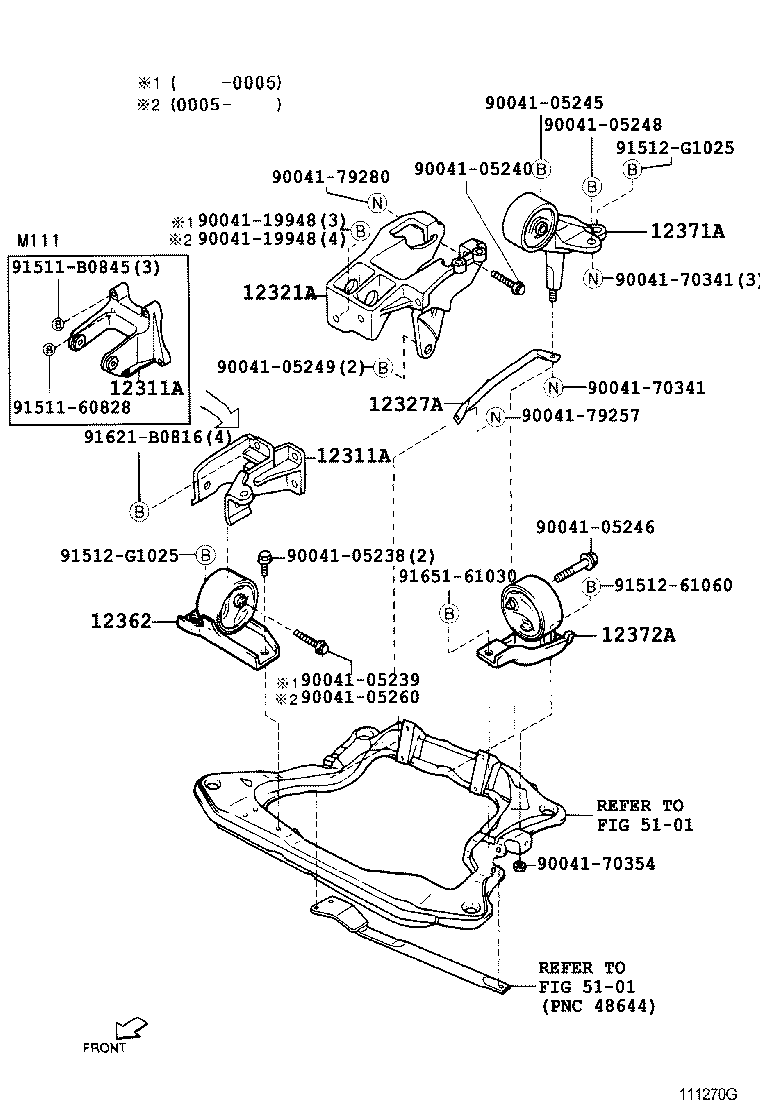

Mounting
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311A | Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) |
| 12321A | Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) |
| 12327A | Stay, Engine Mounting, NO.2 RH |
| 12362 | Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12371A | Insulator, Engine Mounting, Rear |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
