Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

19 part groups · 2 illustrations

Illustrations

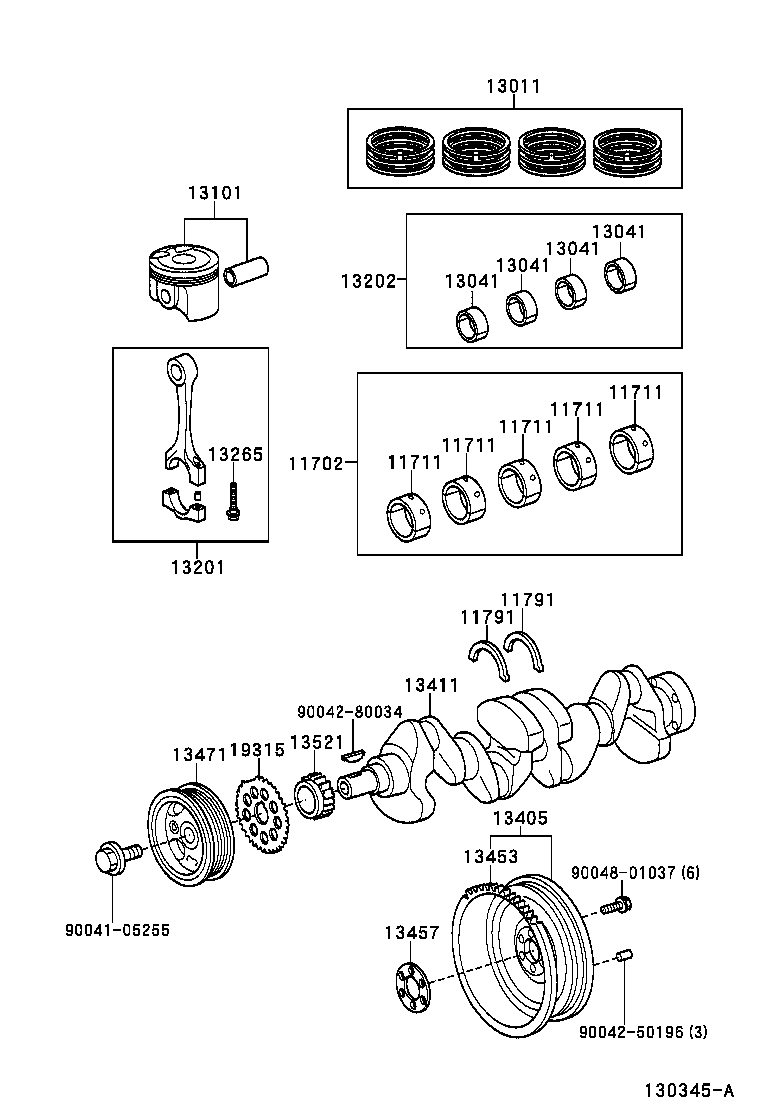

Figure 130202E 130202E 1998-09 → — Figure 130345A 130345A 2000-05 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13201 Rod Sub-assy, Connecting
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13405 Flywheel Sub-assy
13411 Crankshaft
13453 Gear, Flywheel Ring
13457 Ring, Flywheel Spacer
13471 Pulley, Crankshaft
13521 Gear OR Sprocket, Crankshaft Timing
13521P Pulley, Crankshaft Timing
13566A Guide, Timing Belt
19315 Plate, Crank Angle Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
