Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

10 part groups · 2 illustrations

Illustrations

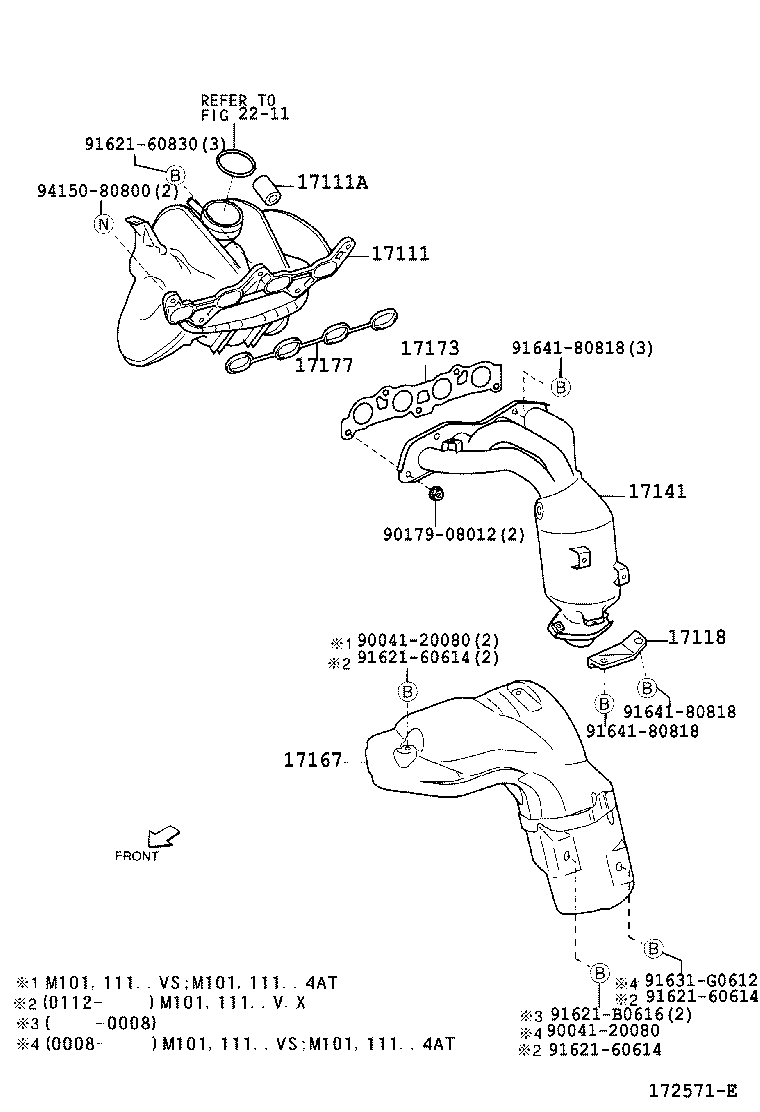

Figure 171910F 171910F 1998-09 → — Figure 172571E 172571E 2000-05 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17112C Clip(FOR INTAKE MANIFOLD)
17118 Stay, Manifold
17126 Stay, Surge Tank, NO.2
17128 Gasket, Surge Tank
17141 Manifold, Exhaust
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
