Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

16 part groups · 2 illustrations

Illustrations

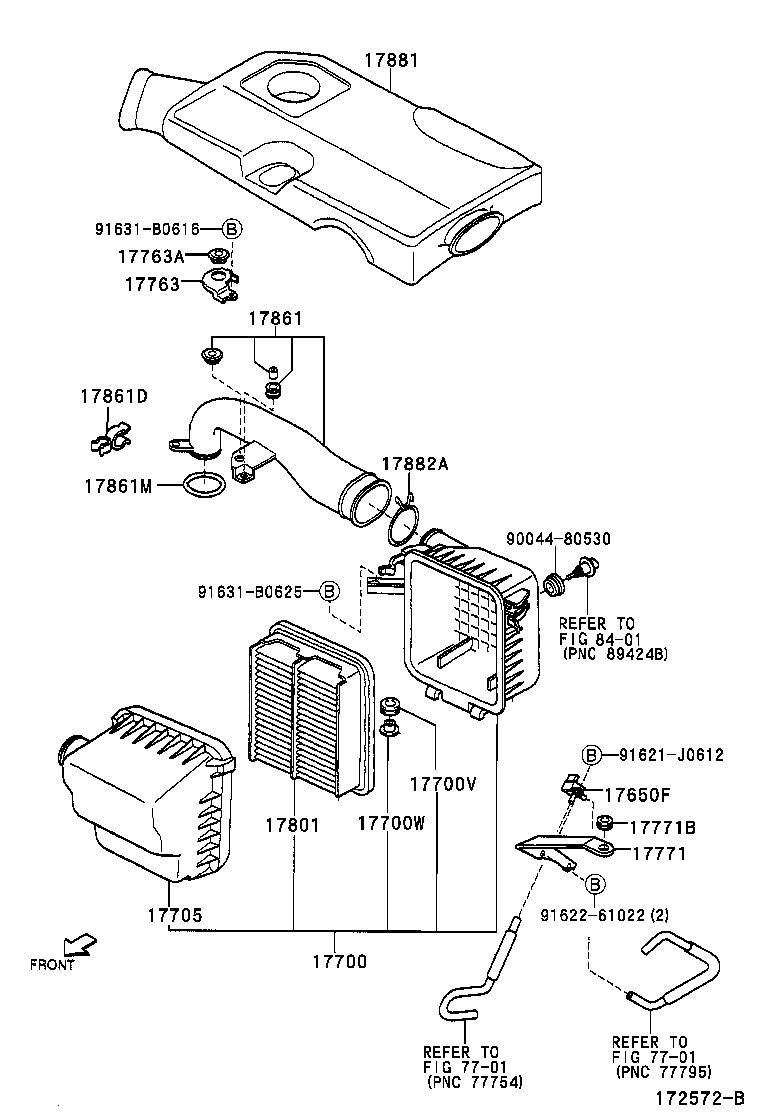

Figure 171911C 171911C 1998-09 → — Figure 172572B 172572B 2000-05 → —

Part groups

PNCDescription
17650F Valve Assy, Air By-pass, NO.2
17700 Cleaner Assy, Air
17700V Bush(FOR AIR CLEANER)
17700W Spacer(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17763 Stay, Air Cleaner Inlet Duct
17763A Grommet, Air Cleaner Inlet Duct
17771 Bracket, Air Cleaner Inlet Duct
17771B Grommet(FOR AIR CLEANER BRACKET)
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17861M Ring, O(FOR INTAKE AIR CONNECTOR)
17881 Hose, Air Cleaner, NO.1
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
