Toyota Duet
1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan
Discontinued model
Data version 2005-01
Fuel Injection System

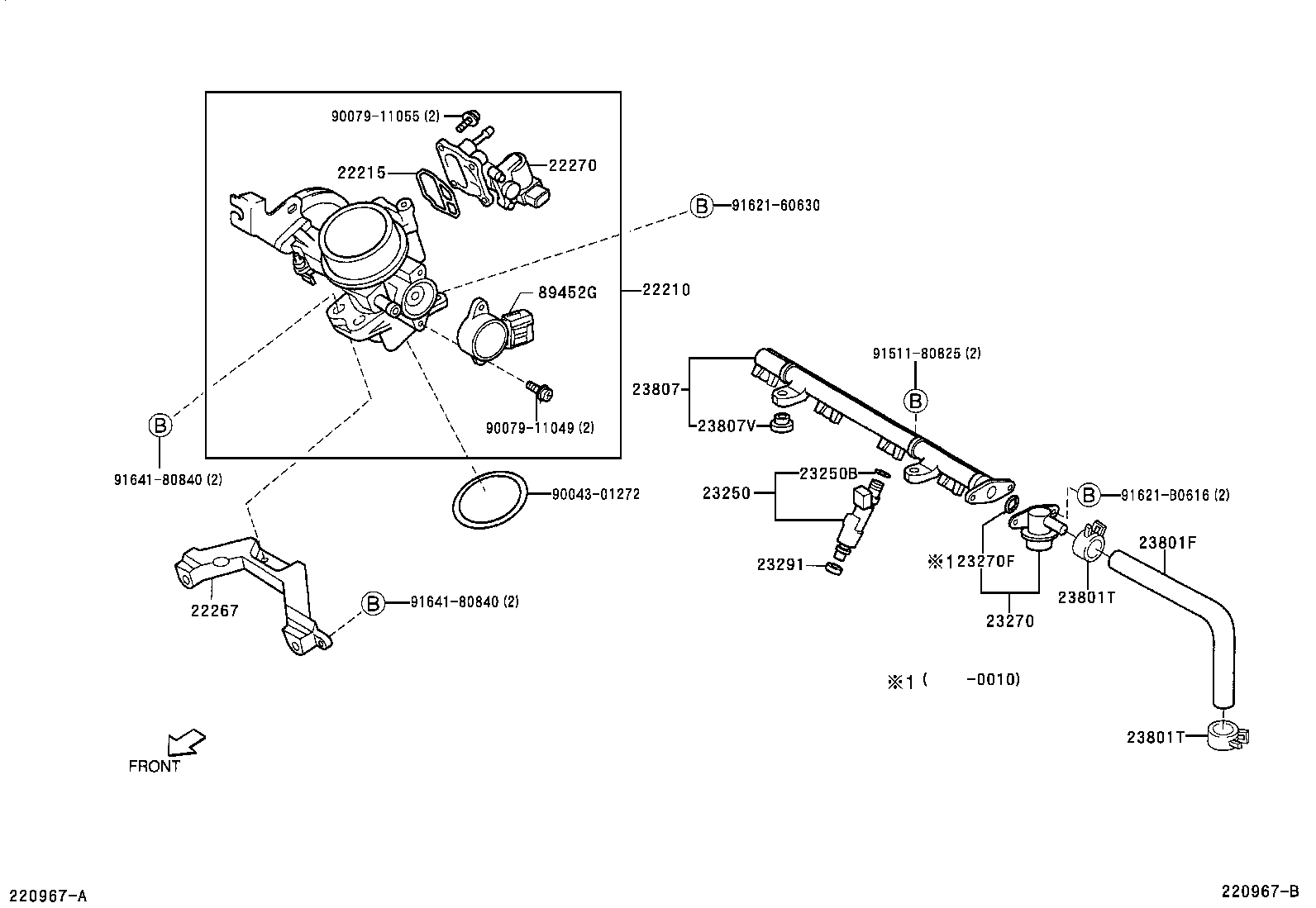

24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650P | Valve, Vacuum Switching |
| 22210 | Body Assy, Throttle |
| 22215 | Gasket, Throttle Body Cover |
| 22215A | Gasket, Idle Speed Control Valve |
| 22267 | Bracket, Throttle Body |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22271 | Gasket, Throttle Body |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23220 | Pump Assy, Fuel W/Filter |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270F | Ring, O(FOR PULSATION DAMPER) |
| 23291 | Insulator, Injector Vibration |
| 23300Z | Filter, Fuel(FOR FUEL TANK) |
| 23801F | Hose, Fuel, NO.1 |
| 23801T | Clamp OR Clip, Fuel Hose(FOR EFI) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807S | Ring, O(FOR FUEL DELIVARY PIPE) |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23811B | Pipe, Fuel, NO.1 |
| 89420J | Sensor Assy, Vacuum(FOR THROTTLE BODY) |
| 89452G | Sensor, Throttle Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
