Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

25 part groups · 2 illustrations

Illustrations

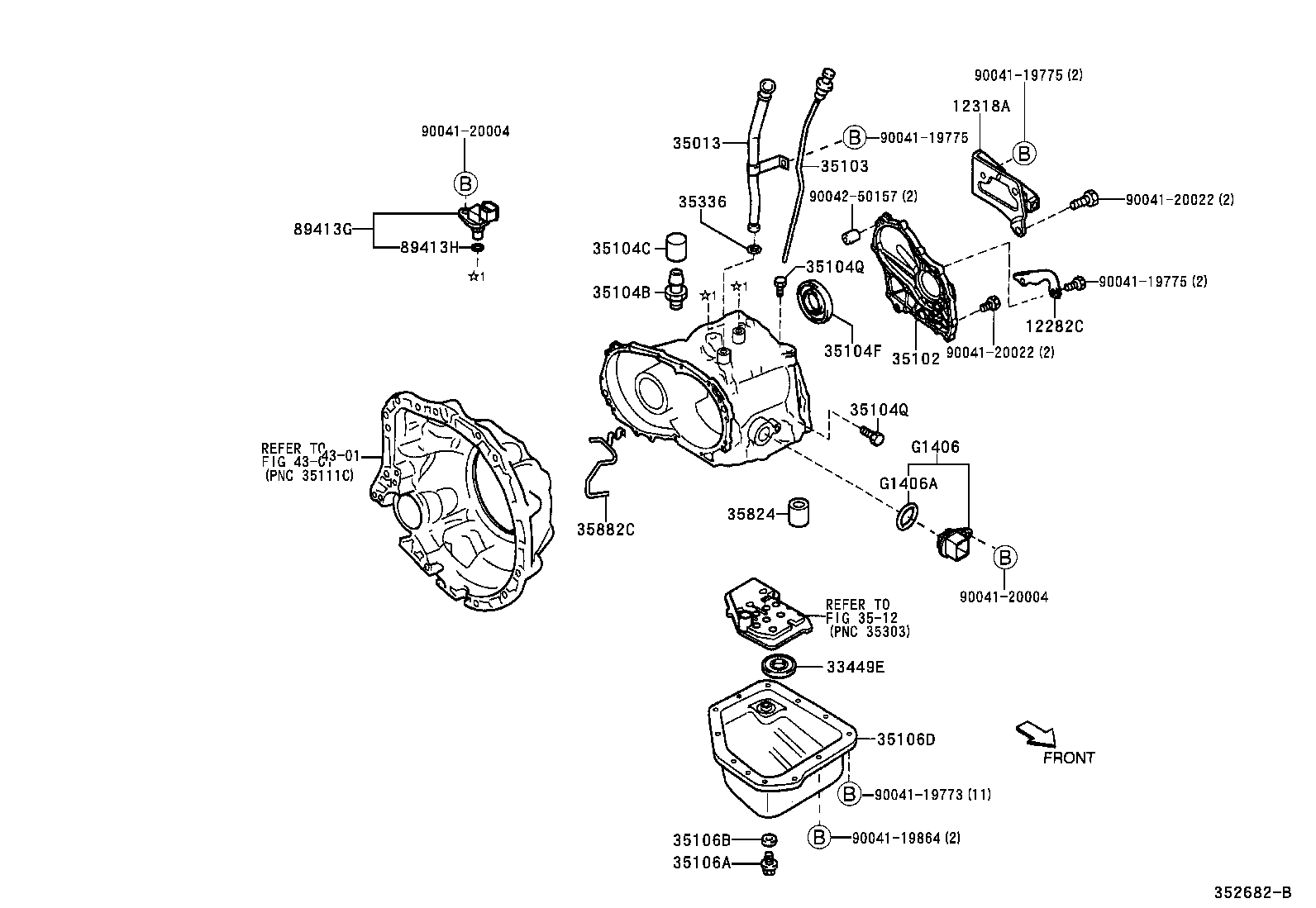

Figure 351652B 351652B 1998-09 → — Figure 352682B 352682B 2000-05 → —

Part groups

PNCDescription
12282C Hanger, Engine, NO.2
12318A Bracket, Engine Mountig, Lower LH
33449E Magnet, Transaxle
35013 Tube Sub-assy, Transmission Oil Filler
35102 Cover Sub-assy, Transaxle Rear
35103 Gage Sub-assy, Transmission Oil Level
35104B Plug, Breather, NO.1 (ATM)
35104C Plug, Breather, NO.2 (ATM)
35104F Seal, Oil (FOR TRANSAXLE CASE)
35104G Union(FOR AUTOMATIC TRANSAXLE CASE)
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106D Pan Sub-assy, Automatic Transaxle Oil
35142 Gasket, Transmission Case(ATM)
35168A Gasket, Automatic Transaxle Oil Pan
35182A Gasket, Transaxle Case Rear Cover
35257 Plate, Oil Guide
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35824 Seal, Brake Cylinder
35882C Tube, Differential Gear Lube Apply
89413G Sensor, Transmission Revolution
89413H Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
G1406 Connector Sub-assy, Trans Solenoid
G1406A Ring, O(FOR TRANS SOLENOID CONNECTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
