Toyota Duet
1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan
Discontinued model
Data version 2005-01

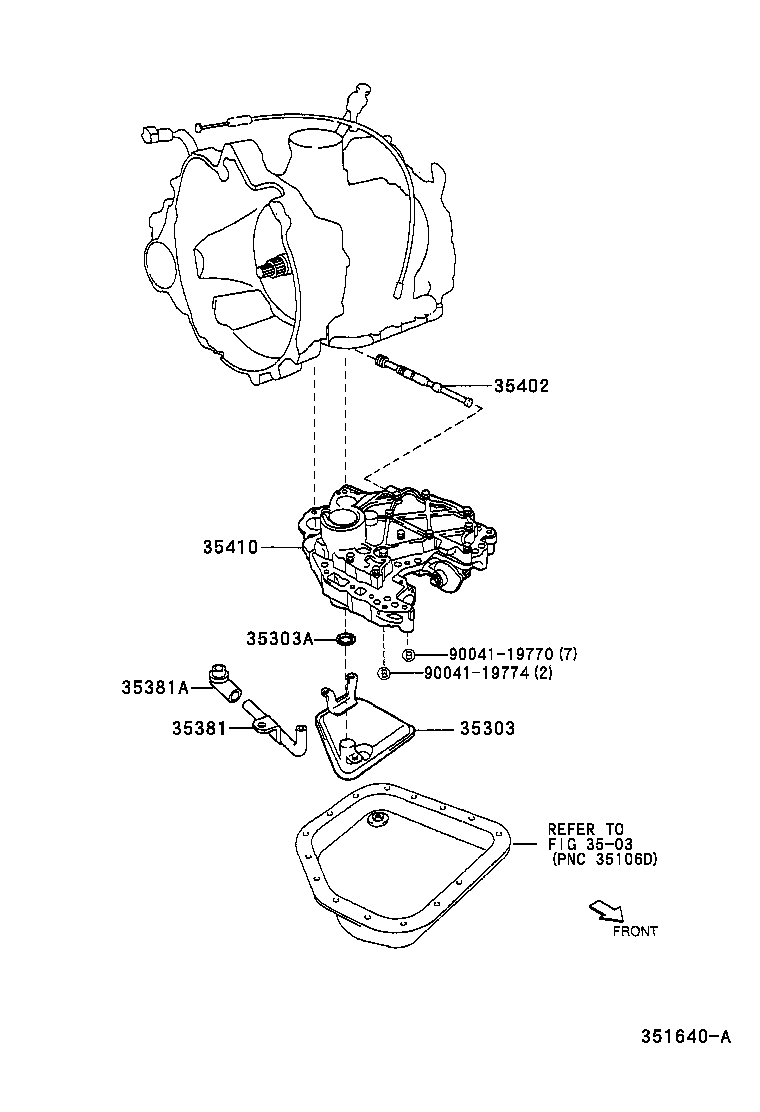

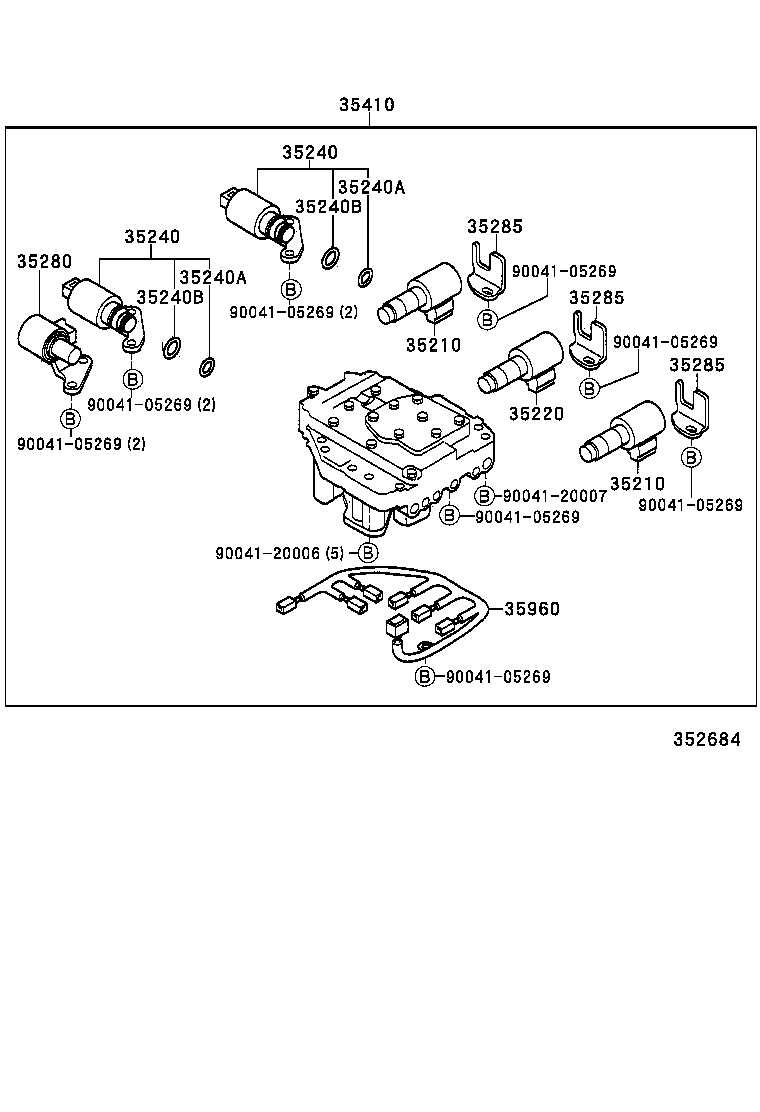

Valve Body & Oil Strainer (ATM)
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33485E | Plate, Lock |
| 35210 | Solenoid Assy, Clutch Control, NO.1 |
| 35220 | Solenoid Assy, Clutch Control, NO.2 |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35240A | Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID) |
| 35240B | Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID) |
| 35280 | Solenoid Assy, Lock UP Control |
| 35285 | Plate, Solenoid Lock |
| 35303 | Strainer Sub-assy, Oil |
| 35303A | Ring, O (FOR OIL STRAINER) |
| 35381 | Tube, Valve Body |
| 35381A | Elbow(FOR VALVE BODY TUBE) |
| 35402 | Valve, Manual |
| 35410 | Body Assy, Transmission Valve |
| 35421 | Piston, Accumulator, NO.1 |
| 35421A | Spring, Compression (FOR ACCUMULATOR PISTON NO.1) |
| 35421F | Piston, Accumulator, NO.2 |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35421Q | Spring, Compression (FOR ACCUMULATOR PISTON NO.3) |
| 35960 | Wire, Solenoid |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
