Toyota Duet
1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan
Discontinued model
Data version 2005-01

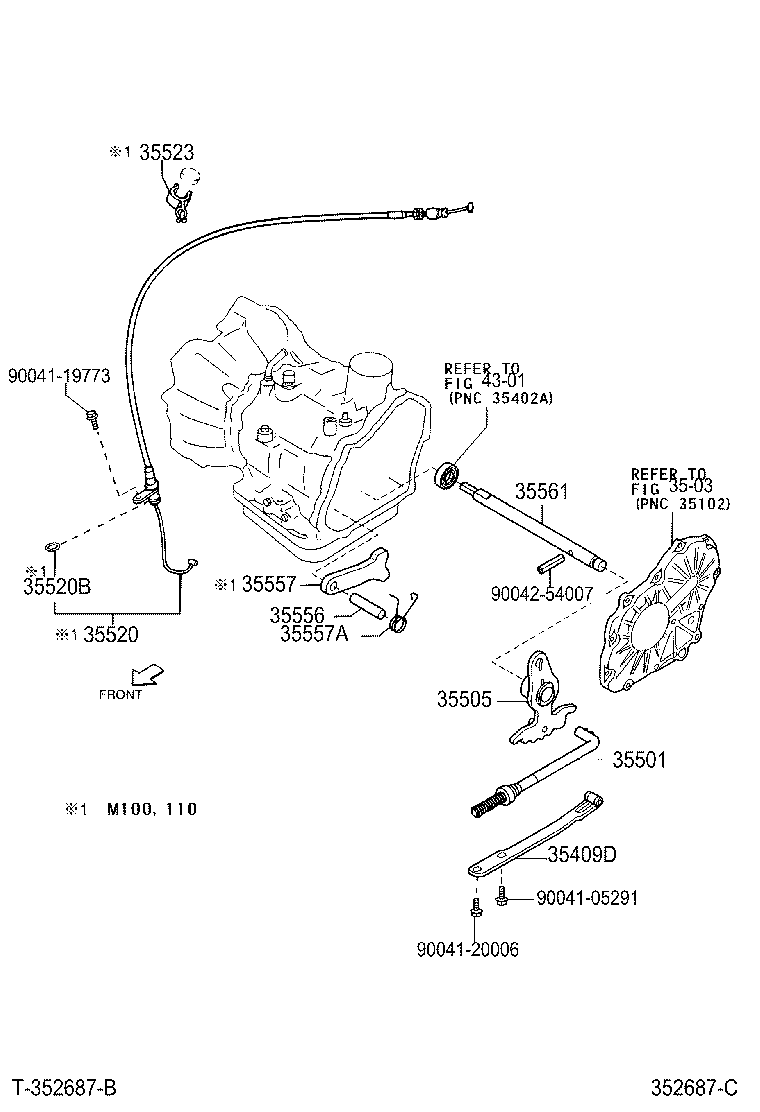

Throttle Link & Valve Lever (ATM)
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35409D | Spring Sub-assy, Manual Detent |
| 35501 | Rod Sub-assy, Parking Lock |
| 35505 | Lever Sub-assy, Manual Valve |
| 35520 | Cable Assy, Throttle |
| 35520B | Ring, O(FOR THROTTLE CABLE) |
| 35523 | Clamp, Throttle Cable |
| 35556 | Shaft, Parking Lock Pawl |
| 35557 | Pawl, Parking Lock |
| 35557A | Spring, Torsion (FOR PARKING LOCK PAWL) |
| 35561 | Shaft, Manual Valve Lever |
| 35570 | Cable Assy, Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
