Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

13 part groups · 2 illustrations

Illustrations

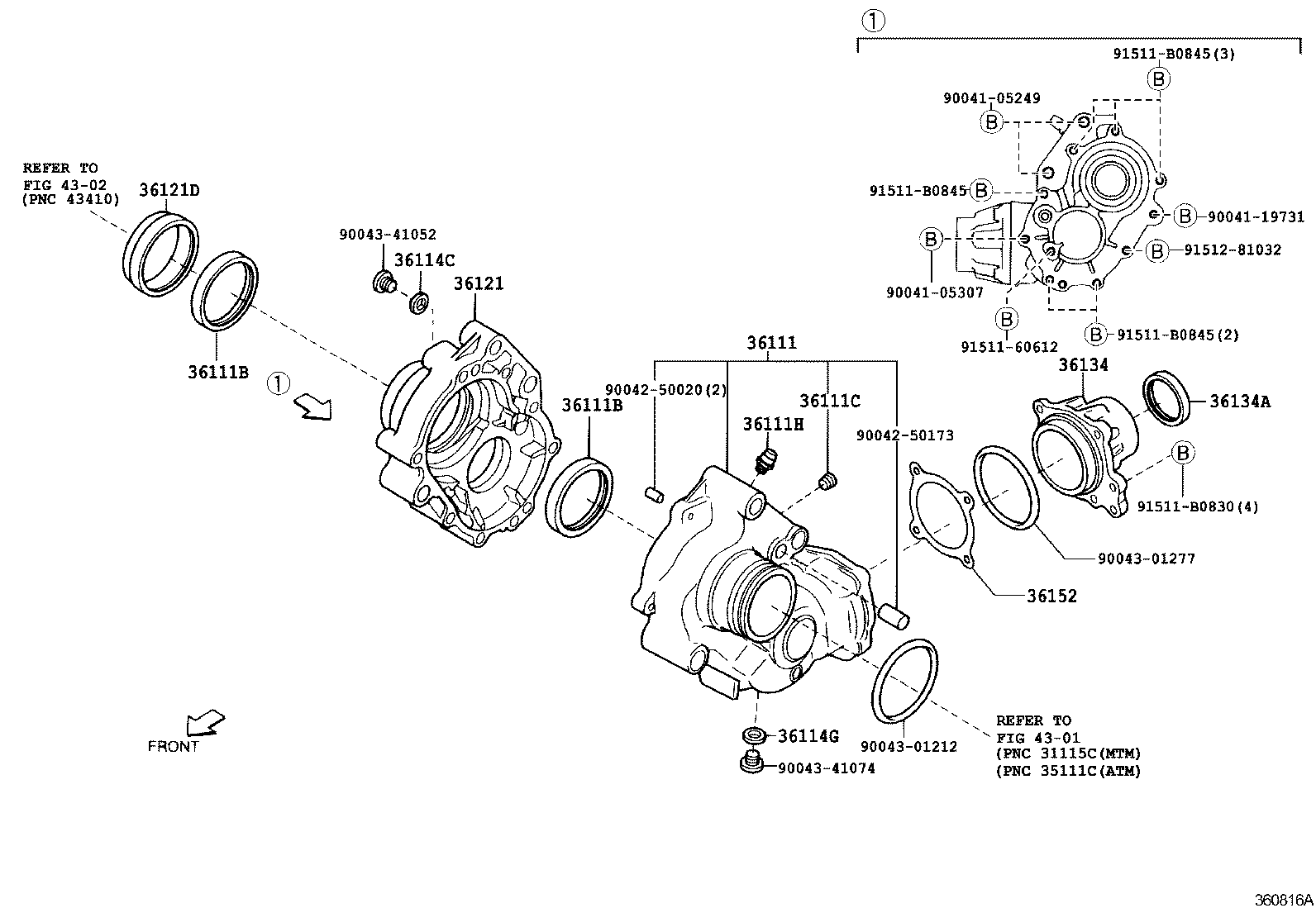

Figure 360420F 360420F 1998-09 → 2002-10 Figure 360816A 360816A 2002-10 → —

Part groups

PNCDescription
36111 Case, Transfer
36111B Seal, Oil (FOR TRANSFER CASE)
36111C Plug (FOR TRANSFER CASE)
36111H Plug, Breather (FOR TRANSFER CASE)
36114C Gasket, NO.1 (FOR TRANSFER CASE)
36114G Gasket (FOR TRANSFER DRAIN PLUG)
36121 Cover, Transfer Case, NO.1
36121D Seal, Oil(FOR TRANSFER CASE COVER)
36124C Cover, Transfer Bearing Adjusting
36134 Retainer, Output Shaft Bearing, Front
36134A Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
36152 Gasket, Output Shaft Bearing Retainer
36724A Plate, Transfer Bearing Adjusting Nut Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
