Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Gear

15 part groups · 2 illustrations

Illustrations

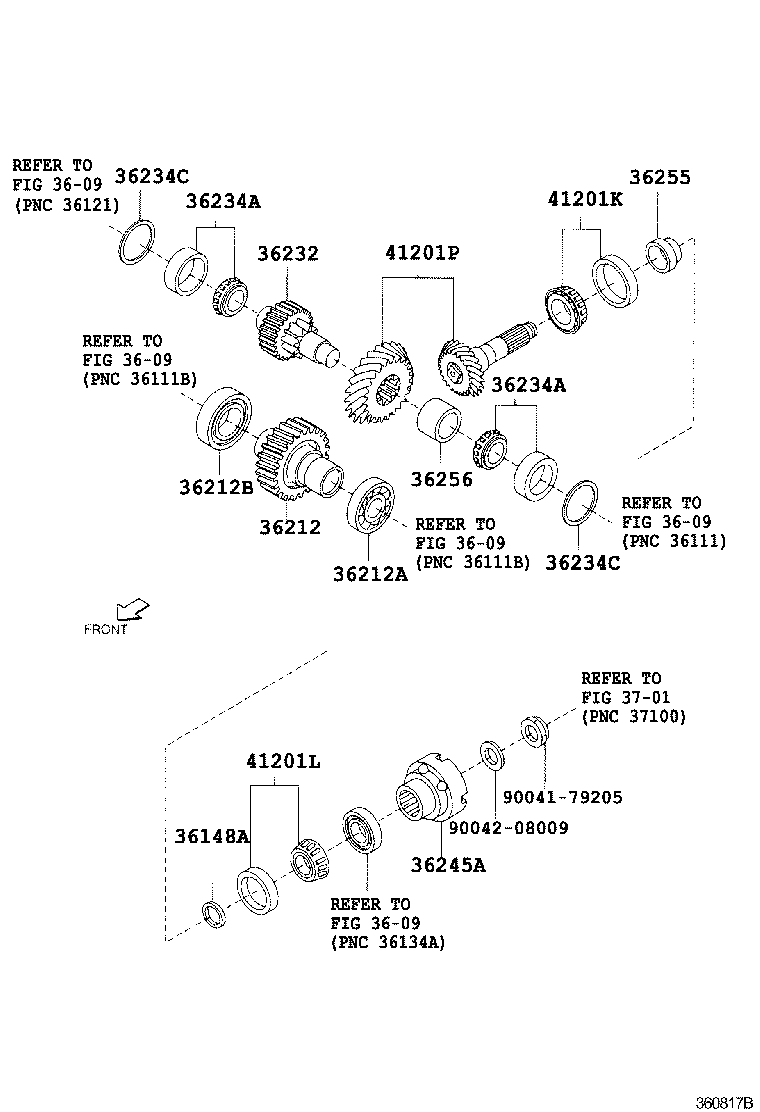

Figure 360422C 360422C 1998-09 → 2002-10 Figure 360817B 360817B 2002-10 → —

Part groups

PNCDescription
36148A Shim, Transfer Pinion Bearing Cage
36212 Gear, Transfer Input
36212A Bearing, Radial Ball (FOR TRANSFER INPUT GEAR)
36212B Bearing, Needle Roller (FOR TRANSFER INPUT GEAR)
36232 Gear, Transfer Front Drive
36232A Bearing (FOR TRANSFER FRONT DRIVE GEAR)
36234 Shaft, Transfer Output, Front
36234A Bearing (FOR TRANSFER OUTPUT FRONT SHAFT)
36234C Spacer (FOR TRANSFER OUTPUT FRONT SHAFT)
36245A Flange, Transfer Output Shaft
36255 Spacer, Transfer Output Shaft, NO.1
36256 Spacer, Transfer Output Shaft, NO.2
41201K Bearing (FOR TRANSFER DRIVEN PINION FRONT)
41201L Bearing (FOR TRANSFER DRIVEN PINION REAR)
41201P Gear Kit, Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
