Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

21 part groups · 6 illustrations

Illustrations

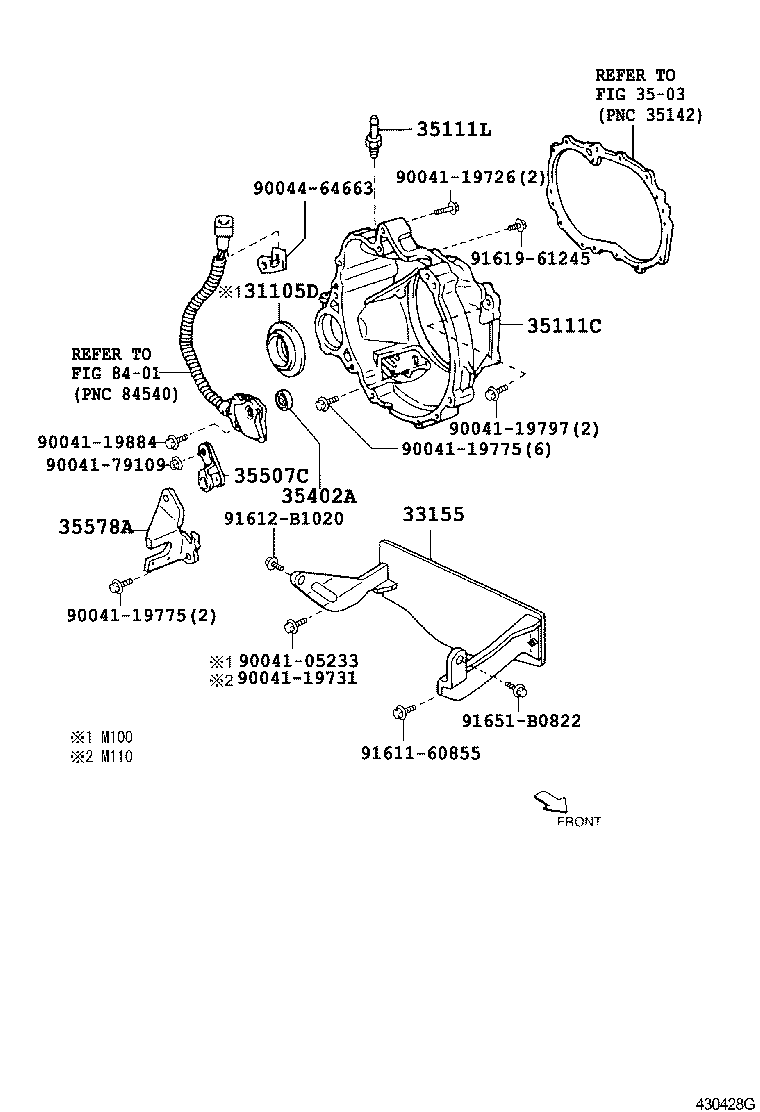

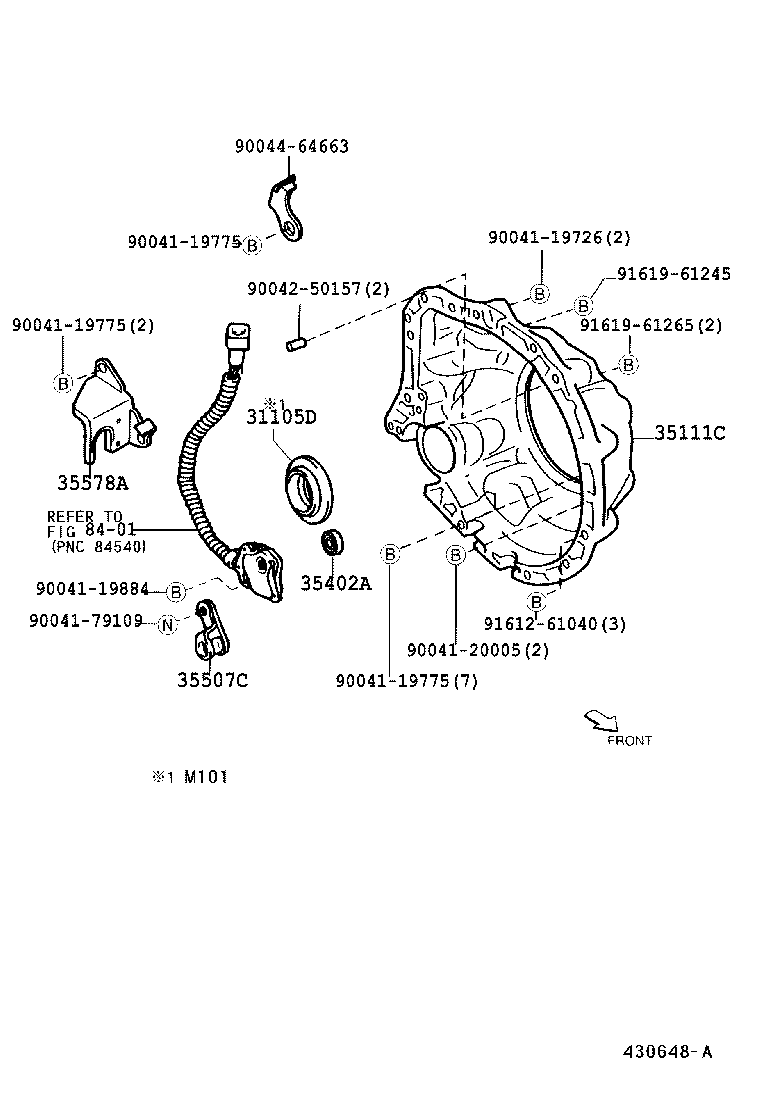

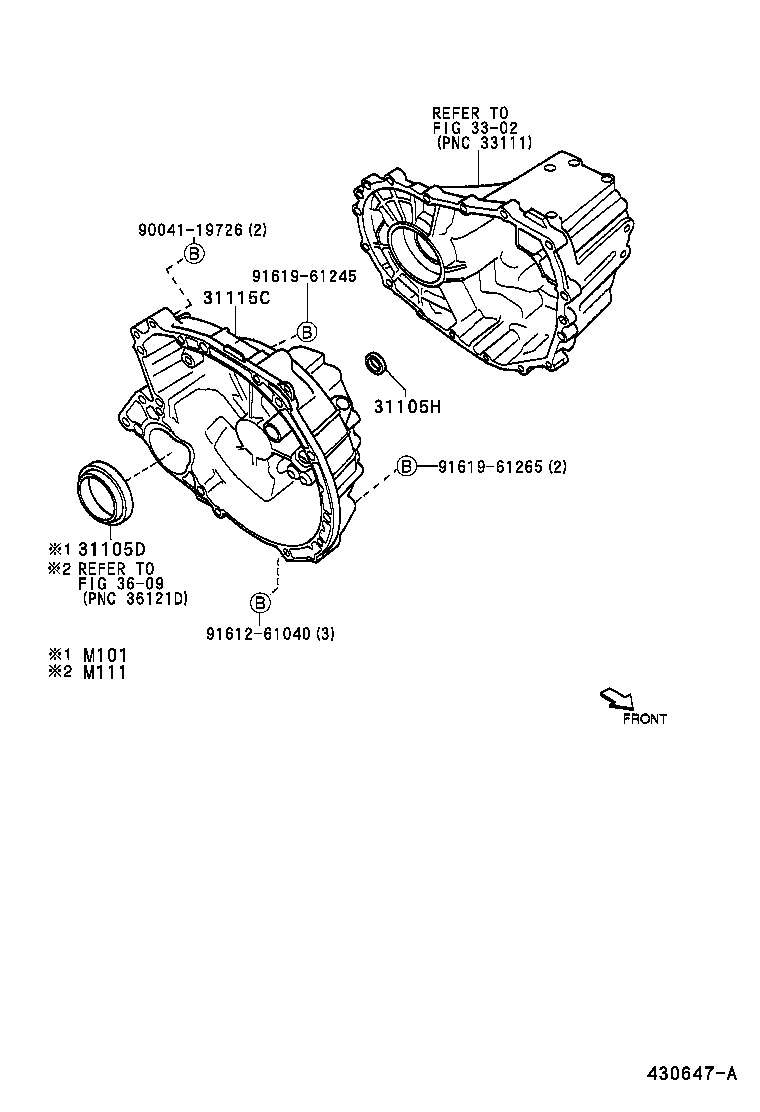

Figure 430424D 430424D 1998-09 → — Figure 430647A 430647A 2000-05 → — Figure 430425B 430425B 1998-09 → — Figure 430648A 430648A 2000-05 → — Figure 430428H 430428H 1998-09 → — Figure 431285B 431285B 1998-09 → —

Part groups

PNCDescription
31105D Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
31105H Seal, Oil, NO.2(FOR TRANSAXLE CASE)
31115C Case, Front Transaxle(MTM)
33155 Stiffener, Power Train
35111C Housing, Transaxle
35111L Union(FOR TRANSAXLE HOUSING)
35402A Seal, Oil(FOR MANUAL VALVE)
35507C Lever Transaxle Control Shaft
35578A Bracket, Control Cable
41221 Gear, Front Differential Ring
41301L Case Sub-assy, Front Differential, NO.1
41301N Bearing(FOR FRONT DIFFERENTIAL CASE)
41301S Bearing, Needle Roller
41311 Case, Front Differential
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41331F Gear, Front Differential Side
41341F Pinion, Front Differential
41342F Shaft, Front Differential Pinion, NO.1
41351F Washer, Front Differential Pinion Thrust
41361F Washer, Front Differential Side Gear Thrust, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
