Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

10 part groups · 4 illustrations

Illustrations

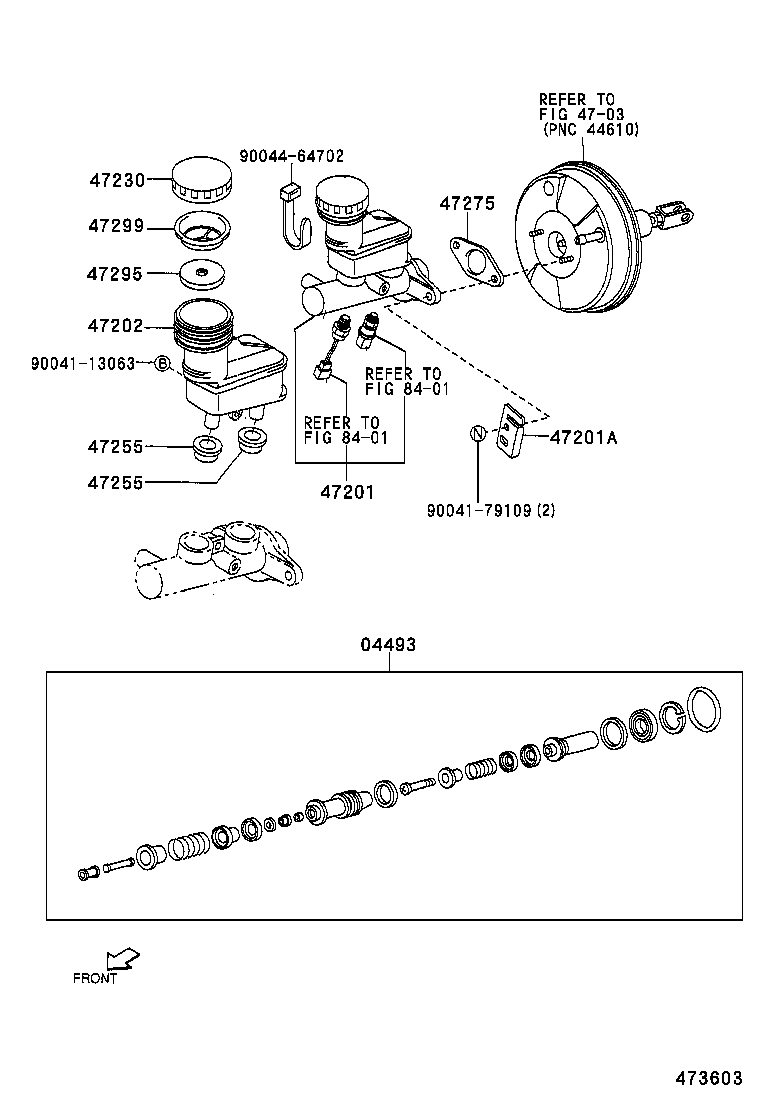

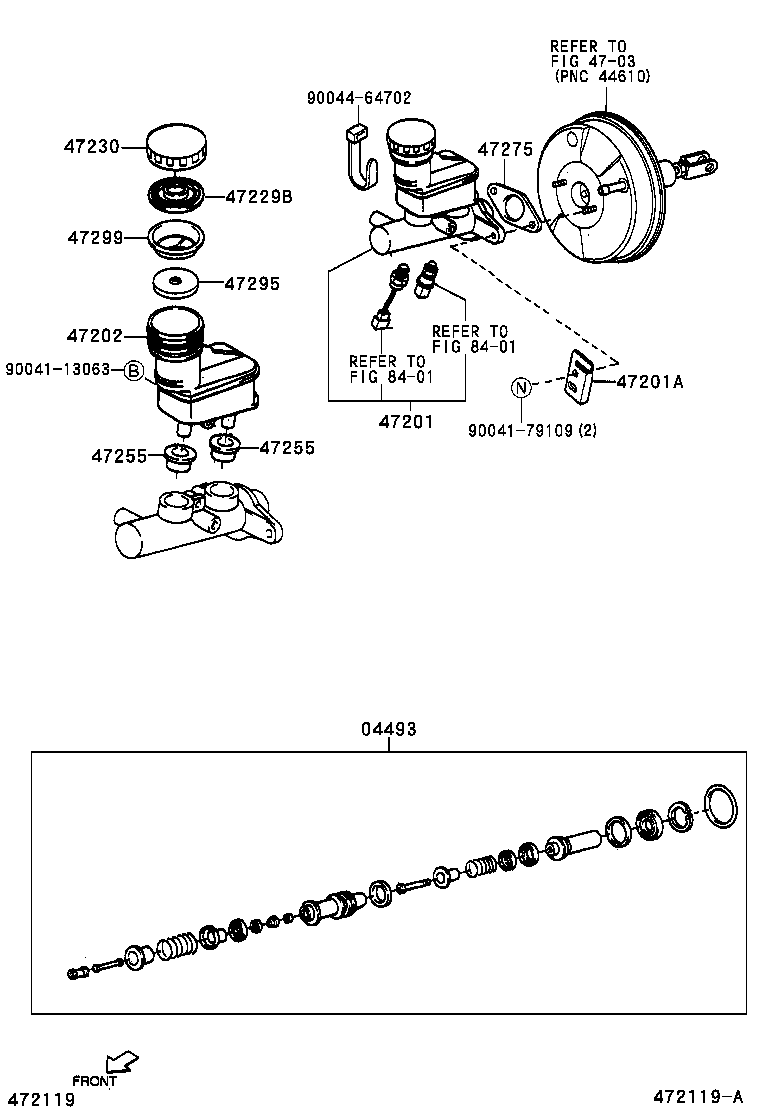

Figure 471347A 471347A 1998-09 → 2002-11 Figure 473602 473602 2002-12 → — Figure 472119A 472119A 2000-05 → 2002-11 Figure 473603 473603 2002-12 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47201A Clamp(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47229B Diaphragm, Brake Master Cylinder Reservoir
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47275 Gasket, Brake Master Cylinder
47295 Float, Switch Operating
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
