Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

17 part groups · 3 illustrations

Illustrations

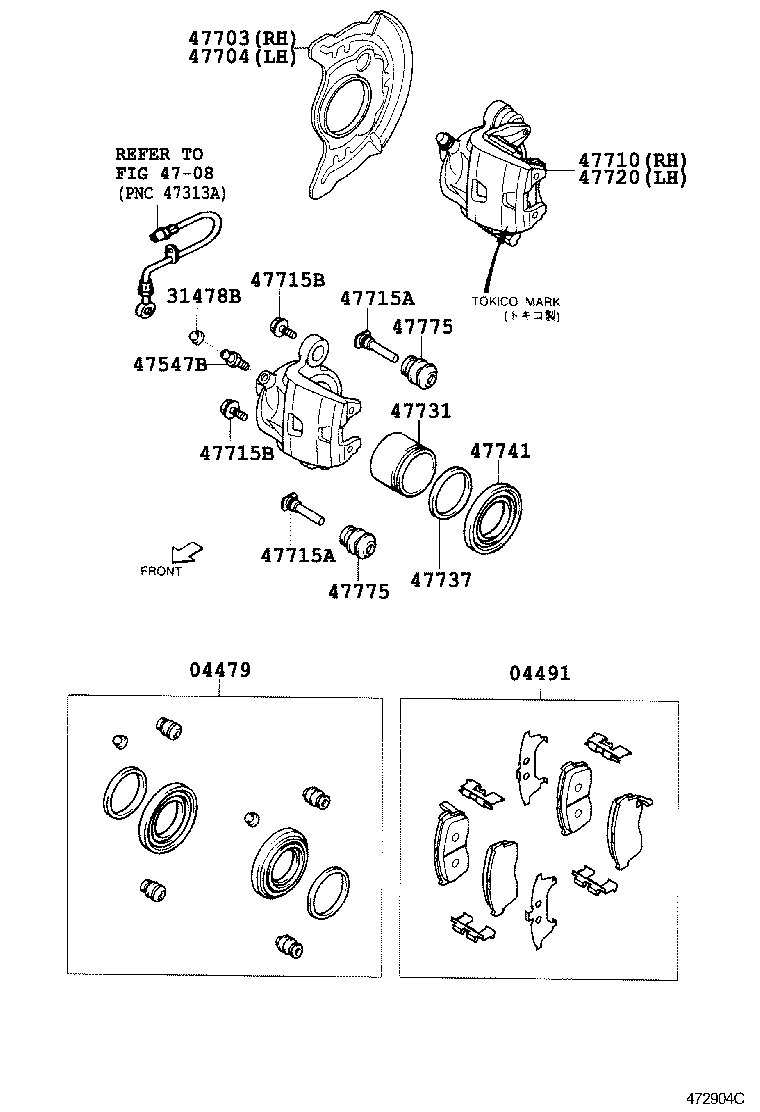

Figure 471346G 471346G 1998-09 → 2001-12 Figure 471346G 471346G 2001-12 → — Figure 472904C 472904C 2001-12 → —

Part groups

PNCDescription
04479 Cylinder Kit, Disc Brake, Front
04491 Pad Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47703 Cover Sub-assy, Disc Brake Dust, Front RH
47704 Cover Sub-assy, Disc Brake Dust, Front LH
47710 Caliper Assy, Disc Brake, Front, RH
47715 Pin, Main(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715A Pin, Front Disc Brake Cylinder Slide
47715B Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47720 Caliper Assy, Disc Brake, Front, LH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47737 Seal, Front Disc Brake Cylinder Piston
47741 Boot, Front Disc Brake Cylinder
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
