Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

19 part groups · 2 illustrations

Illustrations

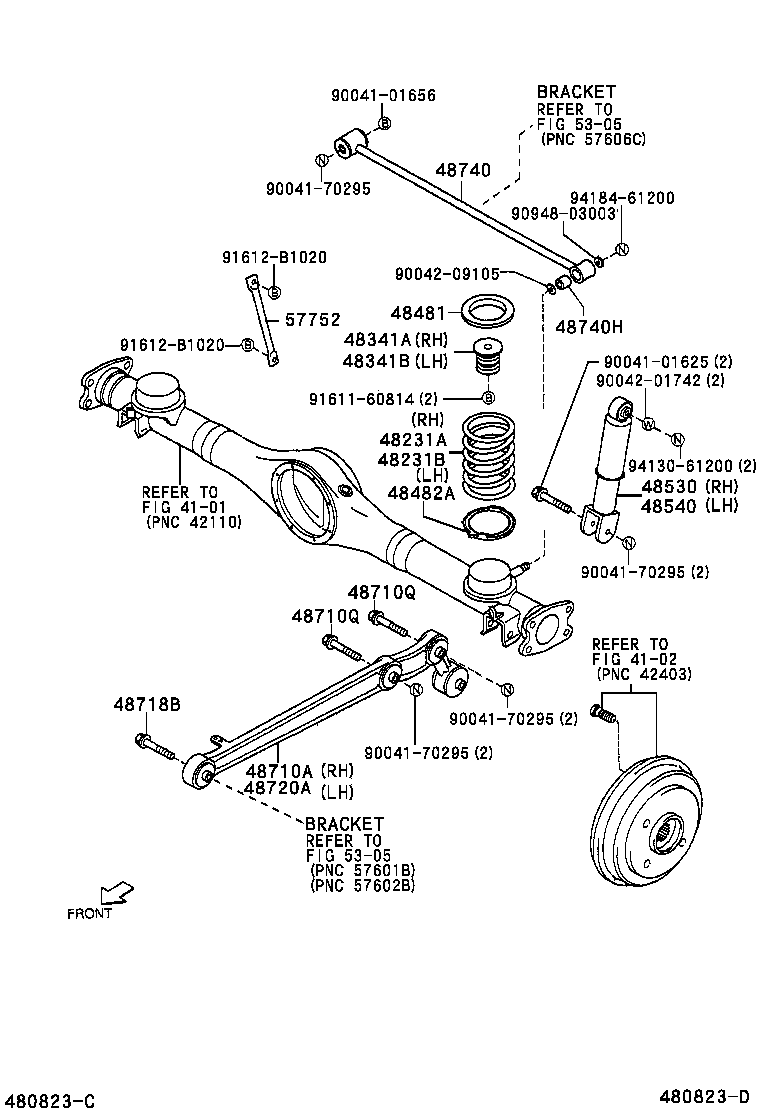

Figure 480822F 480822F 1998-09 → — Figure 480823D 480823D 1998-09 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48481 Seat, Rear Spring, Upper
48482A Seat, Rear Spring, Lower
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48710A Arm Assy, Rear Suspension, NO.1 RH
48710Q Bolt(FOR REAR LOWER CONTROL ARM)
48718B Shaft, Rear Suspension Lower Arm, NO.1
48720A Arm Assy, Rear Suspension, NO.1 LH
48725 Bush, Lower Control Arm
48725A Bolt(FOR LOWER CONTROL ARM)
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48812 Bar, Stabilizer, Rear
57752 Brace, Lateral Control Rod Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
