Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 5 illustrations

Illustrations

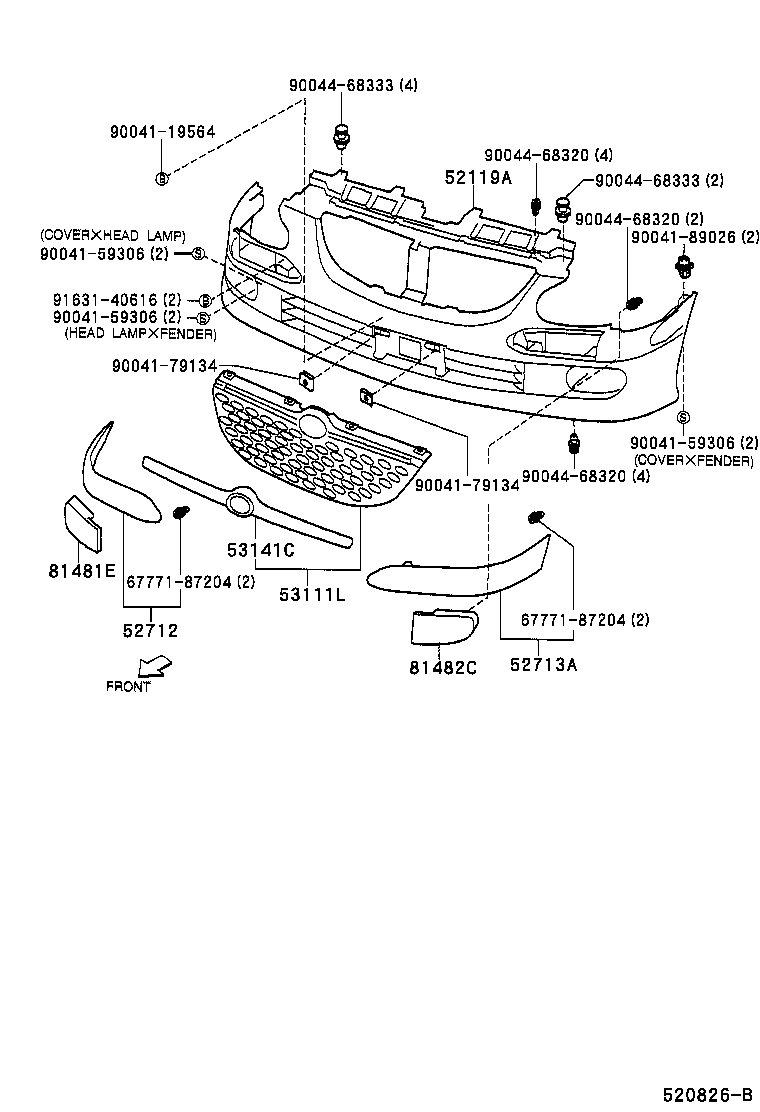

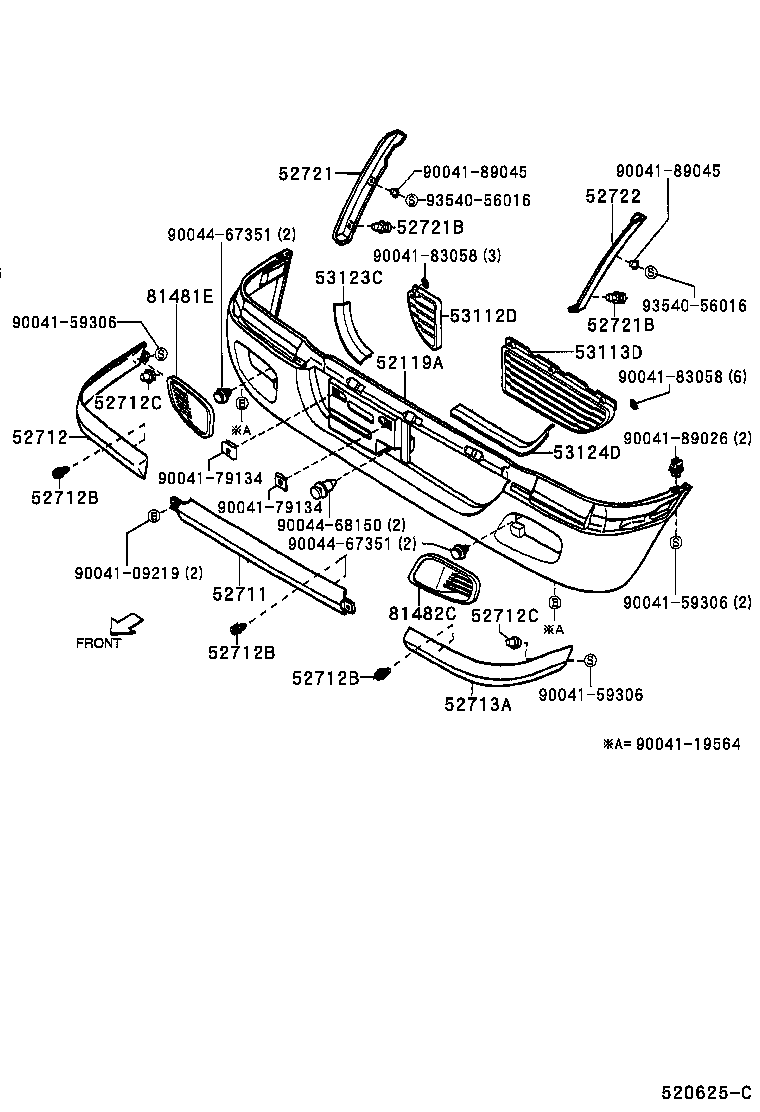

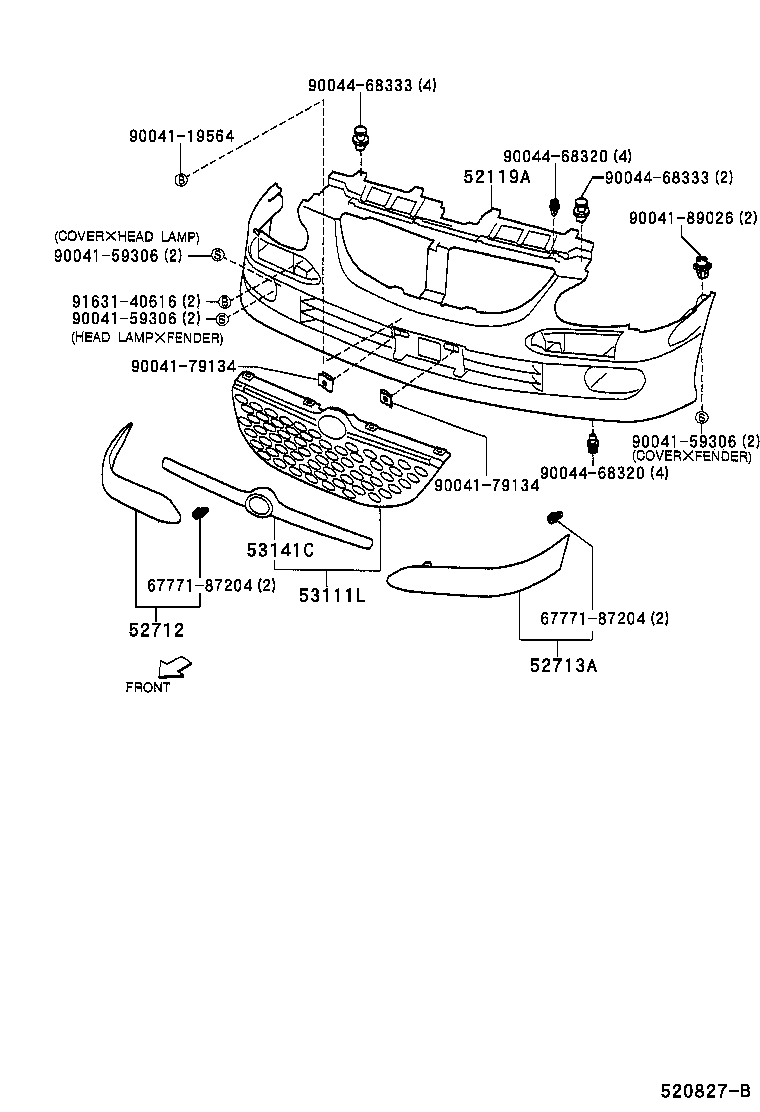

Figure 520441C 520441C 1998-09 → 2000-05 Figure 520626B 520626B 2000-05 → 2001-12 Figure 520625C 520625C 2000-05 → 2001-12 Figure 520826B 520826B 2001-12 → — Figure 520827B 520827B 2001-12 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52712B Clip, Front Bumper Moulding
52712C Clip, Front Bumper Moulding, NO.2
52713A Moulding, Front Bumper Side, LH
52721 Moulding, Front Bumper Extension, RH
52721B Clip, Front Bumper Extension Moulding, NO.2
52722 Moulding, Front Bumper Extension, LH
53111L Grille Sub-assy, Radiator, Center
53112D Grille, Radiator, Lower RH
53113D Grille, Radiator, Lower LH
53123C Moulding, Radiator Grille, Lower RH
53124D Moulding, Radiator Grille, Lower LH
53141C Garnish, Radiator Grille
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
