Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

10 part groups · 3 illustrations

Illustrations

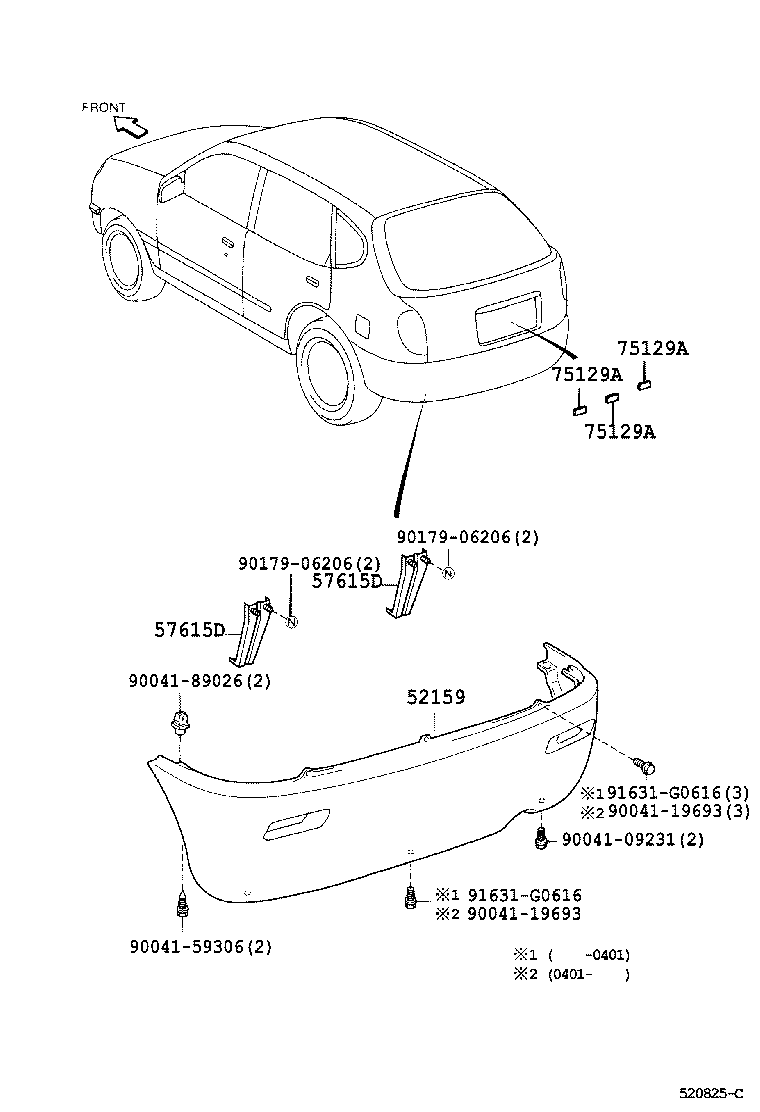

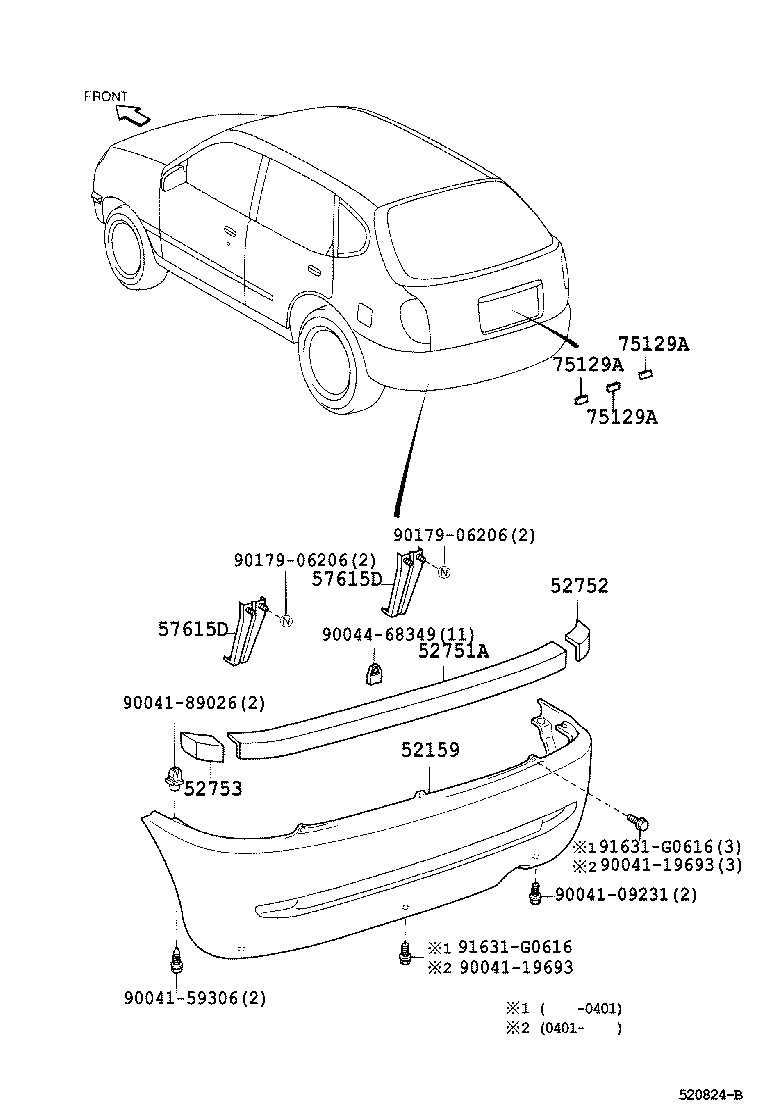

Figure 520442D 520442D 1998-09 → 2001-12 Figure 520824B 520824B 2001-12 → — Figure 520825C 520825C 2001-12 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
52724A Clip, Rear Bumper Extension Moulding, NO.1
52724B Clip, Rear Bumper Extension Moulding, NO.2
52751A Moulding, Rear Bumper, Center
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
57615D Bracket, Rear Bumper Mounting
75129A Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
