Toyota Duet
1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan
Discontinued model
Data version 2005-01

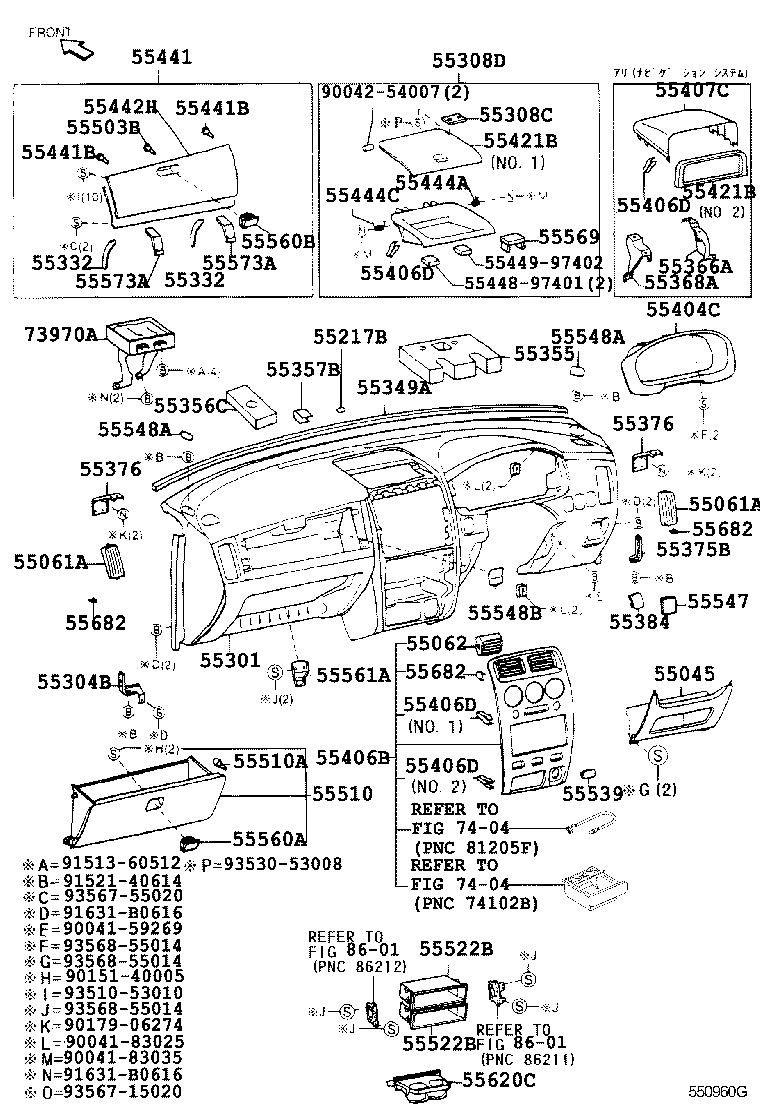

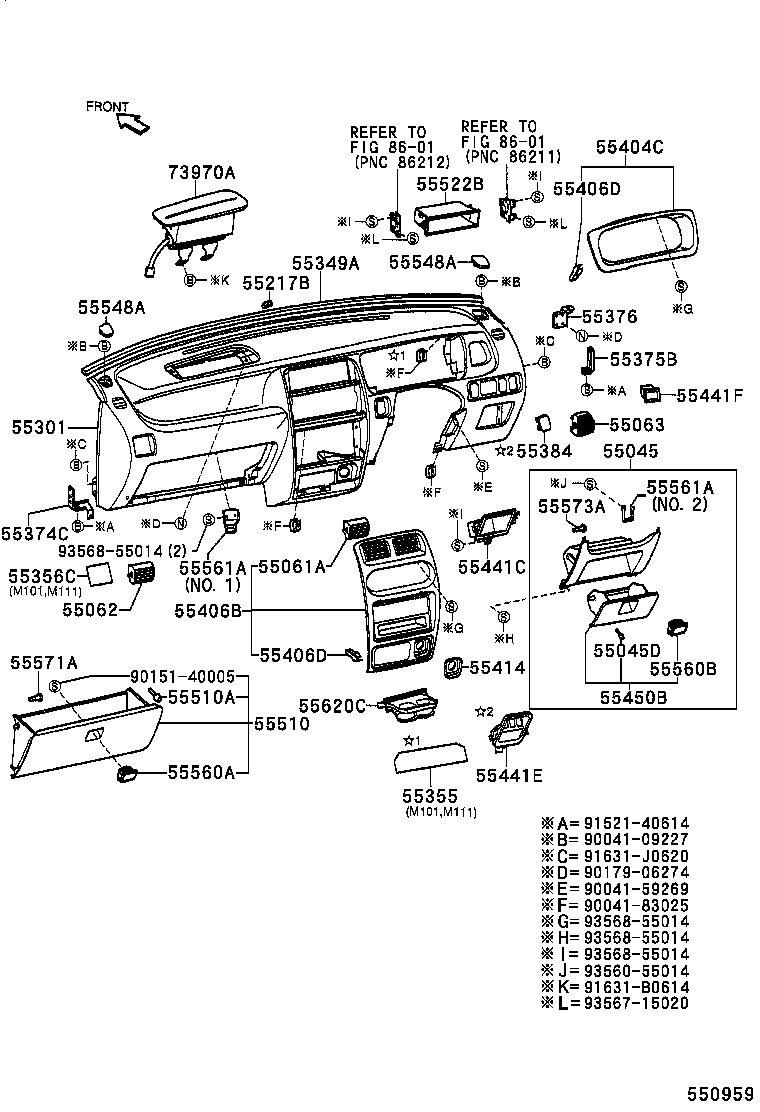

Instrument Panel & Glove Compartment
57 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55045D | Cushion, Glove Compartment |
| 55061A | Register Sub-assy, Instrument Panel |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55063 | Register Sub-assy, Instrument, NO.3 |
| 55217B | Retainer, Dash Panel Silencer |
| 55301 | Panel Sub-assy, Instrument |
| 55304B | Bracket Sub-assy, Instrument Panel Bracket Mounting |
| 55305C | Reinforcement Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55308D | Box Sub-assy, Instrument Panel, Center |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55332 | Stay, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55351A | Brace, Instrument Panel TO Floor |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55384 | Cover, Base Switch Hole |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55406D | Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55414 | Bezel, Cigar Lighter Hole |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55441 | Box, Instrument Panel |
| 55441B | Cushion, Instrument Panel Box |
| 55441C | Box, Instrument Panel Coin |
| 55441E | Box, Instrument Panel |
| 55441F | Box, Instrument Panel Coin |
| 55442H | Door, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55444C | Spring, Instrument Panel Box |
| 55450B | Box Assy, Coin |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55548B | Cover, Instrument Panel Hole |
| 55560A | Lock Assy, Glove Compartment Door |
| 55560B | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55571A | Hinge, Glove Compartment Door |
| 55573A | Hinge, Glove Compartment Door |
| 55620C | Holder, Instrument Panel Cup |
| 55682 | Spring, Instrument Panel Register Support |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
