Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

30 part groups · 2 illustrations

Illustrations

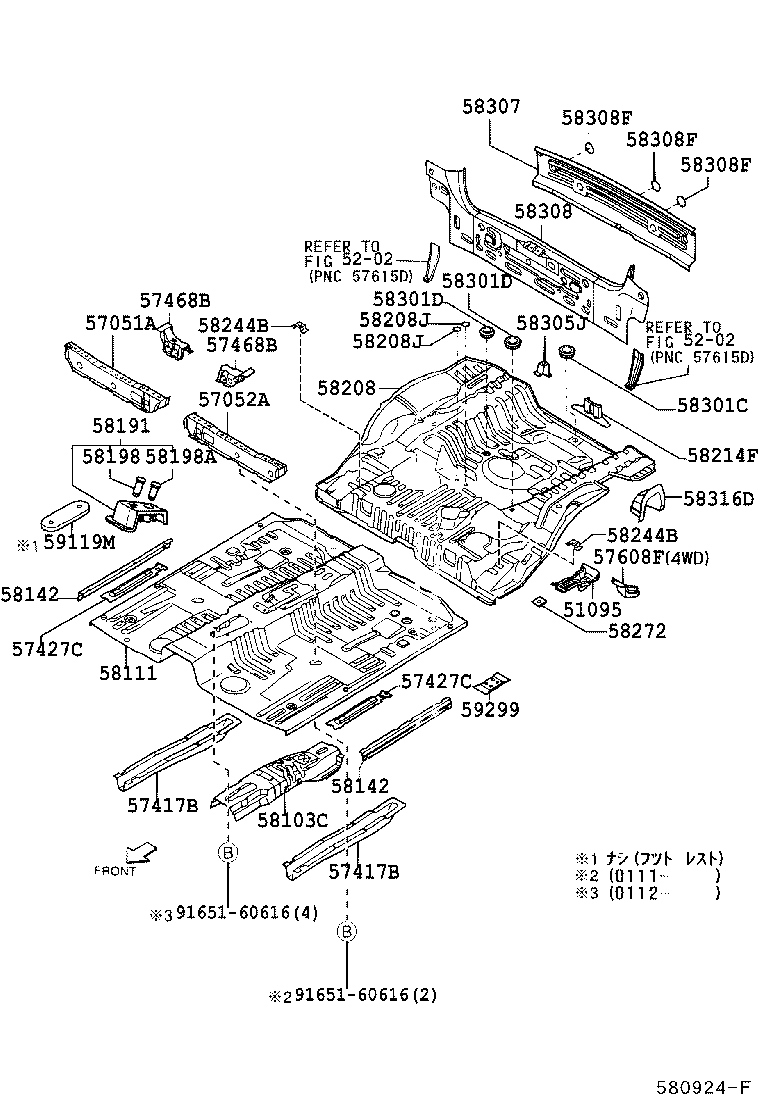

Figure 580925D 580925D 1998-09 → — Figure 580924F 580924F 1998-09 → —

Part groups

PNCDescription
51095 Hook, Transport, Rear
57051A Member Sub-assy, Front Floor Cross, RH
57052A Member Sub-assy, Front Floor Cross, LH
57417B Reinforcement, Front Floor Under
57427C Reinforcement, Front Floor, Upper
57468B Bracket, Front Seat, Rear
57608F Bracket, Fuel Tank Mounting, Rear RH
58103C Reinforcement Sub-assy, Front Floor, Front
58111 Pan, Front Floor
58111N Plug, Hole(FOR FRONT FLOOR)
58142 Reinforcement, Floor Side Member TO Floor Pan
58191 Footrest, Front Floor
58198 Clip, Footrest
58198A Clip, Footrest, NO.1
58208 Pan, Center Floor
58208J Cover, Hole
58214F Bracket, Jack Set
58244B Bracket, Rear Seat Cushion Mounting
58272 Reinforcement, Belt Anchor TO Floor Pan
58301C Plug, Hole(FOR REAR FLOOR NO.1)
58301D Plug, Hole(FOR REAR FLOOR NO.2)
58305J Bracket, Spare Wheel Carrier
58307 Panel Sub-assy, Body Lower Back
58308 Panel Sub-assy, Body Lower Back, Inner
58308E Cover, Hole(FOR LOWER BACK)
58308F Plug, Hole(FOR LOWER BACK)
58311A Plug, Hole(FOR FLOOR PAN)
58316D Extension, Rear Floor Pan, LH
59119M Cushion, Front Floor
59299 Retainer, Center Seat Hinge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
