Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 2 illustrations

Illustrations

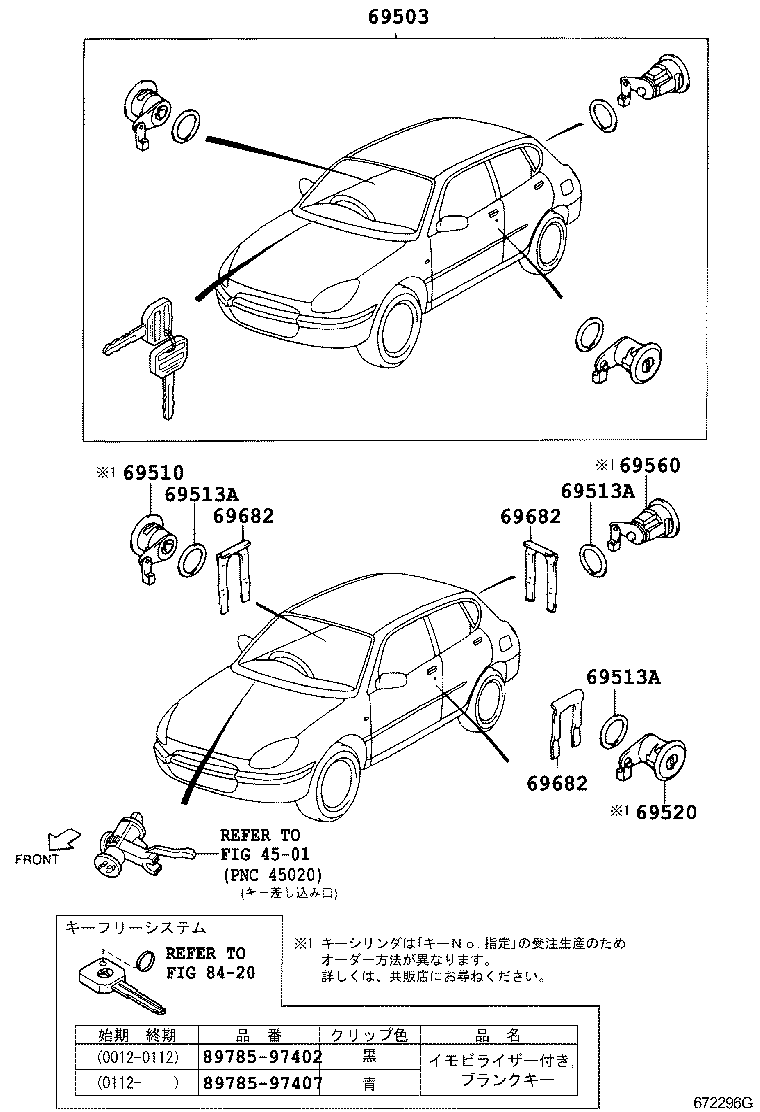

Figure 671478C 671478C 1998-09 → — Figure 672296G 672296G 2000-12 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69510 Cylinder Assy, Front Door Lock, RH
69513A Pad, Door Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
69682 Retainer, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
