Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

59 part groups · 10 illustrations

Illustrations

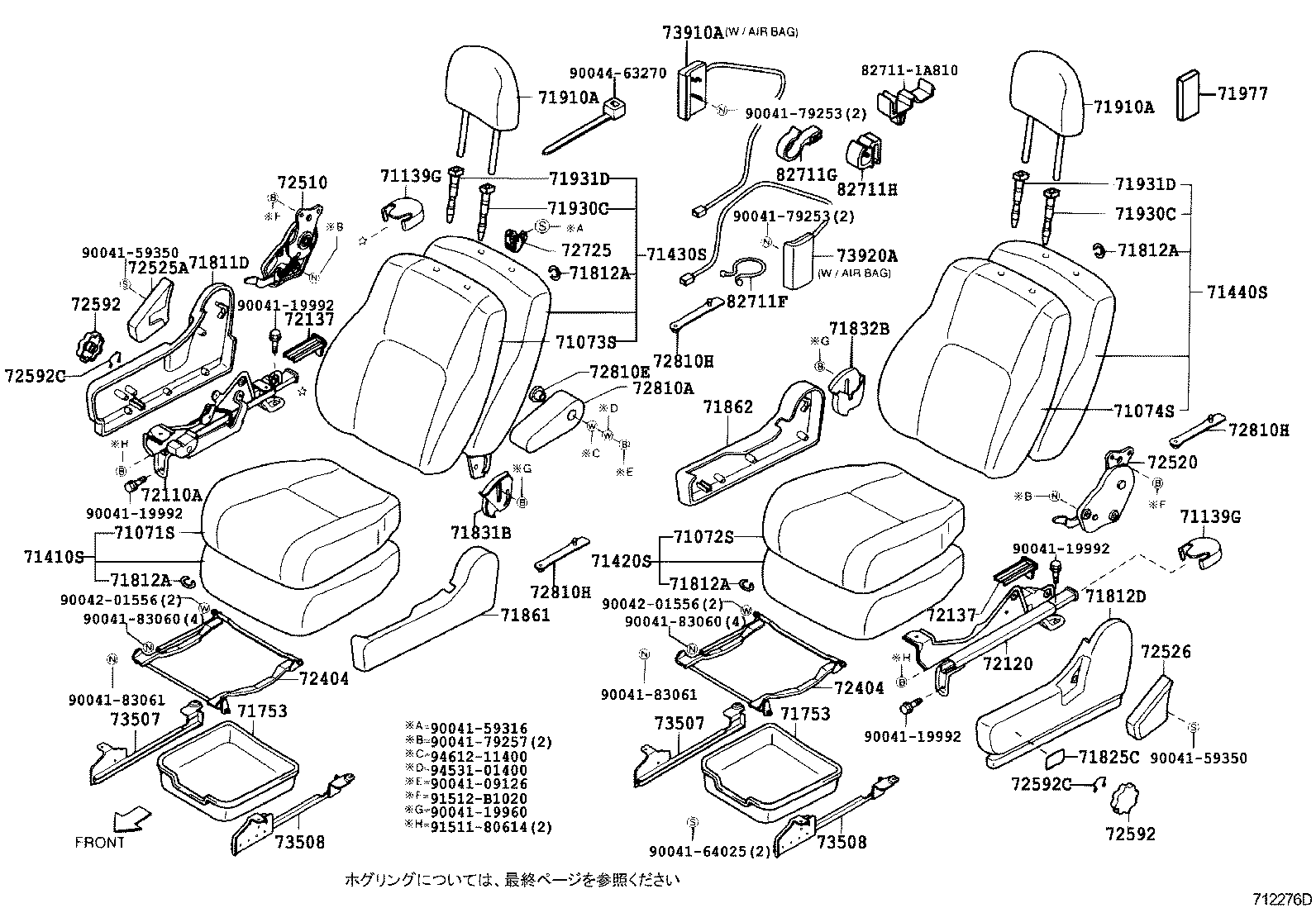

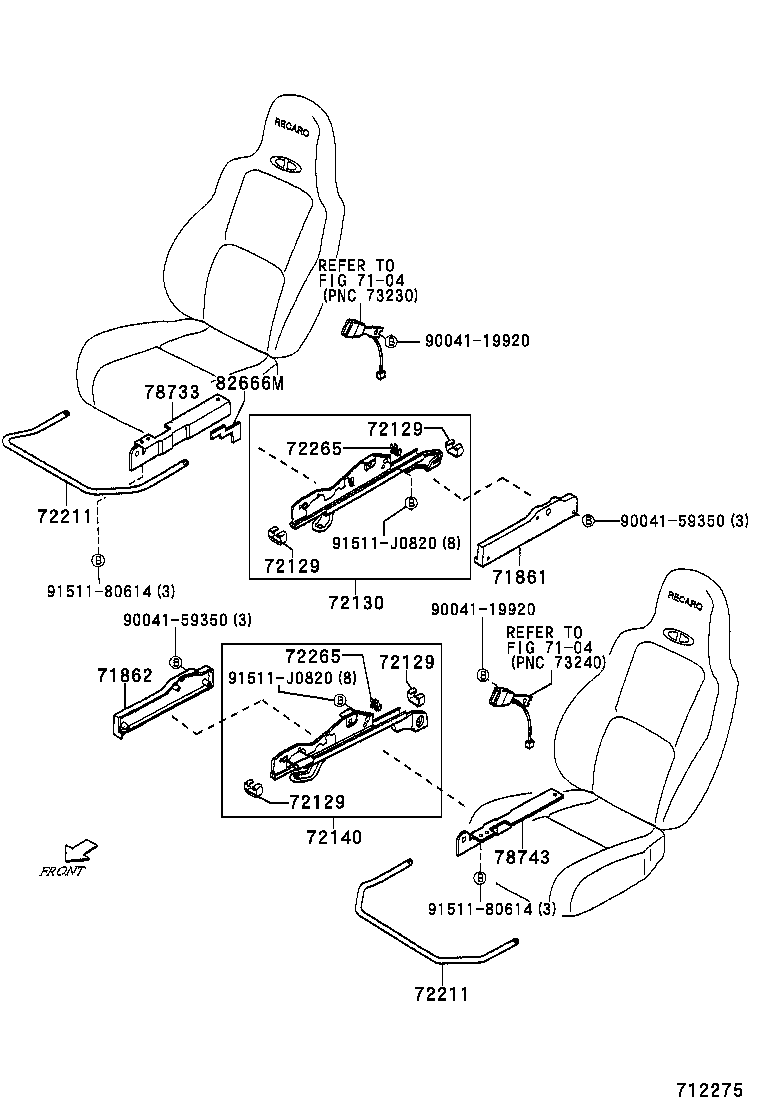

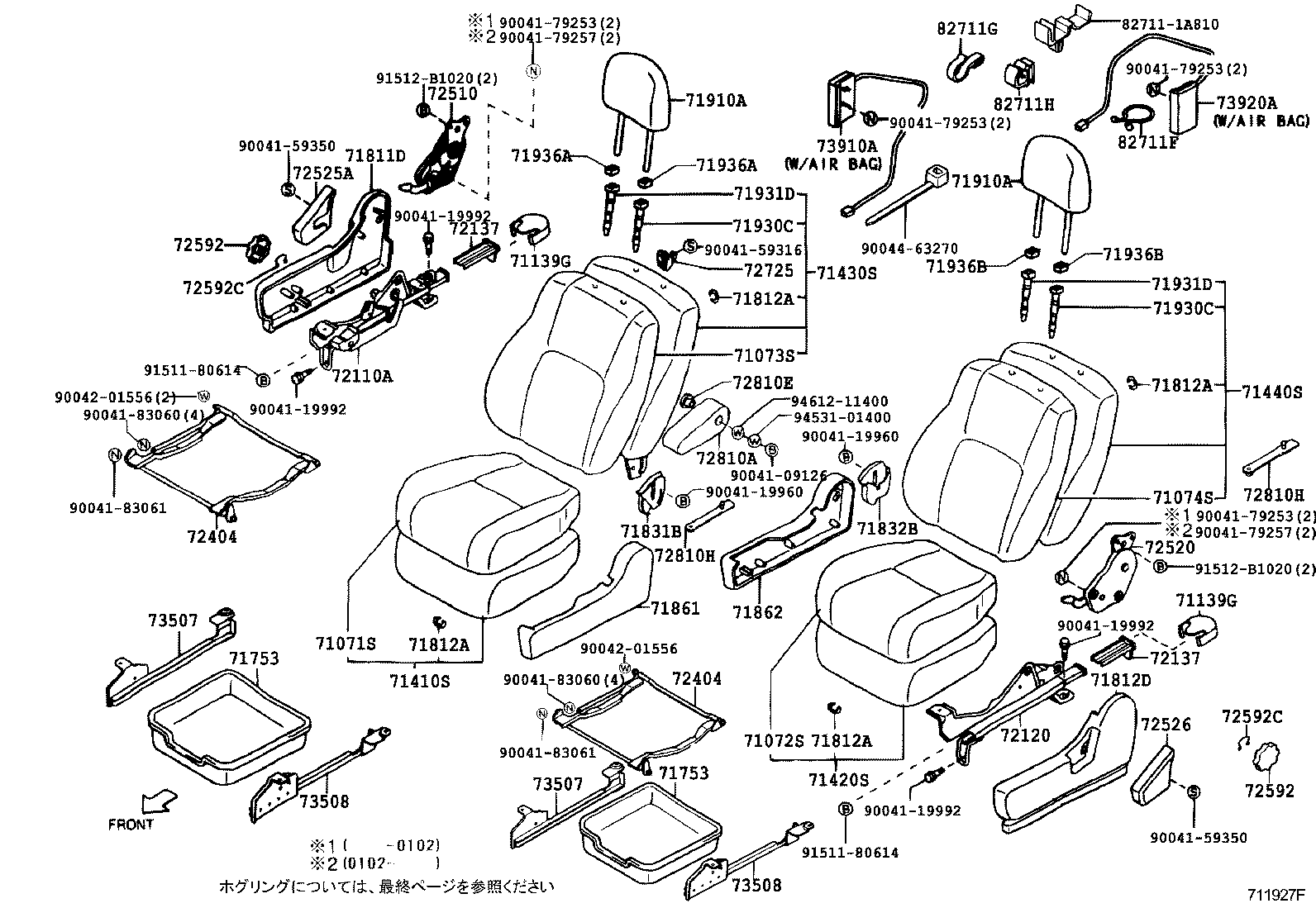

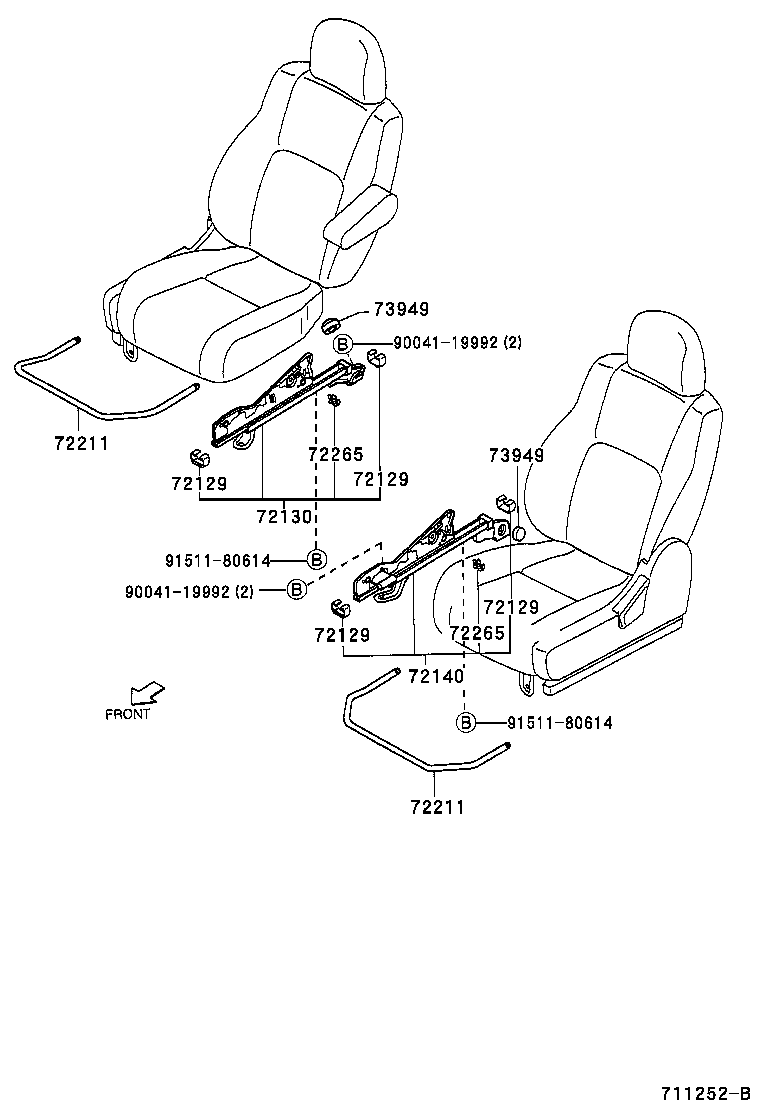

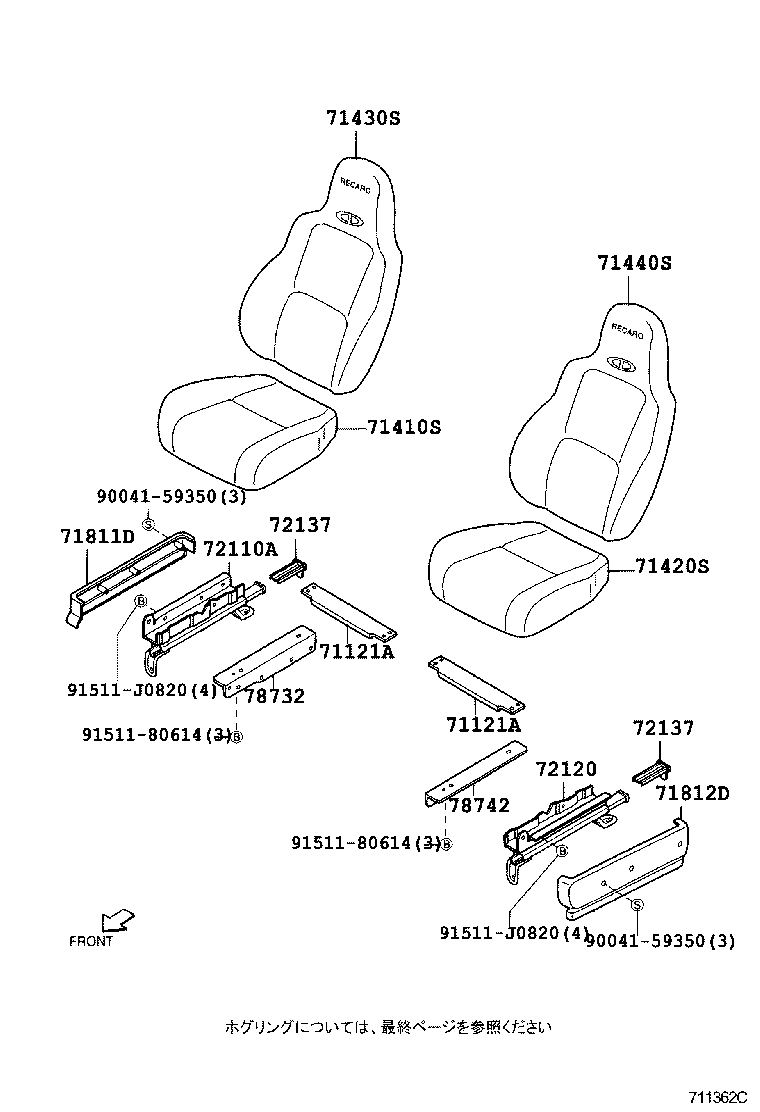

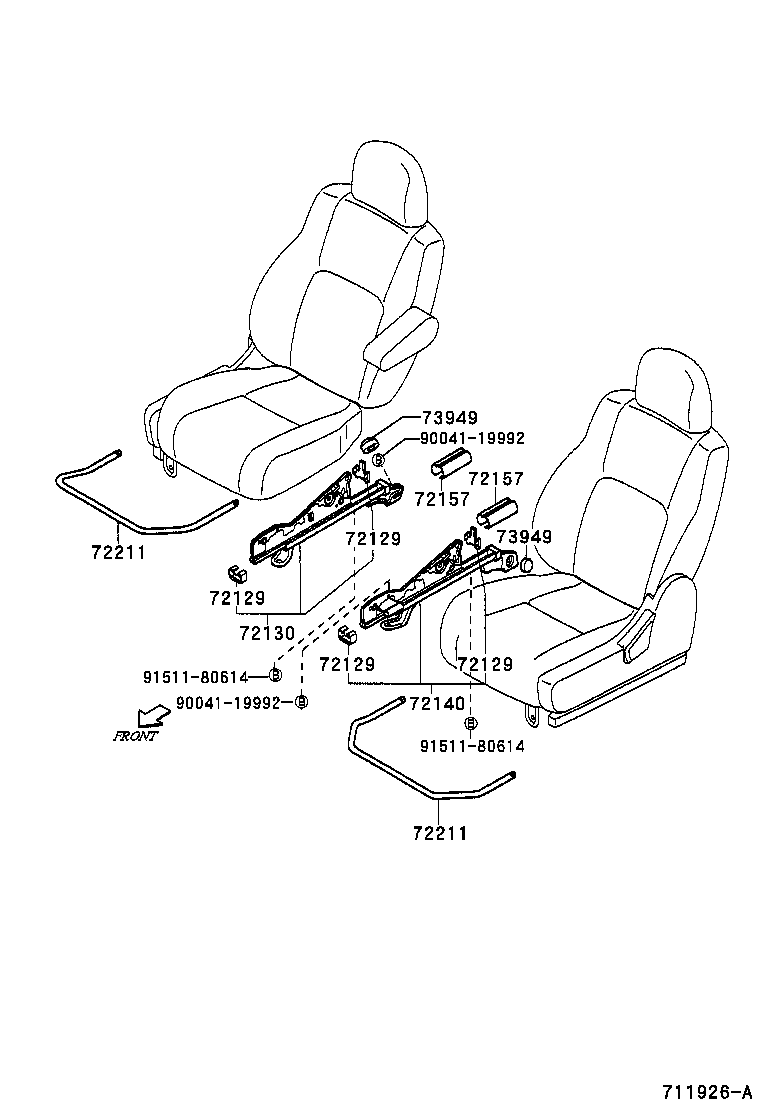

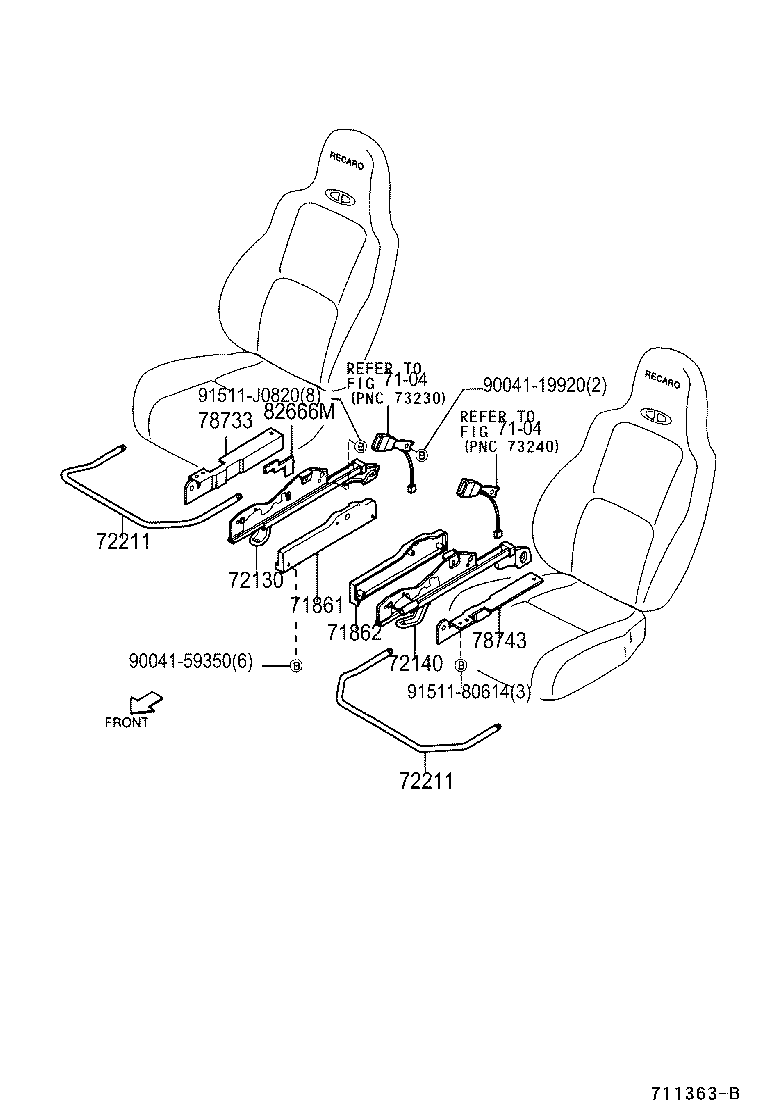

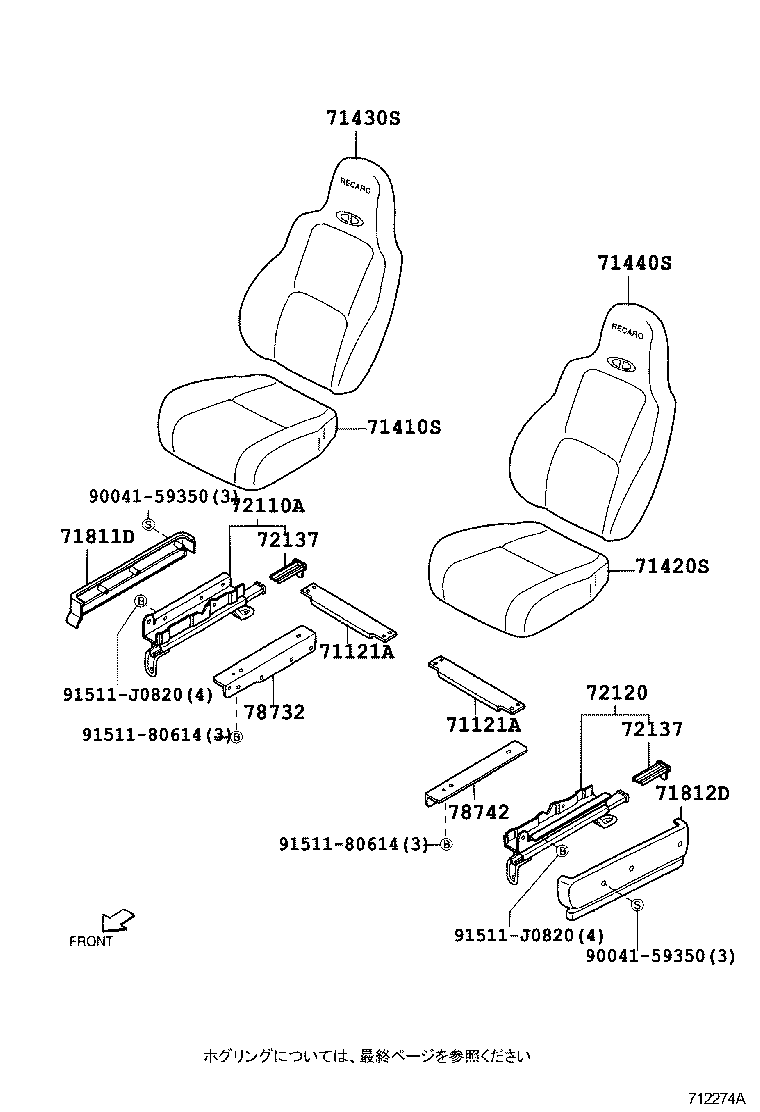

Figure 711251J 711251J 1998-09 → 2000-05 Figure 711362C 711362C 1998-09 → 2000-05 Figure 711927F 711927F 2000-05 → 2001-12 Figure 712276D 712276D 2001-12 → — Figure 712274A 712274A 2001-12 → — Figure 711252B 711252B 1998-09 → 2000-05 Figure 711363B 711363B 1998-09 → 2000-05 Figure 711926A 711926A 2000-05 → — Figure 712275 712275 2001-12 → — Figure 718165A 718165A 1998-09 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121A Bracket, Front Seat Cushion, Outer
71139G Cover, Front Seat Leg
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812A Ring, Hog, Small (FOR FRONT SEAT)
71812D Shield, Front Seat Cushion, LH
71825C Plate
71831B Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71850D Harness Assy, Front Seat
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71910A Headrest Assy, Front Seat
71930C Support, Front Seat Headrest, LH
71931D Support, Front Seat Headrest, RH
71936A Plate, Front Seat Headrest, NO.2 RH
71936B Plate, Front Seat Headrest, NO.2 LH
71977 Cushion
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72129 Protector, Seat Track Lower Rail, NO.1
72130 Track Assy, RH Seat, Inner
72137 Cover, Seat Track, Outer RH
72140 Track Assy, LH Seat, Inner
72157 Cover, Seat Track Bracket, Inner
72211 Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72404 Link Sub-assy, Vertical Seat
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72592 Knob, Reclining Adjuster
72592C Ring, Shaft Snap
72725 Hook, Front Seatback
72810A Armrest Assy, Seat, RH
72810E Bush, Front Seat Armrest, NO.1
72810H Clamp, Front Seat Armrest
73507 Rail Sub-assy, Front Seat
73508 Rail Sub-assy, Front Seat
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
73949 Cap
78732 Plate, Front Seat Cushion, NO.1 RH
78733 Plate, Front Seat Cushion, NO.2 RH
78742 Plate, Front Seat Cushion, NO.1 LH
78743 Plate, Front Seat Cushion, NO.2 LH
82666M Holder, Connector
82711F Clamp, Wiring Harness
82711G Clamp, Wiring Harness
82711H Clamp, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
