Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

16 part groups · 3 illustrations

Illustrations

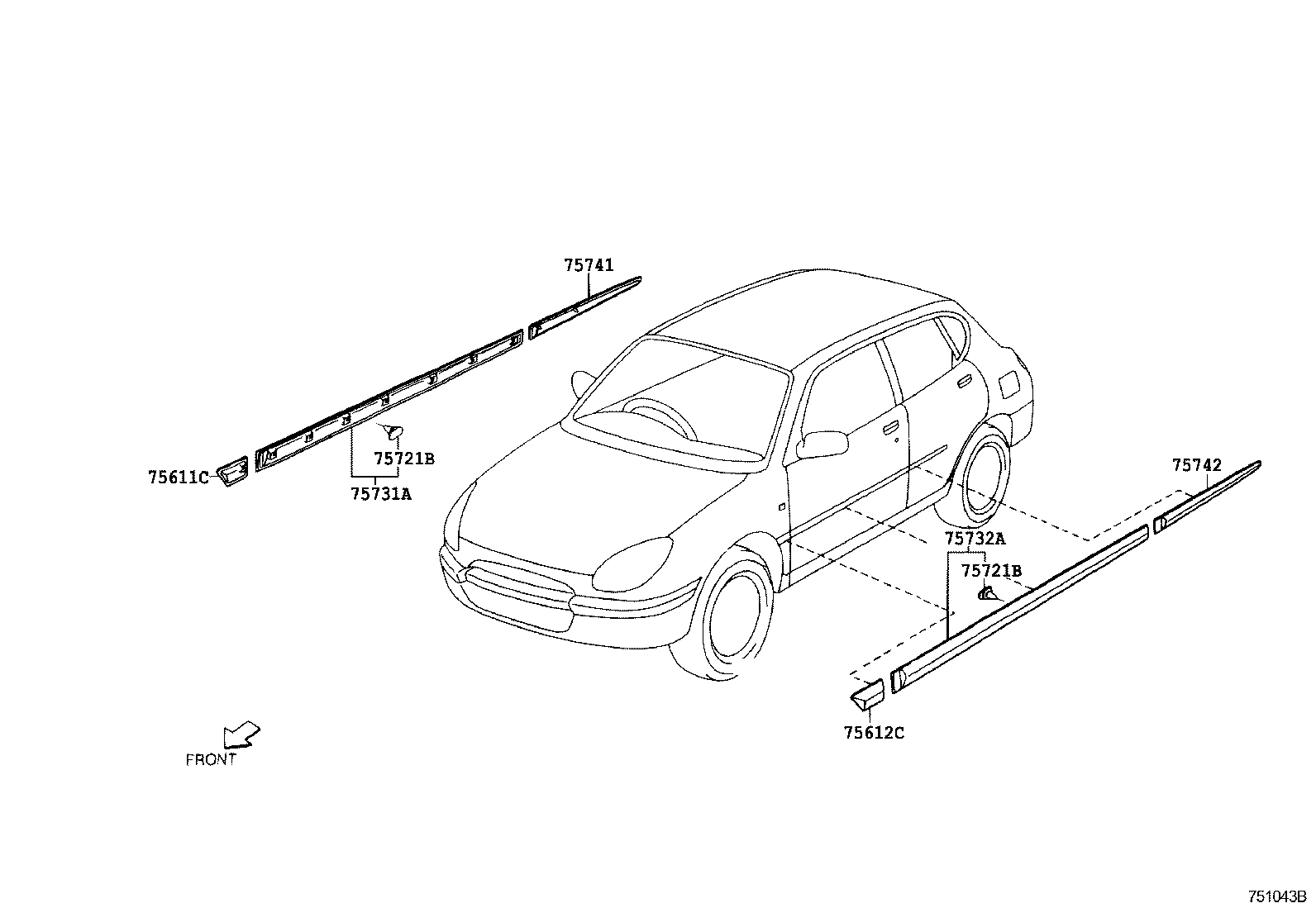

Figure 750564E 750564E 1998-09 → 2001-12 Figure 751043B 751043B 2001-12 → — Figure 750565 750565 1998-09 → —

Part groups

PNCDescription
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75611C Moulding, Front Fender, Outside RH
75612C Moulding, Front Fender, Outside LH
75721B Clip(FOR FRONT DOOR BELT MOULDING SET)
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75871 Moulding, Front Fender Wheel Opening, RH
75871A Clip (FOR FRONT FENDER MOULDING NO.1)
75871B Clip (FOR FRONT FENDER MOULDING NO.2)
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75873A Clip (FOR QUARTER OPENING MOULDING)
75874 Moulding, Quarter Panel Wheel Opening, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
