Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

22 part groups · 5 illustrations

Illustrations

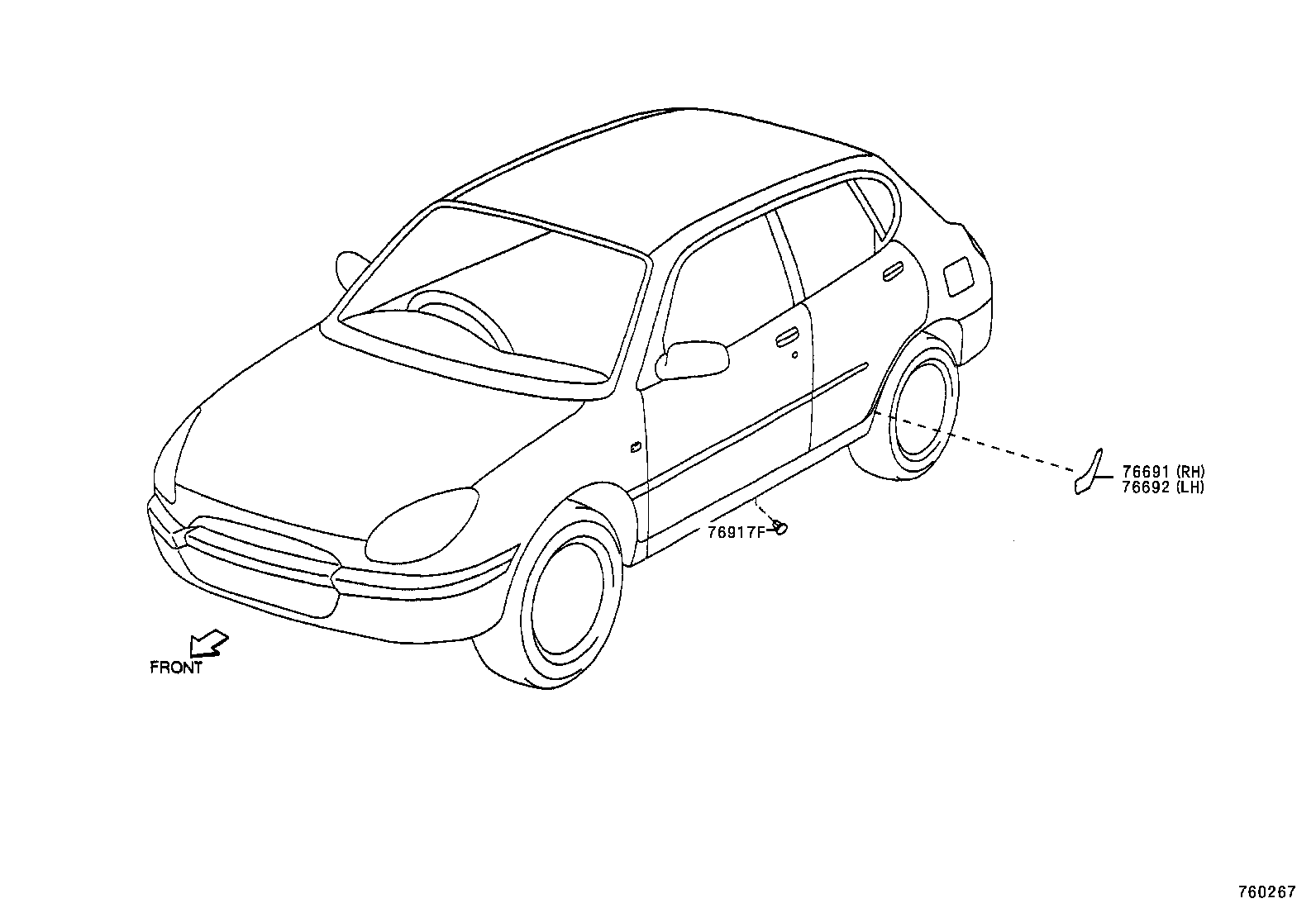

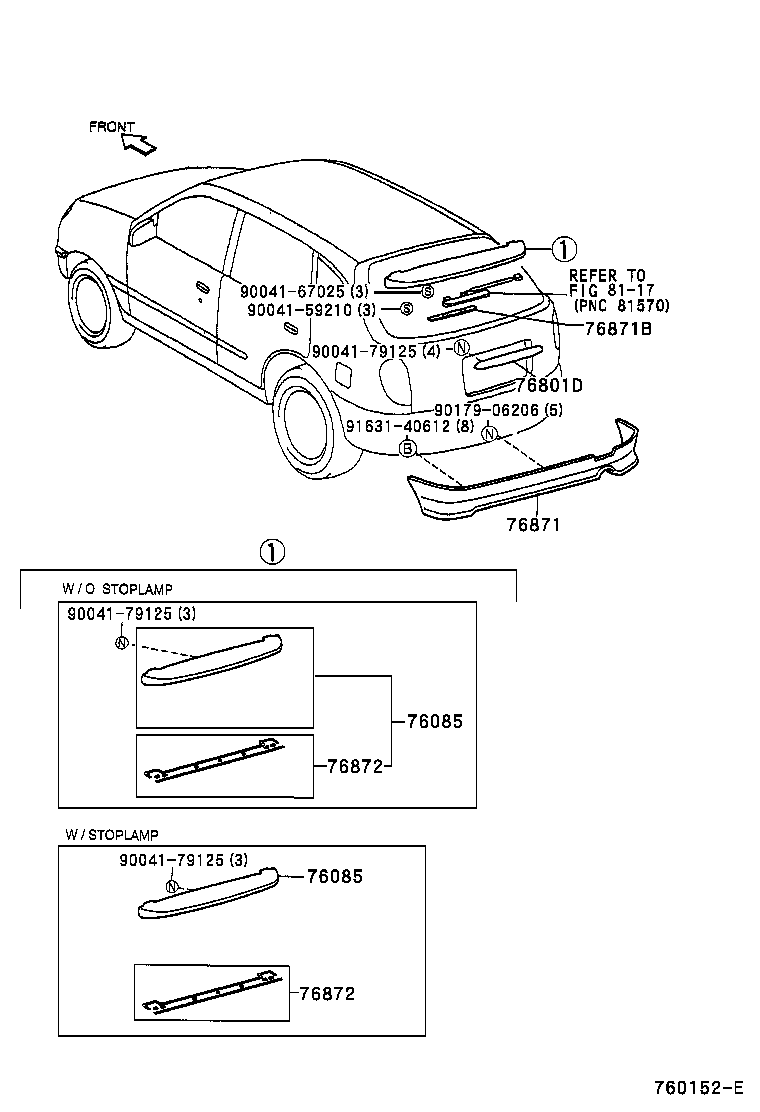

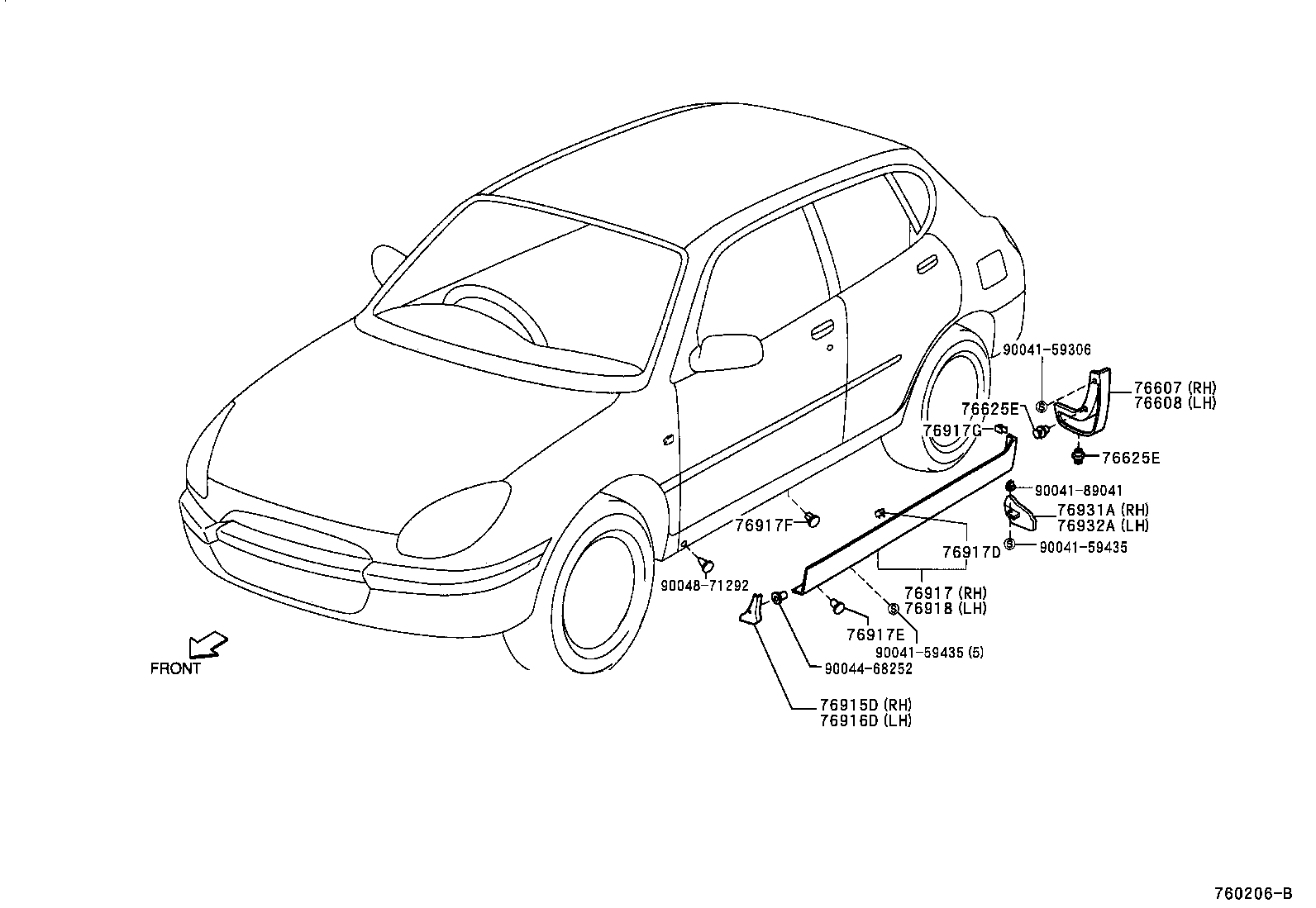

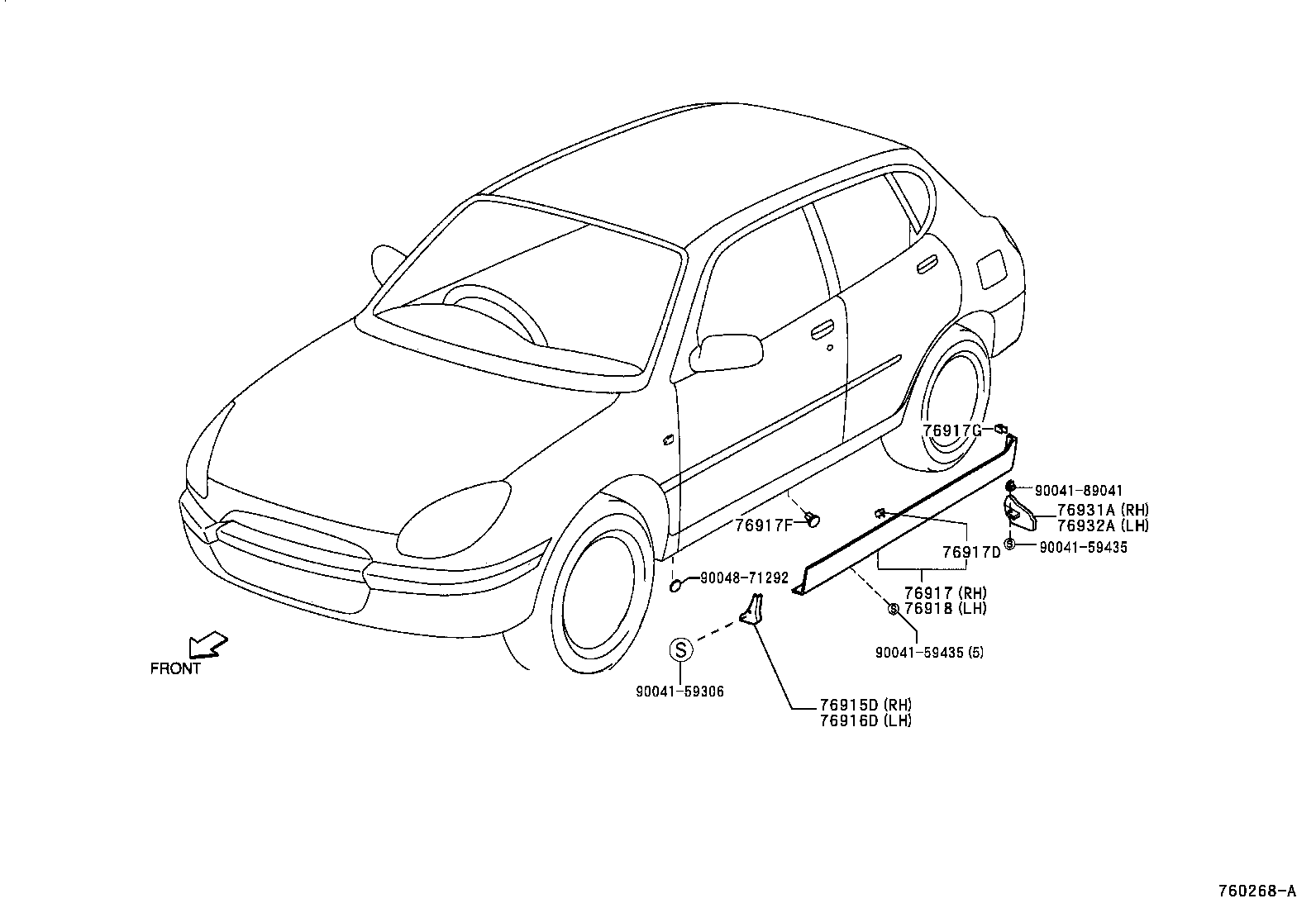

Figure 760151C 760151C 1998-09 → 2001-12 Figure 760206B 760206B 2000-05 → 2001-12 Figure 760267 760267 2001-12 → — Figure 760268A 760268A 2001-12 → — Figure 760152E 760152E 1998-09 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76625E Clip
76691 Protector, Quarter Panel, Rear RH
76692 Protector, Quarter Panel, Rear LH
76801D Garnish Sub-assy, Back Door, Outside
76851 Cover, Front Spoiler
76852C Cover, FR Spoiler, NO.2
76871 Spoiler, Rear
76871B Cover, Rear Spoiler
76872 Protector, Rear Spoiler, NO.1
76915D Mudguard, Side, Front RH
76916D Mudguard, Side, Front LH
76917 Mudguard, Side, Rear RH
76917D Clip
76917E Clip
76917F Plug, Hole
76917G Clamp
76918 Mudguard, Side, Rear LH
76931A Bracket, Side Mudguard, NO.1 RH
76932A Bracket, Side Mudguard, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
