Toyota Duet
1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan
Discontinued model
Data version 2005-01

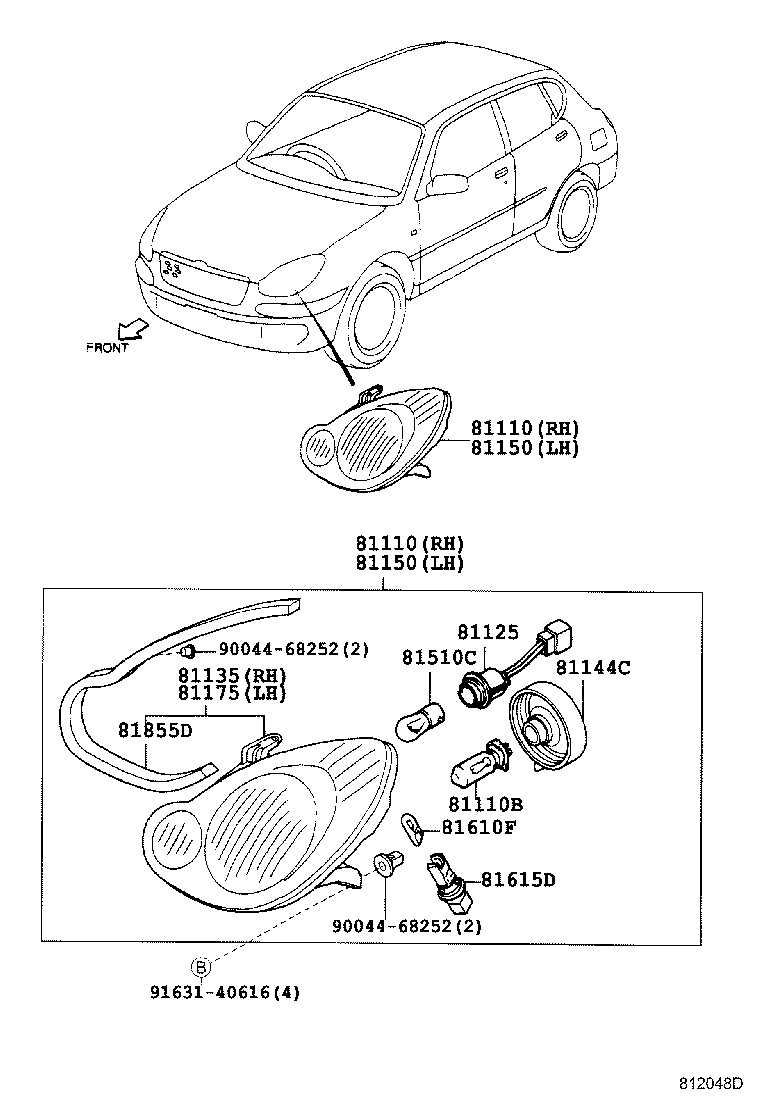

Headlamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81125 | Cord, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 81855D | Protector, Headlamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
