Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 7 illustrations

Illustrations

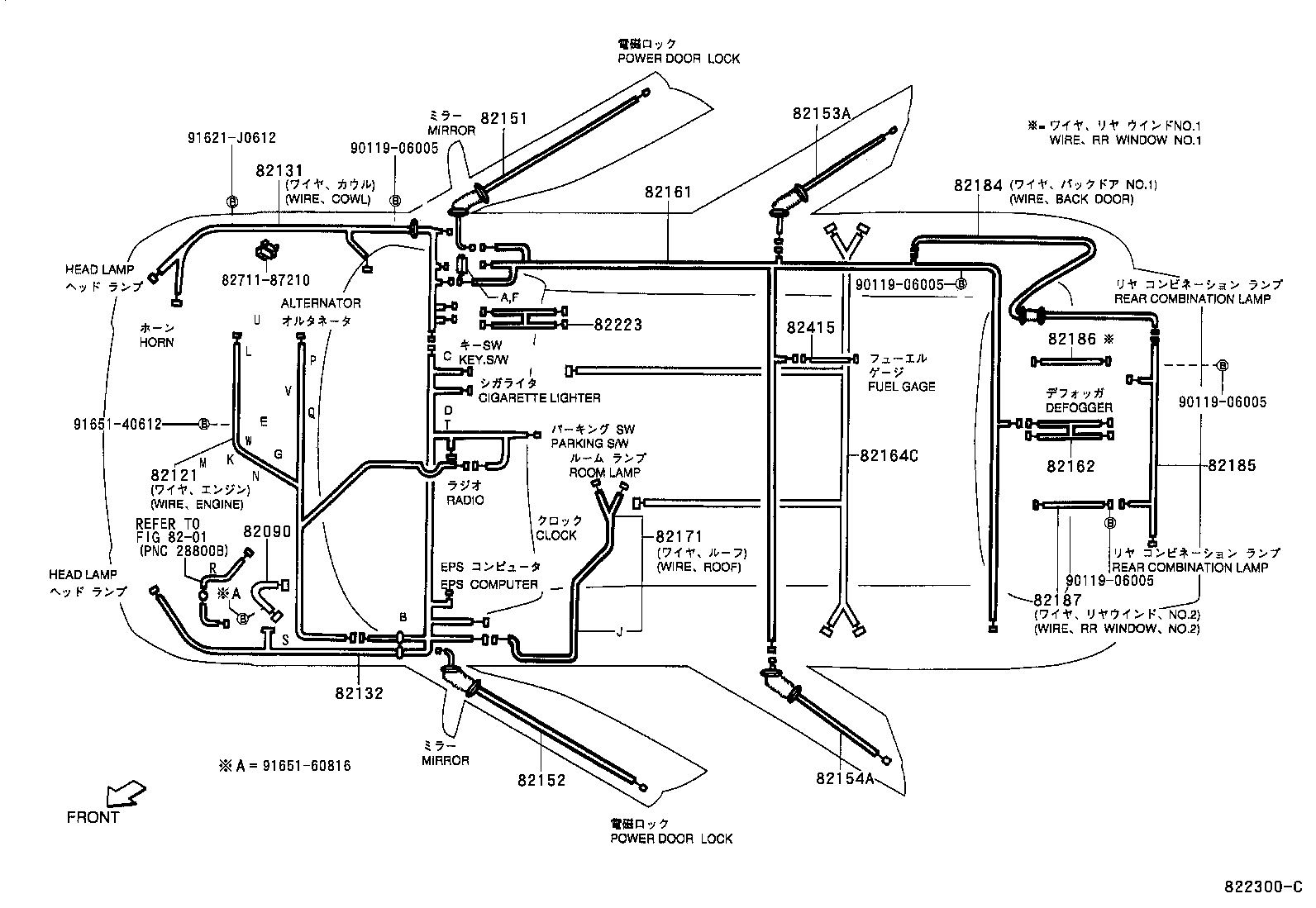

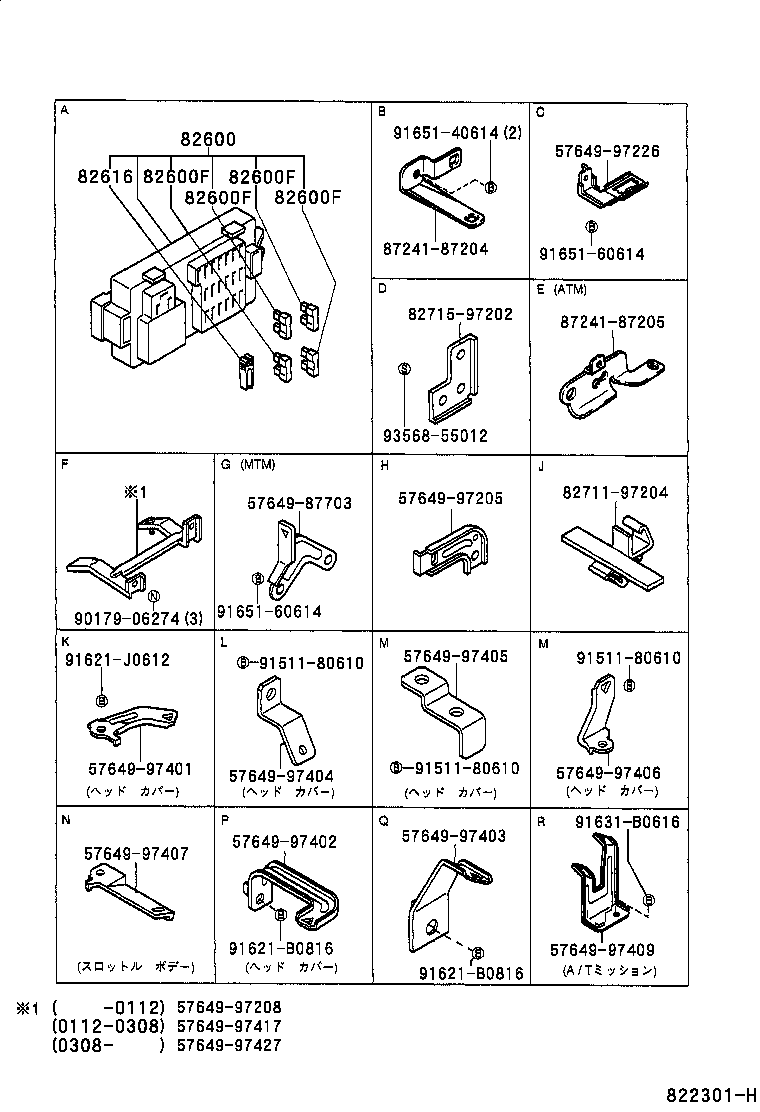

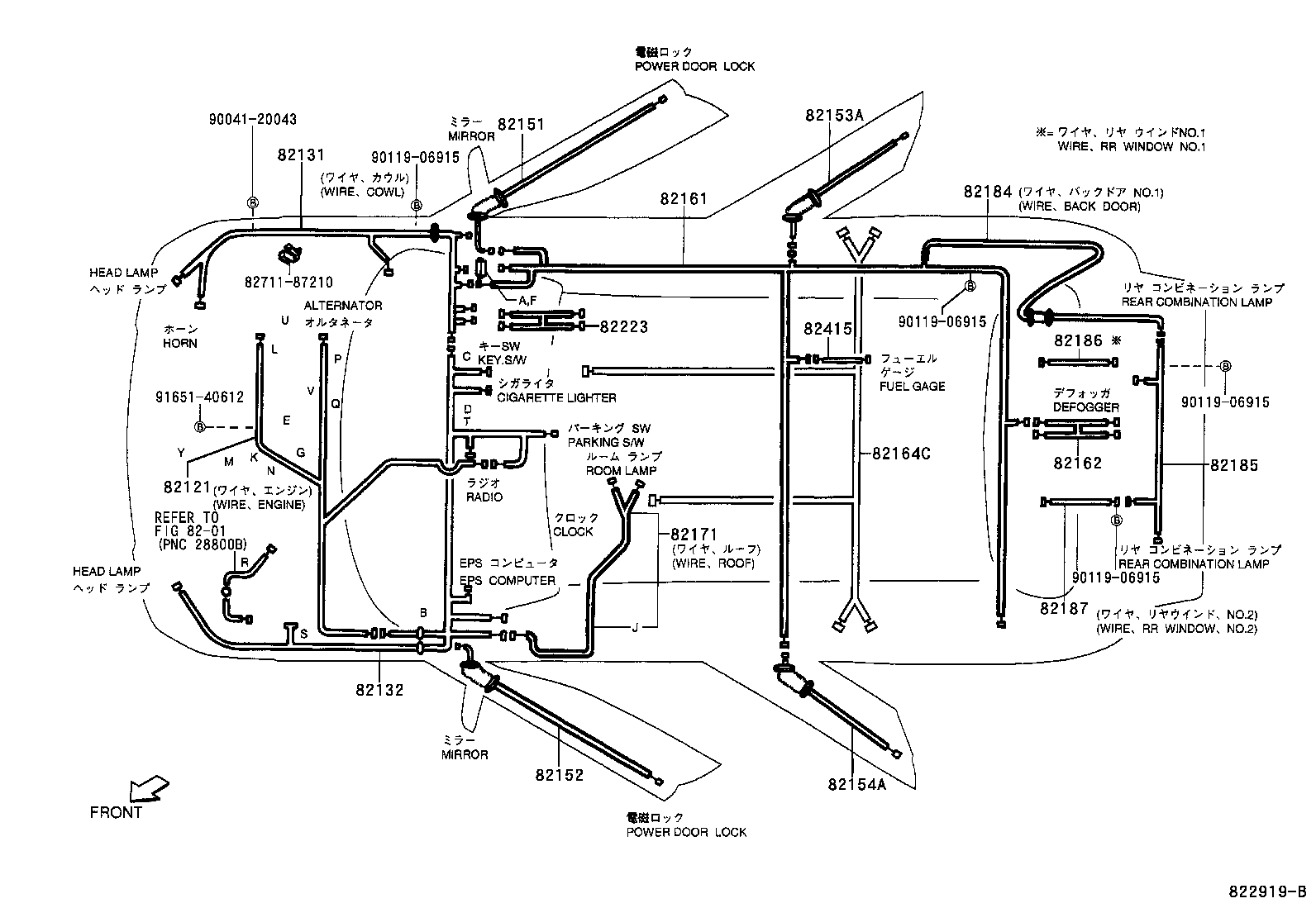

Figure 821653B 821653B 1998-09 → 2000-05 Figure 822300C 822300C 2000-05 → 2001-12 Figure 822919B 822919B 2001-12 → — Figure 821654B 821654B 1998-09 → 2000-05 Figure 822301H 822301H 2000-05 → — Figure 822406C 822406C 2000-05 → 2001-12 Figure 822920C 822920C 2001-12 → —

Part groups

PNCDescription
82090 Wire Assy, Extension
82121 Wire, Engine
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82223 Wire, Switch
82342 Wire, Clock
82415 Wire, Fuel Pump
82600 Block Assy, Fuse
82600F Fuse, Fuse Block
82616 Puller, Fuse
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
