Toyota Duet
1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan
Discontinued model
Data version 2005-01
Meter
14 part groups · 7 illustrations
Part groups

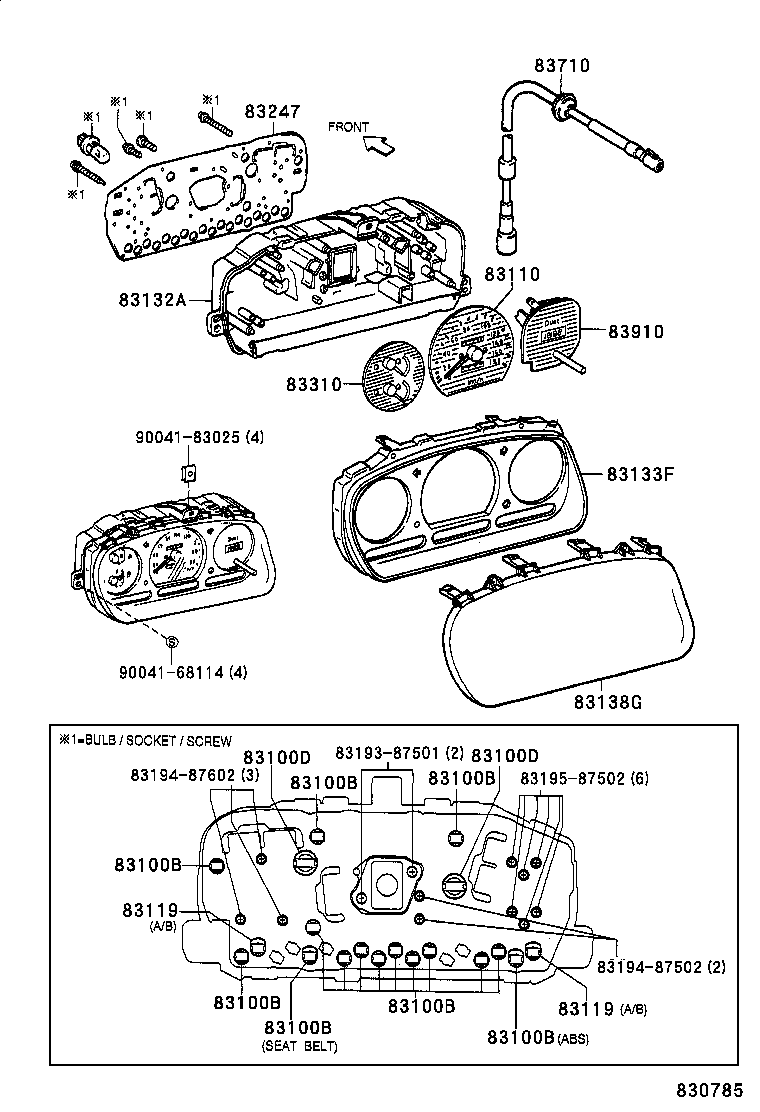

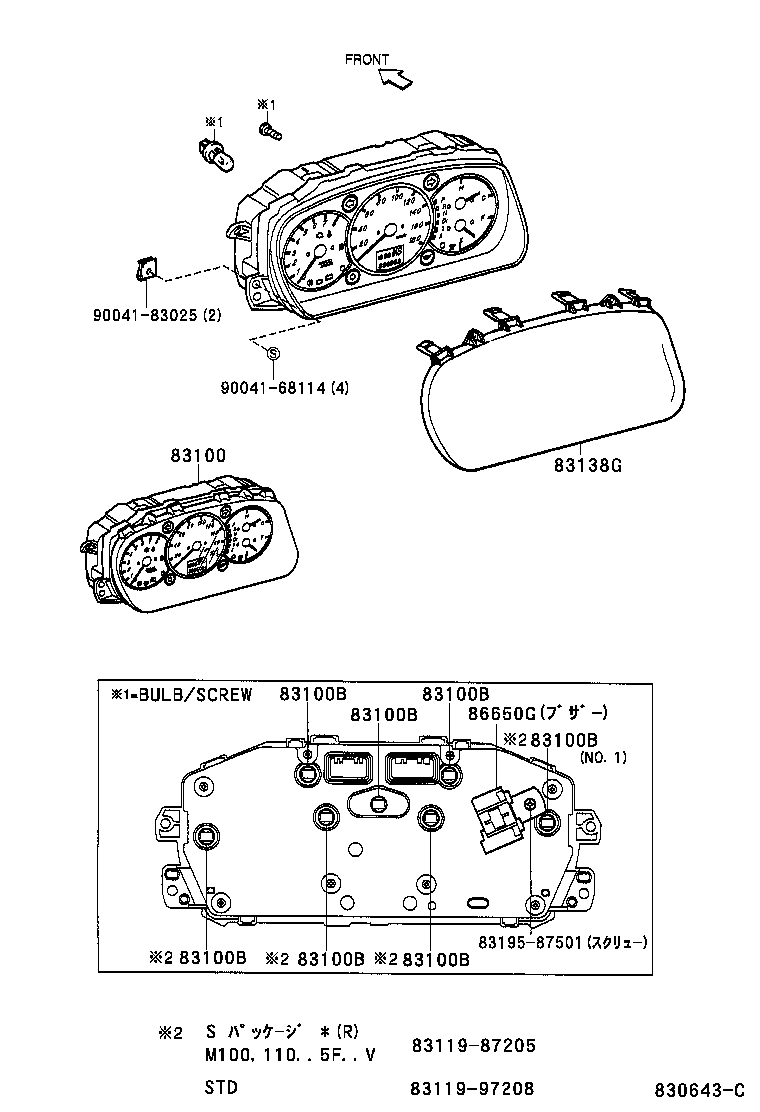

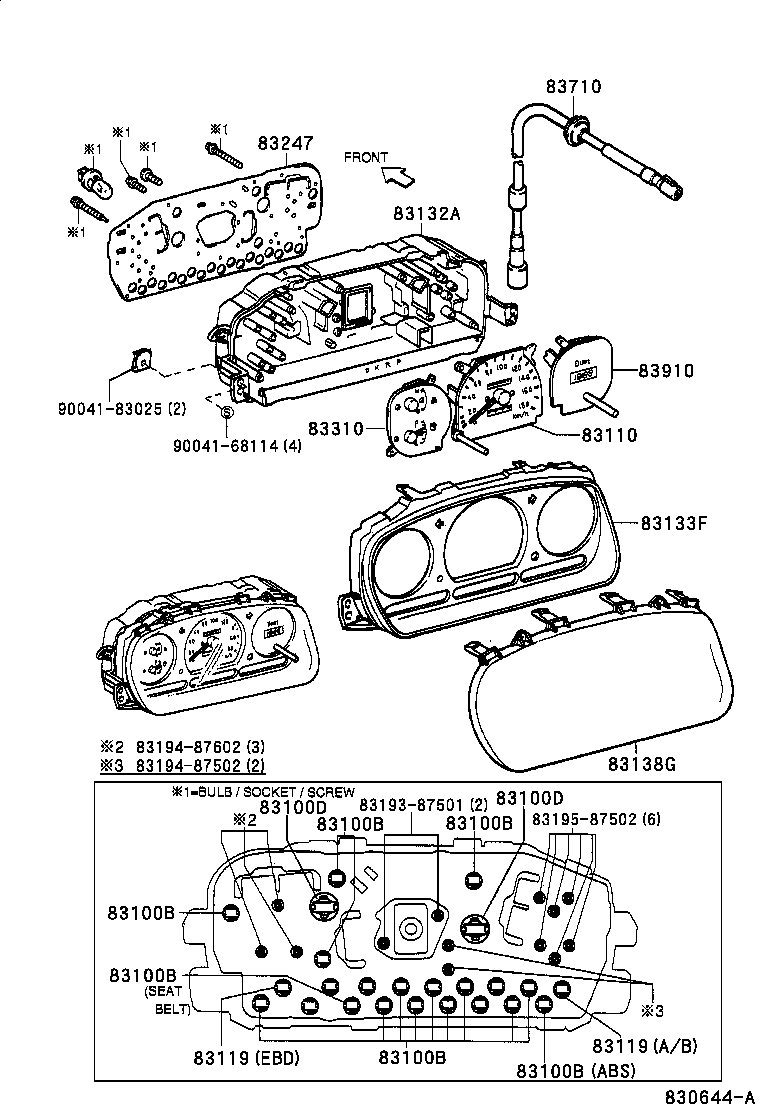

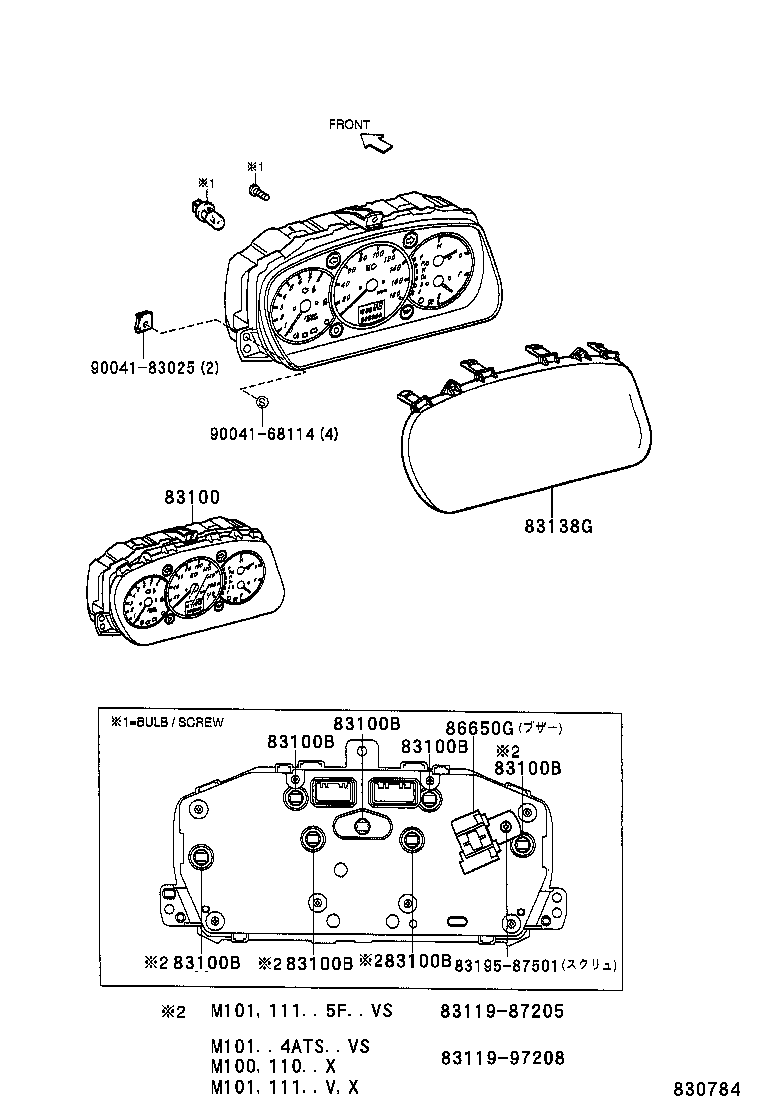

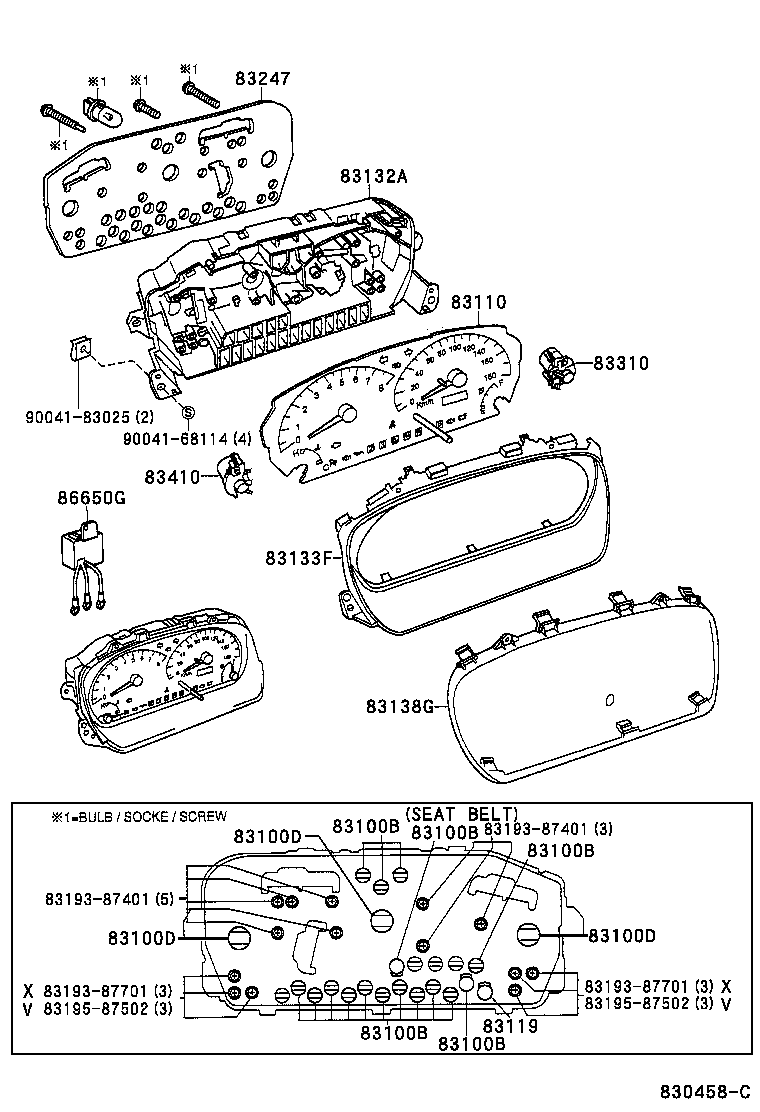

| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100D | Bulb, Combination Meter, NO.2 |
| 83110 | Speedometer Assy |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83132A | Case, Meter |
| 83133F | Plate, Meter |
| 83138G | Glass, Combination Meter |
| 83247 | Plate, Meter Circuit |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |

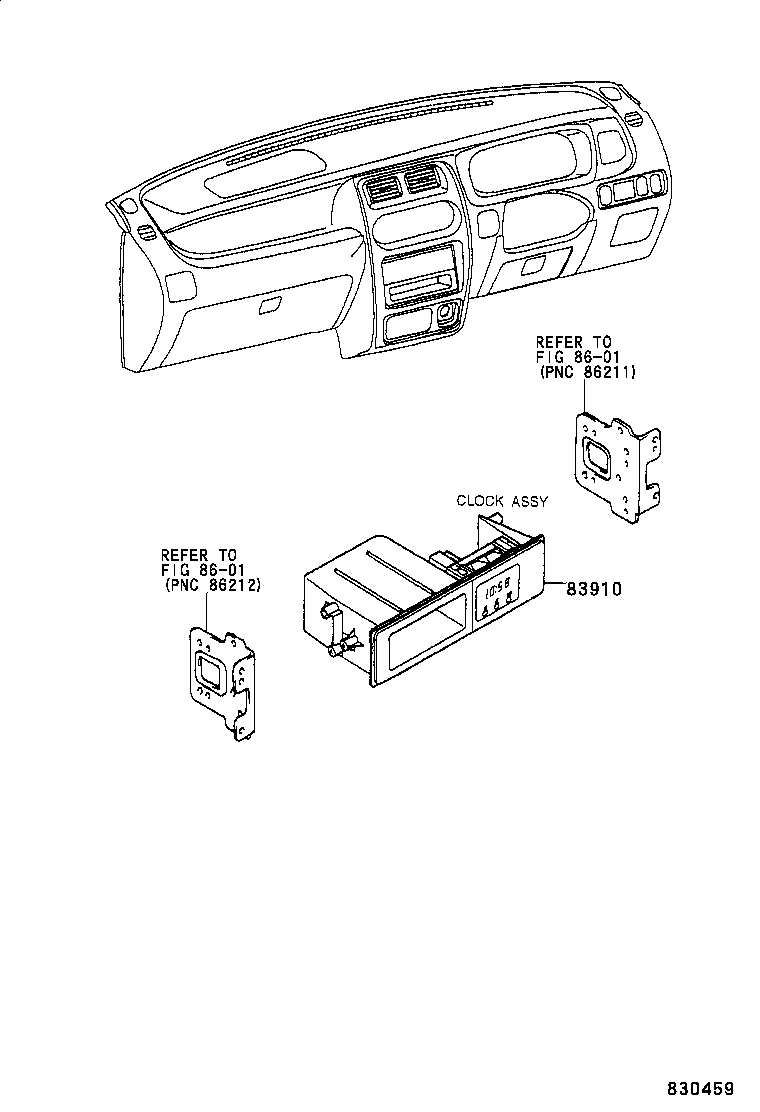

| 83910 | Clock Assy |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
