Toyota Duet

1998-09 → 2004-05 · chassis M100A,M101A,M110A,M111A · catalogue 113110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

64 part groups · 8 illustrations

Illustrations

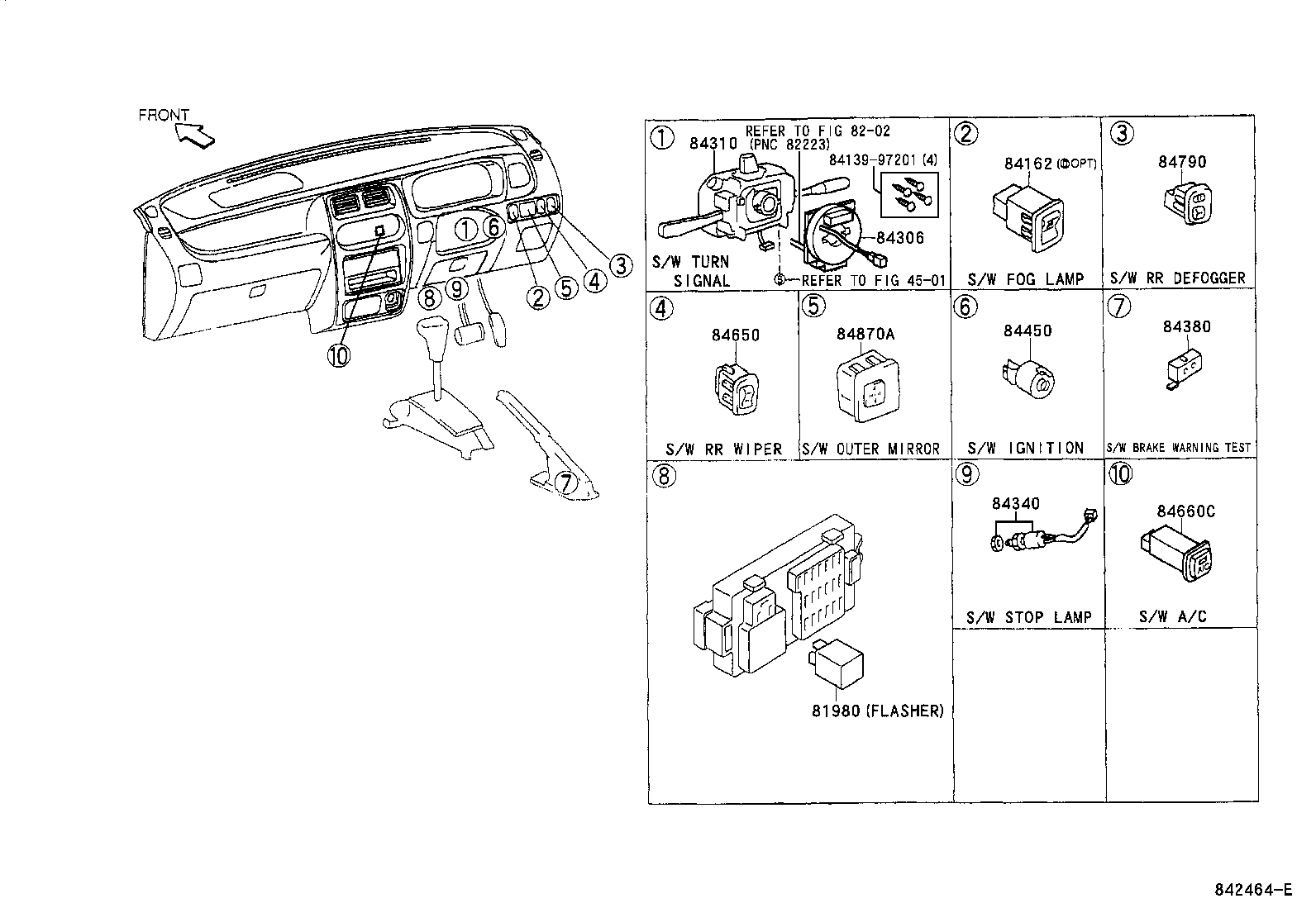

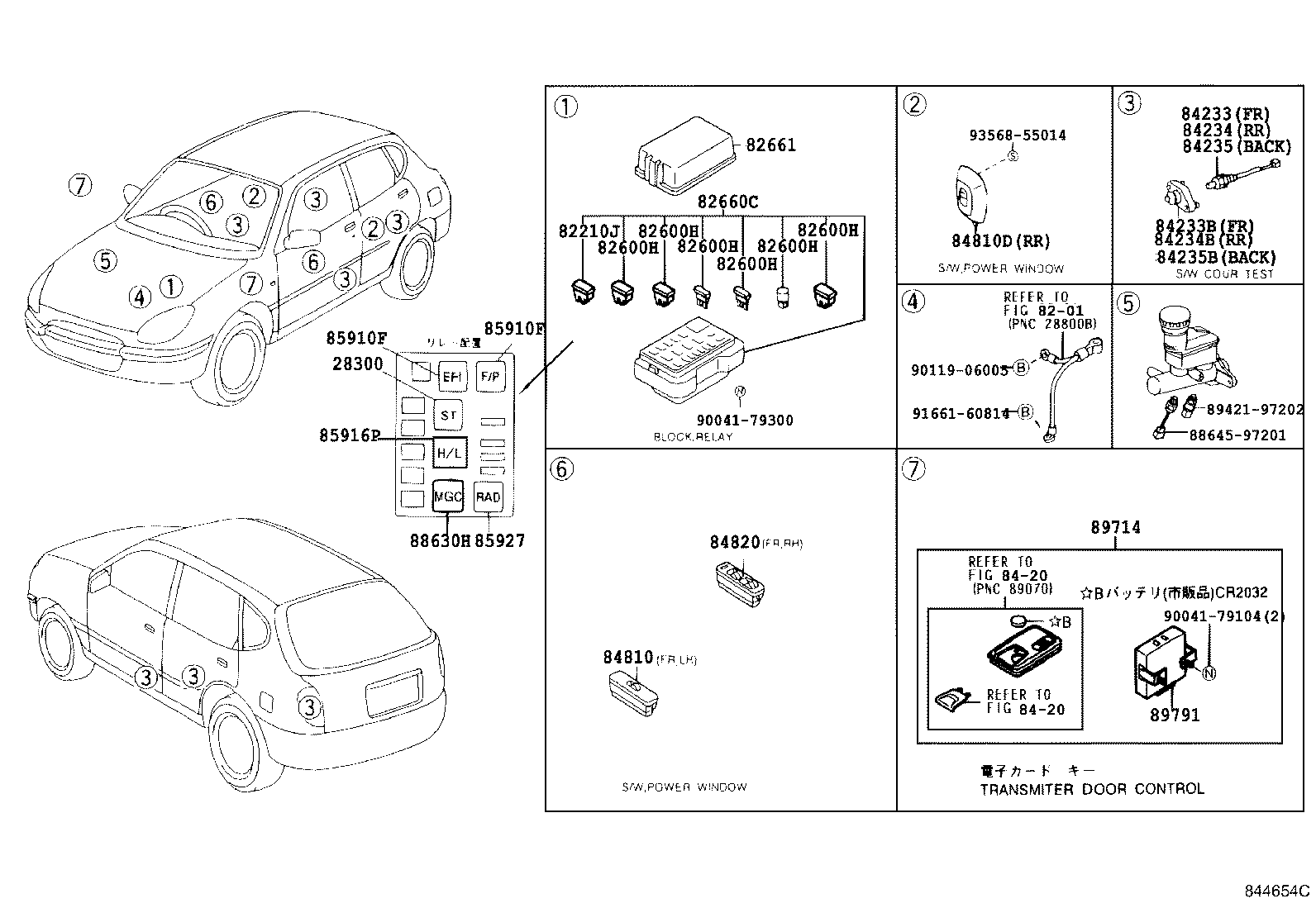

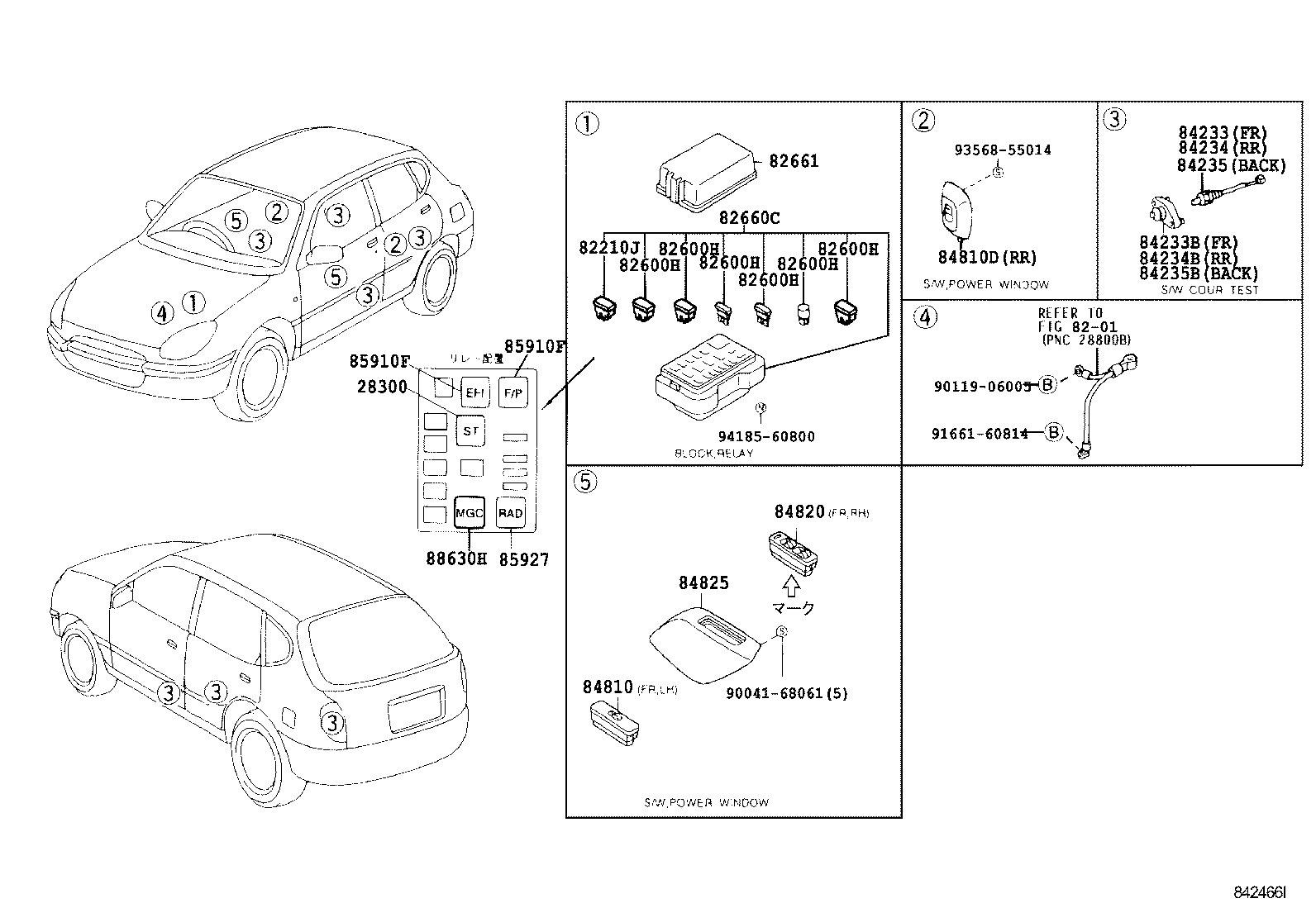

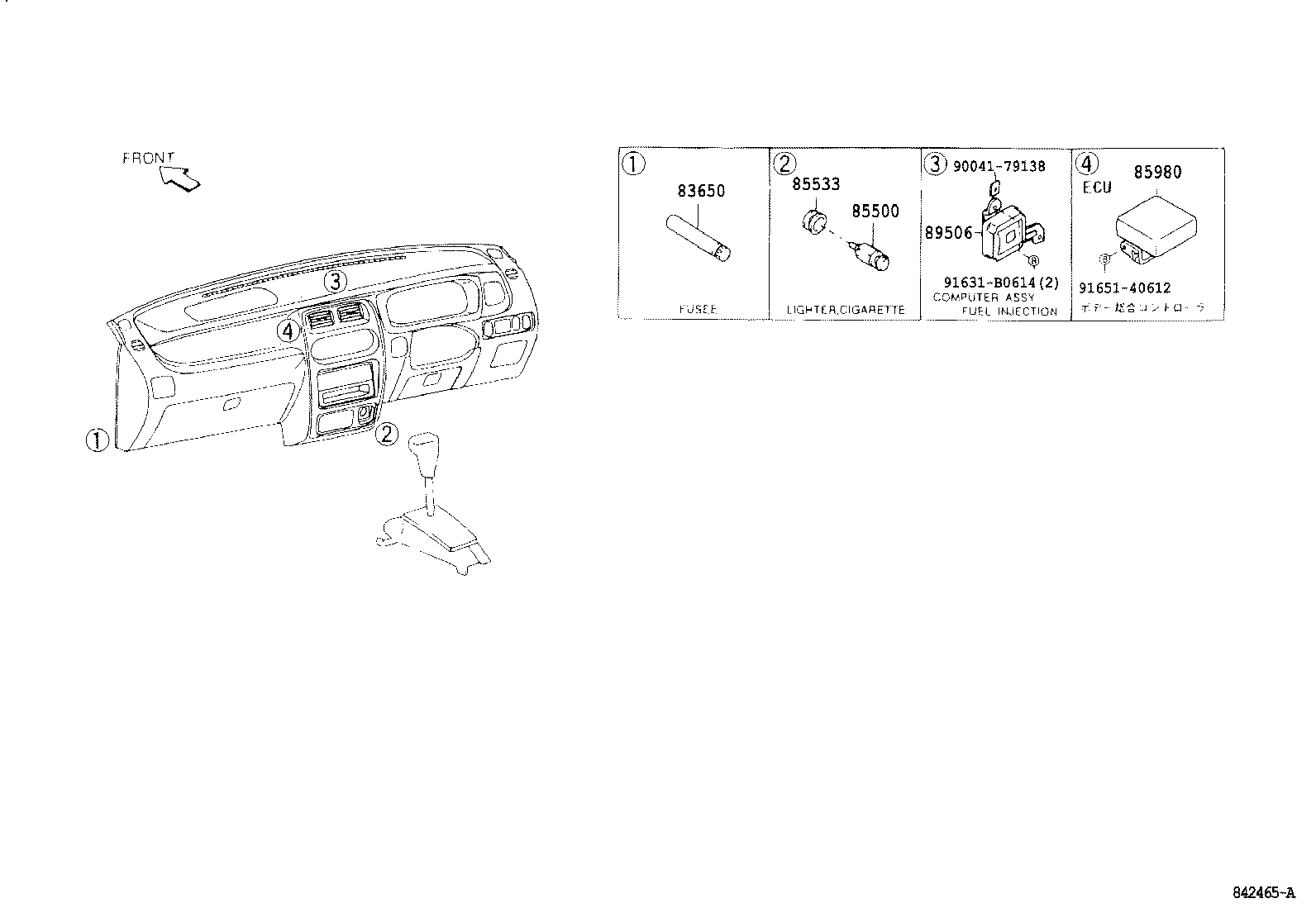

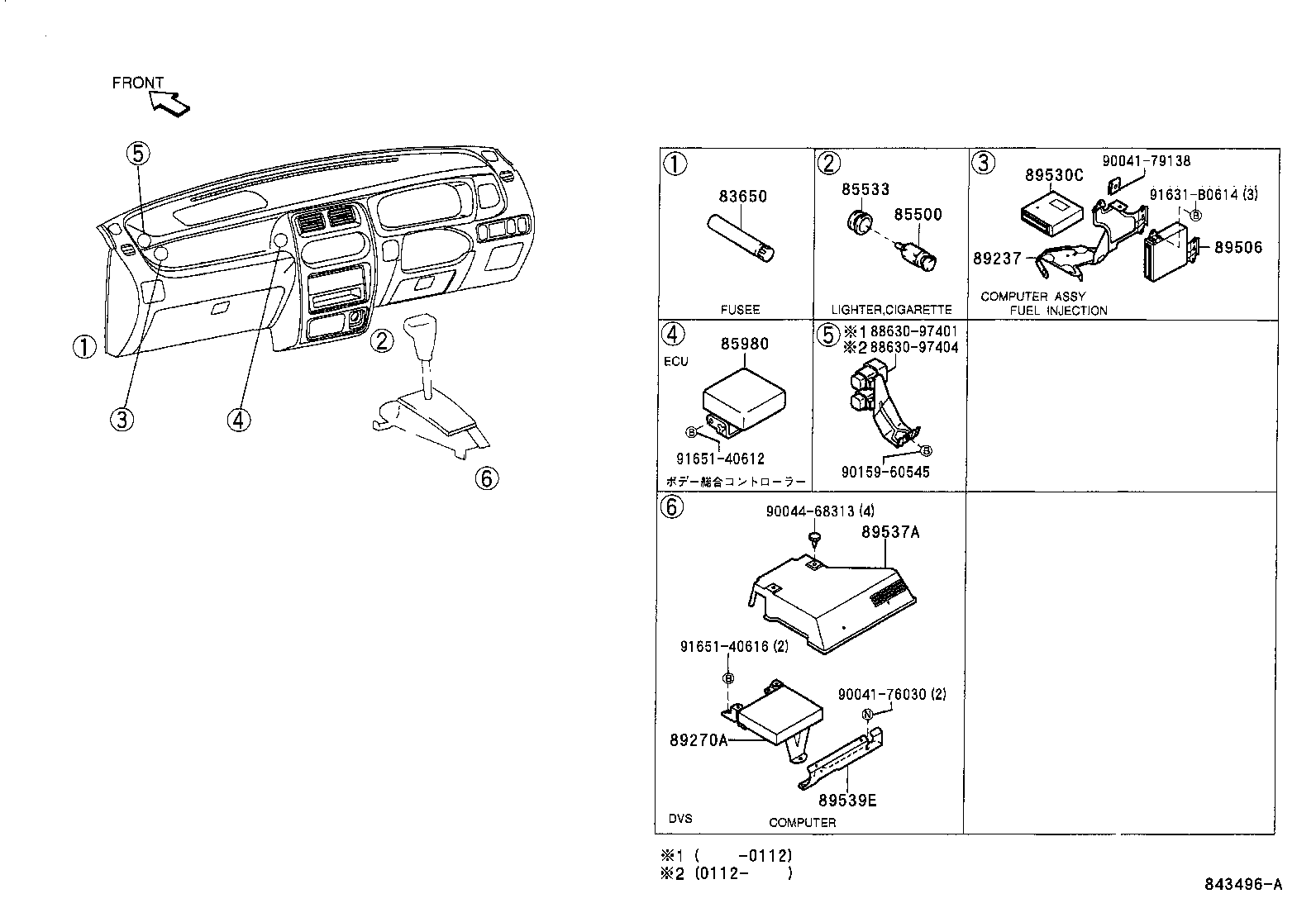

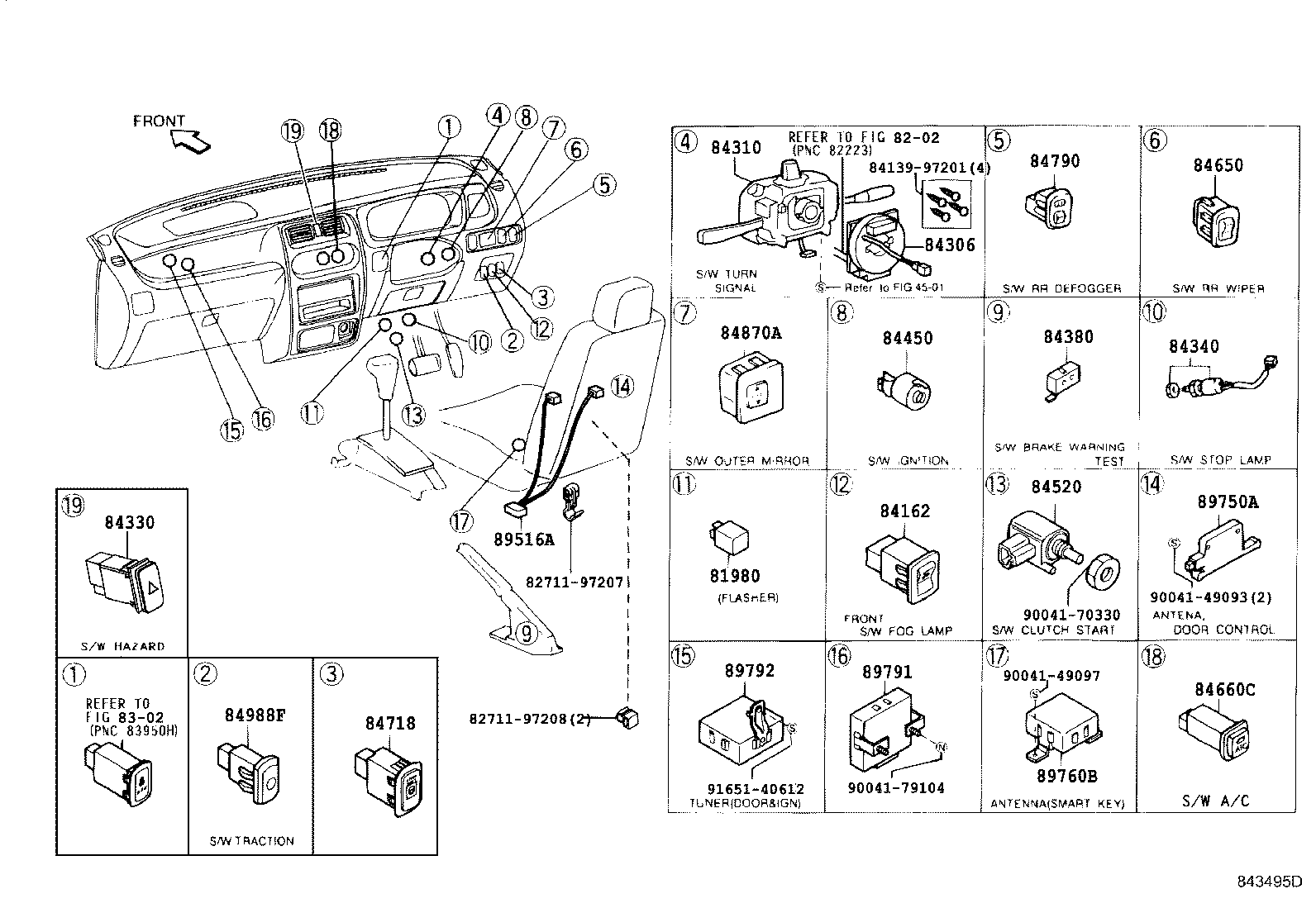

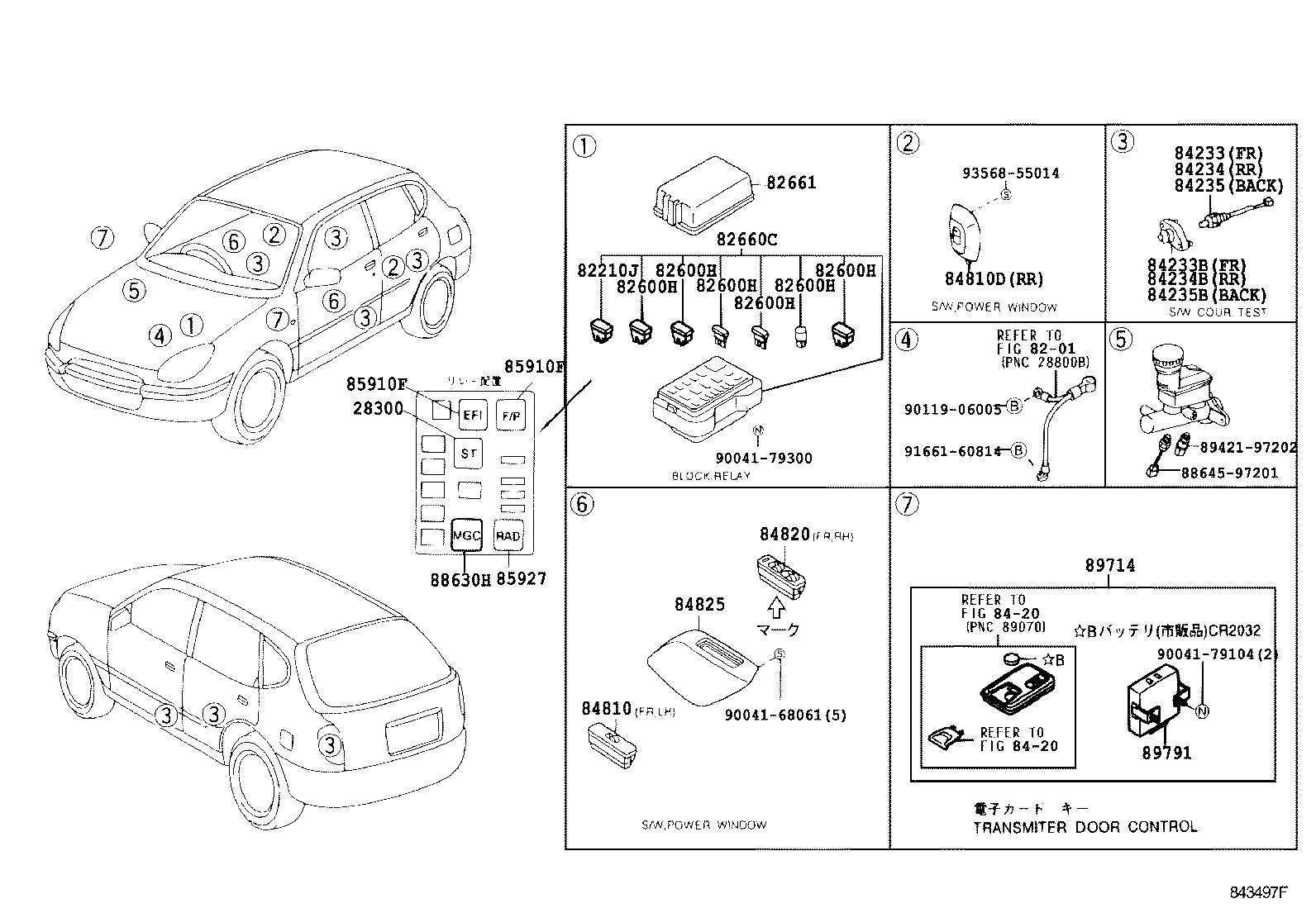

Figure 842463M 842463M 1998-09 → — Figure 842464E 842464E 1998-09 → 2000-05 Figure 843495D 843495D 2000-05 → — Figure 842465A 842465A 1998-09 → 2000-05 Figure 843496A 843496A 2000-05 → — Figure 842466I 842466I 1998-09 → 2000-05 Figure 843497F 843497F 2000-05 → 2001-12 Figure 844654C 844654C 2001-12 → —

Part groups

PNCDescription
13830B Valve Assy, Oil Control
28300 Relay Assy, Starter
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600H Fuse, Fuse Block
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84210B Gasket, Back-up Lamp Switch
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B Cushion, Courtesy Switch (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84235B Cushion, Courtesy Switch(FOR BACK DOOR)
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84718 Switch, Transmission Shift Main
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84825 Case, Power Window Switch
84870A Switch Assy, Outer Mirror
84988F Switch, Traction Control
85500 Lighter Assy, Cigarette
85533 Lens, Cigarette Lighter Indicator
85910F Relay, Computer (FOR EFI)
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85980 Relay Assy, Door Control
88630H Relay Assy, Cooler
89237 Bracket, Computer Unit
89270A Computer Assy, Dvs
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89439 Bracket, Sensor
89465 Sensor, Oxygen
89506 Computer Set, Fuel Injection
89516A Wire, Antenna
89530C Computer Assy, Transmission Control
89537A Cover, Computer
89539E Bracket, Computer
89615 Sensor, Knock Control
89714 Computer Set, Smart Entry Key
89750A Antenna Assy, Door Lock Control
89760B Antenna Assy, Ignition Lock Control
89791 Computer, Door & Ignition Lock Control
89792 Tuner, Door & Ignition Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
