Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Short Block Assembly

1 part groups · 2 illustrations

Illustrations

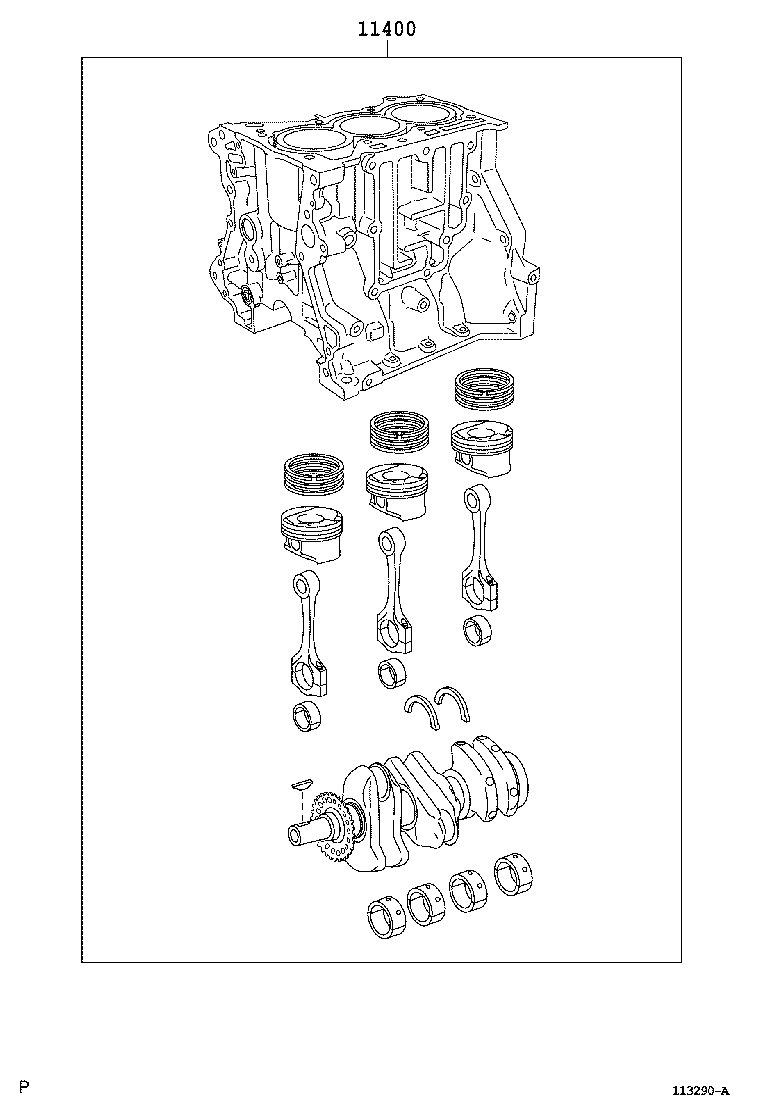

Figure 113289A 113289A 2004-05 → 2010-02 Figure 113290A 113290A 2004-05 → 2010-02

Part groups

PNCDescription
11400 Block Assy, Short
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
