Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

15 part groups · 3 illustrations

Illustrations

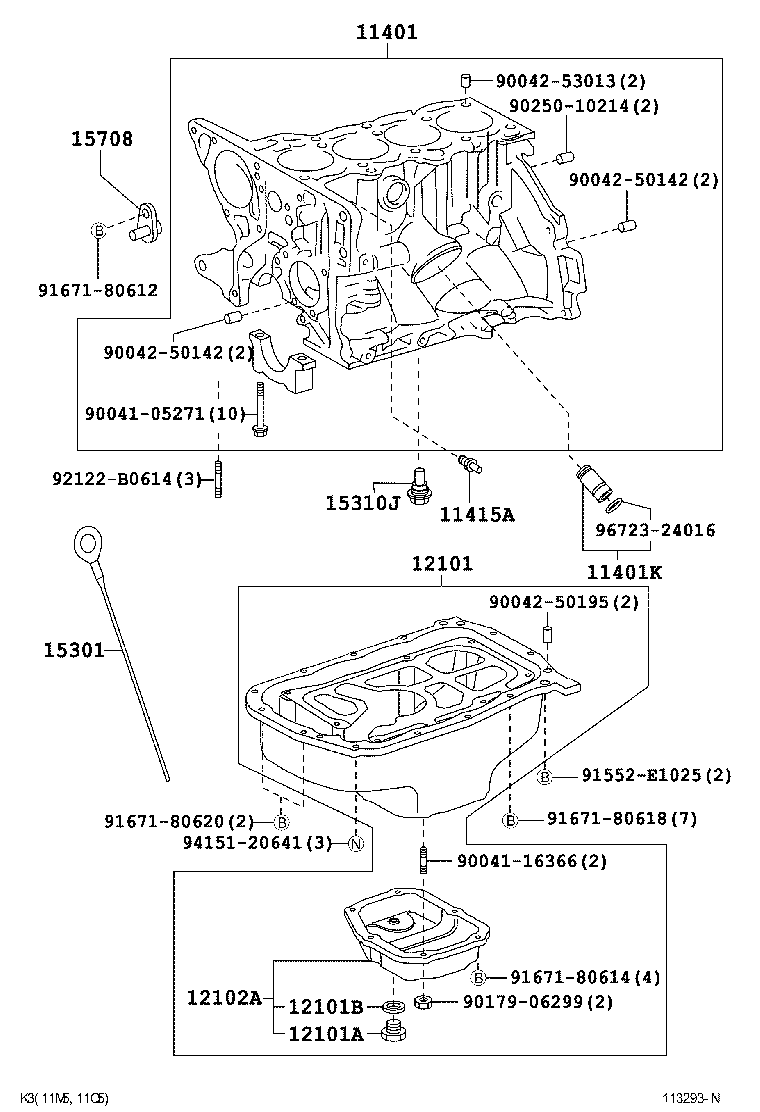

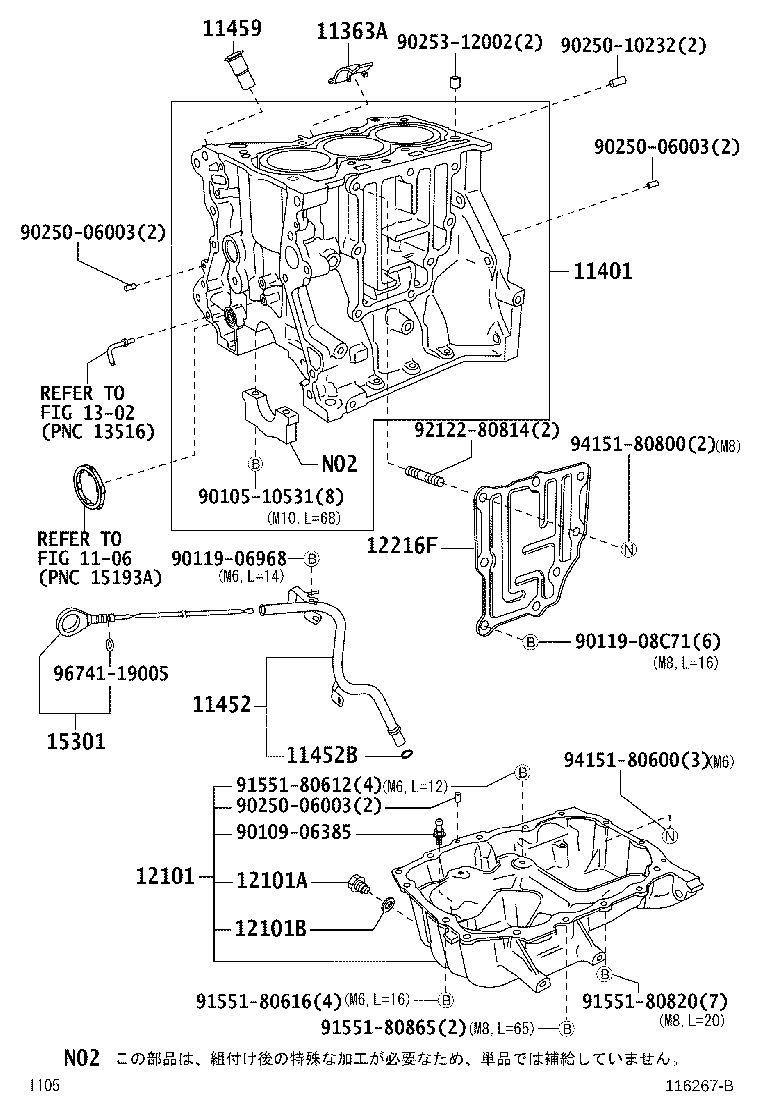

Figure 113294I 113294I 2004-05 → 2009-08 Figure 116267B 116267B 2009-08 → 2010-02 Figure 113293N 113293N 2004-05 → 2010-02

Part groups

PNCDescription
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401K Union(FOR OIL FILTER BRACKET)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12216F Plate, Ventilation Baffle
15301 Gage Sub-assy, Oil Level
15310J Regulator Assy, Oil
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
