Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

12 part groups · 3 illustrations

Illustrations

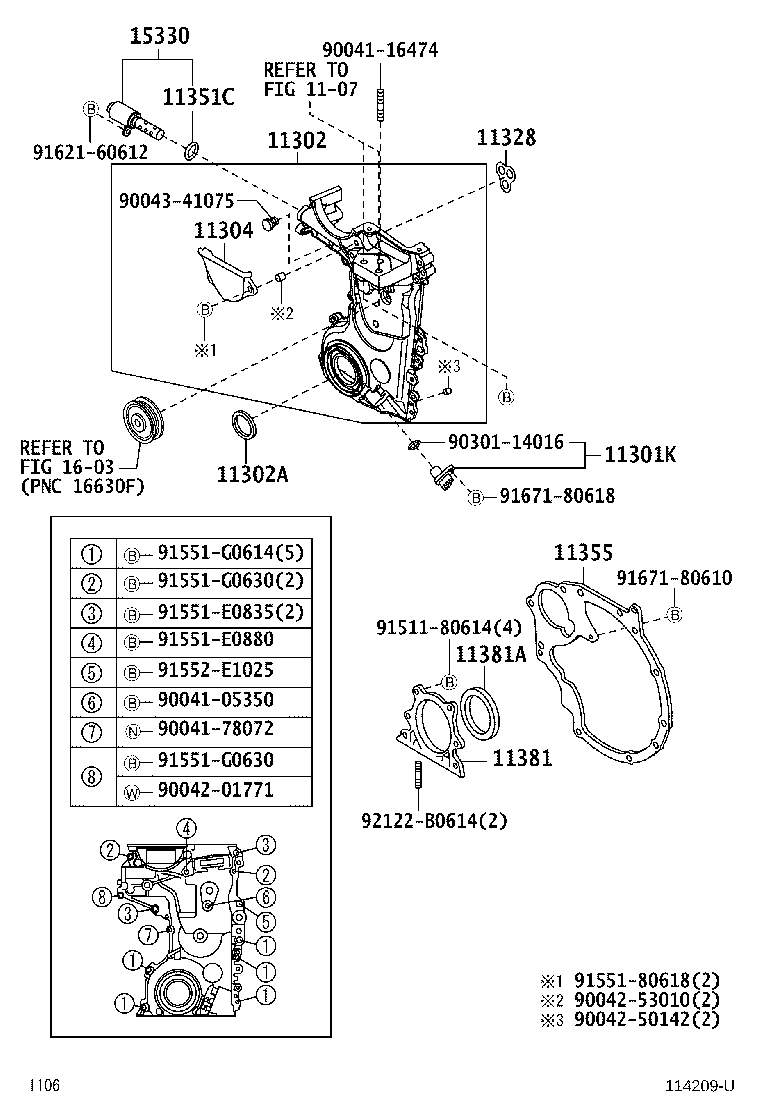

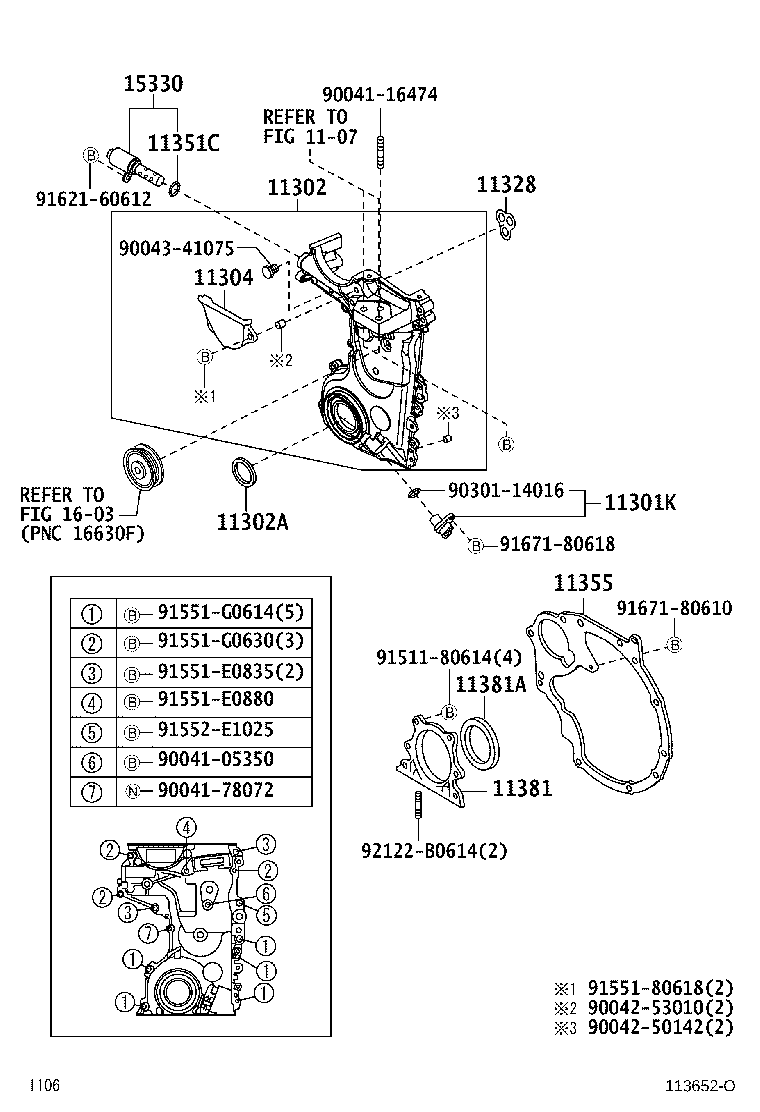

Figure 113295U 113295U 2004-05 → 2010-02 Figure 113652O 113652O 2004-05 → 2005-12 Figure 114209U 114209U 2005-12 → 2010-02

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11351C Ring, O
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15193A Gasket, Oil Pump
15330 Valve Assy, Cam Timing Oil Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
