Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 4 illustrations

Illustrations

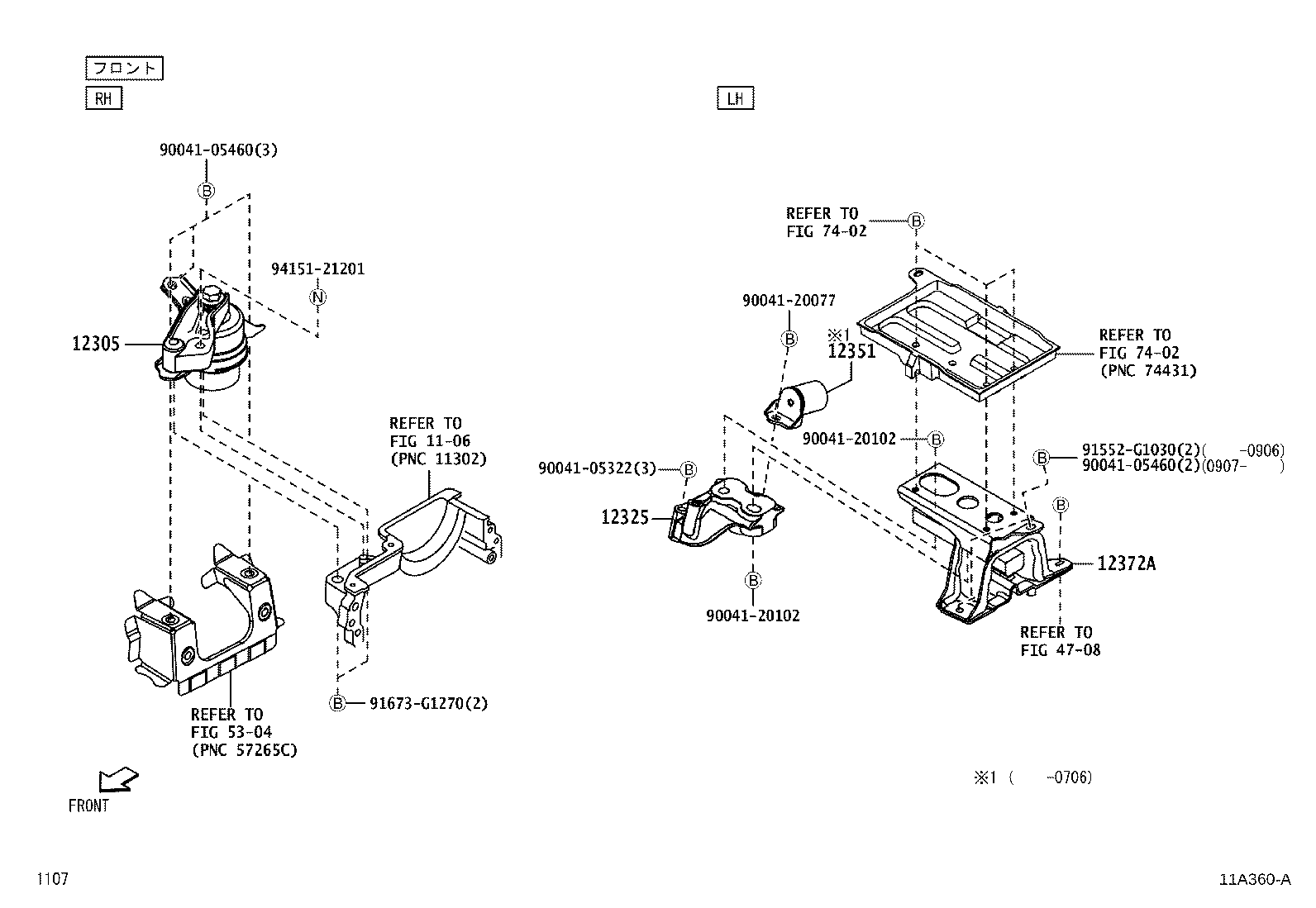

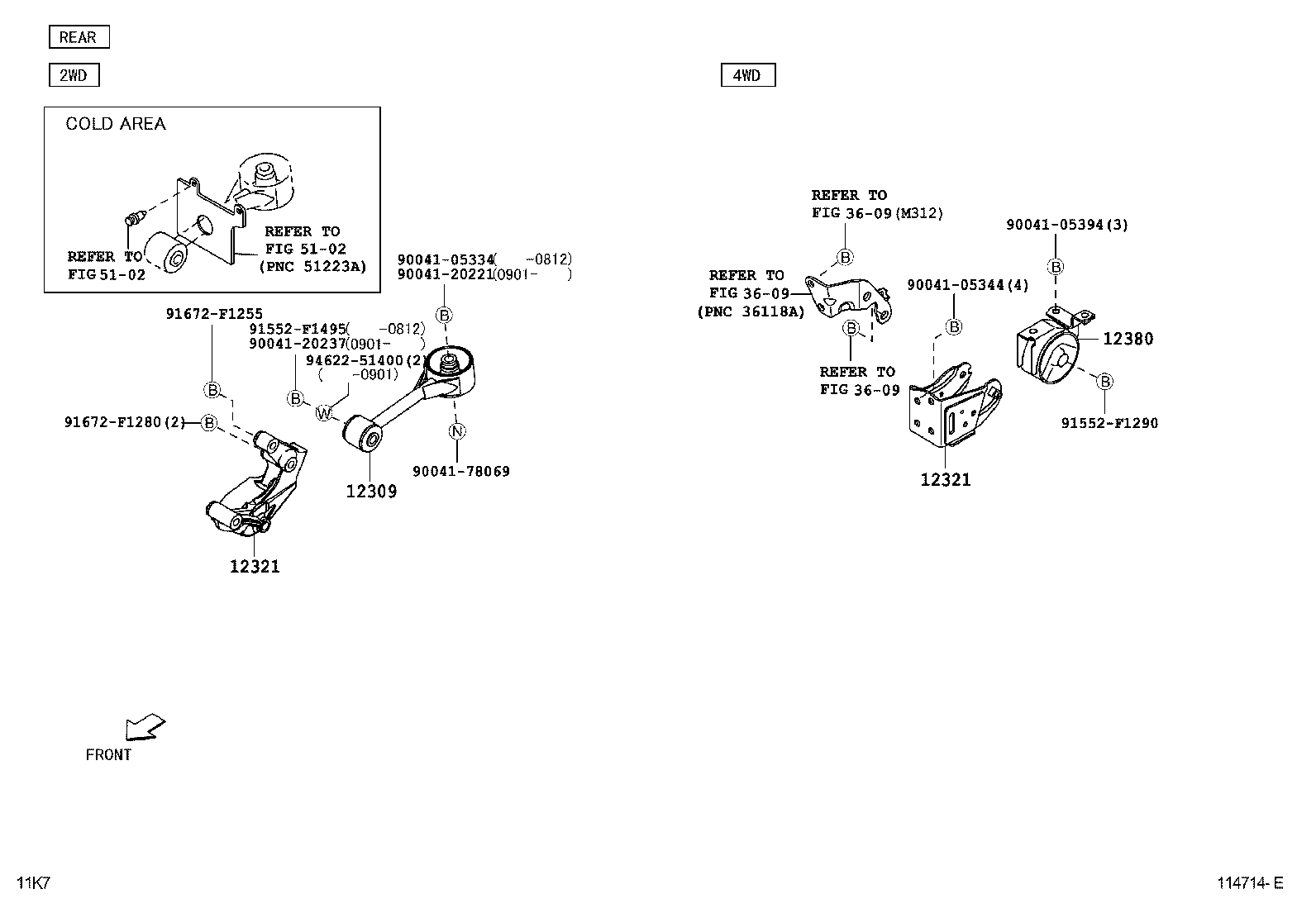

Figure 113297R 113297R 2004-05 → 2010-02 Figure 114714E 114714E 2004-05 → 2010-02 Figure 11A360A 11A360A 2004-05 → 2010-02 Figure 113298Z 113298Z 2004-05 → 2010-02

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12309 Rod Sub-assy, Engine Moving Control
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12351 Damper, Engine Mounting
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12380 Insulator Assy, Engine Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
