Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

14 part groups · 2 illustrations

Illustrations

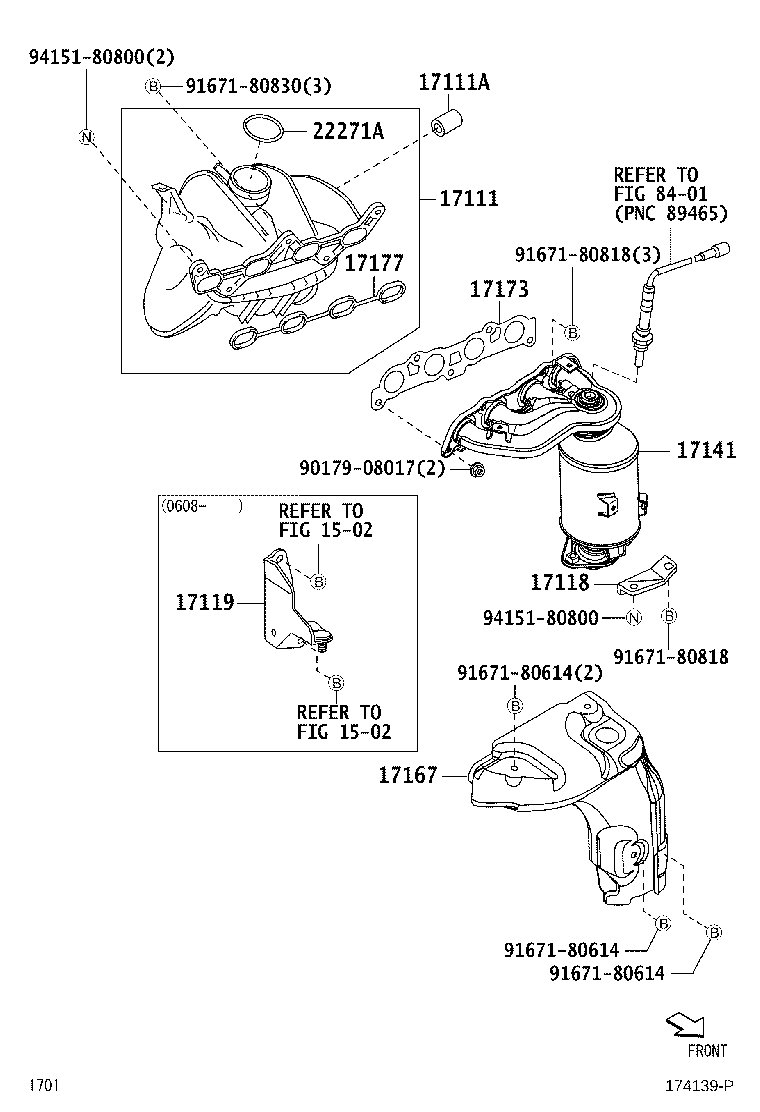

Figure 174138O 174138O 2004-05 → 2010-02 Figure 174139P 174139P 2004-05 → 2010-02

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
